RJ50 10P10C Breakout Board with Connection Terminals

BRKG10P10CSJ-R-DIN

BRKG10P10CSJ-R-DIN
(click image to enlarge)
BRKG10P10CSJ-R-DIN
BRKG10P10CSJ-R-N
BRKG10P10CSJ-R-N (Overhead View)
  • Shielded RJ50/10P10C Jack
  • Quick connection spring cage terminal blocks for all 10 pins and shield
  • Solder pad connection space / test points for all 10 lines and shield
  • Supports addition of 0.1" pin headers
  • DIN rail mountable
See Also: More Breakout Boards,   RJ50 Breakout Board with Screw Terminals,   RJ50 4-Way Buss Breakout Board,   RJ50 Cables,   RJ50 Couplers


General Description

Make connections quickly and reliably with this breakout board, which brings every pin of its 10P10C / RJ50 shielded modular jack connector out to spring terminals.

Each pin, including shield, is also brought to solder pads (1 per pin) at 0.1" spacing, allowing easy addition of pin headers or other components. Please note that the breakout boards are manufactured with a connection between each connector pin and the corresponding terminal block position; no soldering of any type is necessary. The solder pads simply provide an area for making optional connections to additional headers or other components.

Spring Terminal Animation

This breakout board features push-in spring connection terminal blocks. These screwless spring clamp terminal blocks allow connections to be made very quickly and efficiently. The spring terminal connections are reliable and secure, but wires can be connected and disconnected in a fraction of the time required with standard screw terminal blocks. Simply depress the actuator button on top of the terminal block, insert or remove the wire, and release the button. Done! In addition, screwless spring connections can offer better results in environments where vibration could potentially loosen standard screw terminal block connections. If your application requires screw terminals rather than spring terminals, please consider the BRK10P10CSJ design or the other 10P10C options listed here.

This breakout board is perfect for production applications as well as experimentation and prototype work. It is well-suited for work with serial ports, sensors, data acquisition equipment, RS-232 devices, and other devices that use RJ50/10P10C connectors.

The '10P10C' designation on the modular jack stands for '10-Position, 10-Conductor', which is compatible with RJ50 connectors.

Need something different? We stock a variety of RJ50/10P10C breakout board styles and form factors. Please have a look!

A breakout board is sometimes referred to as a "transition module", "terminal board", "terminal block", "breakout box", "breakout adapter", "terminator", or "interface module".

Product Documents

Part #DescriptionPDF DrawingDWG DrawingIGES ModelSTEP Model
BRKG10P10CSJ-R-DINRJ50 Right Angle, DIN MountPDF DWG IGES CAD
BRKG10P10CSJ-R-NRJ50 Right Angle, Mounting HolesPDF DWG IGES CAD
BRKG10P10CSJ-R-DIN

RJ50 Right Angle, DIN Mount

PDF DWG IGES CAD
BRKG10P10CSJ-R-N

RJ50 Right Angle, Mounting Holes

PDF DWG IGES CAD

Mounting Options

These products are available in two different mounting variants. Product numbers ending with -DIN come with DIN clips already installed and ready to snap onto 35mm or 32mm DIN rail. Product numbers ending with -N have no mounting hardware included; they can be easily panel-mounted by using 1/4" nylon standoffs under the mounting holes, and #6 screws.

BRKG10P10C-R-DIN
DIN Rail Mount

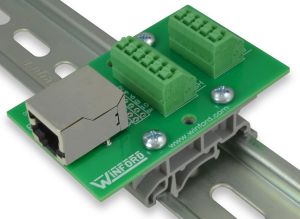

BRKG10P10CSJ-R-DIN
EnlargeClick image to enlarge.
Rail not included
BRKG10P10CSJ-R-N
No Mounting Hardware

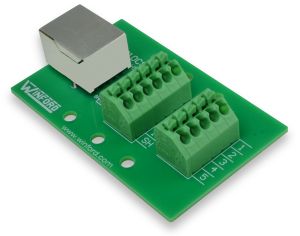

BRKG10P10CSJ-R-N
EnlargeClick image to enlarge.

Product Details

  • Shielded RJ50/10P10C Jack
  • Quick connection spring cage terminal blocks for all 10 pins and shield
  • Supports addition of 0.1" pin headers
  • Spring terminals accommodate wire sizes from 16AWG to 24AWG
  • Approximate dimensions: 2.75" x 1.7"
  • DIN rail mountable

Pricing and Ordering

Product # Description 1+ 10+ RoHS Buy Now
Right Angle Connector:
BRKG10P10CSJ-R-DIN RJ50 10P10C Shielded Jack Breakout Board, R/A Connector, Screwless Push-In Spring Clamp Terminal Block, DIN Rail Mount $16.00 $15.25  Yes
BRKG10P10CSJ-R-N RJ50 10P10C Shielded Jack Breakout Board, R/A Connector, Screwless Push-In Spring Clamp Terminal Block $14.50 $13.75  Yes

Right Angle Connector:
BRKG10P10CSJ-R-DIN
RoHS   Yes
RJ50 10P10C Shielded Jack Breakout Board, R/A Connector, Screwless Push-In Spring Clamp Terminal Block, DIN Rail Mount
QuantityPrice
1+$16.00
10+$15.25
BRKG10P10CSJ-R-N
RoHS   Yes
RJ50 10P10C Shielded Jack Breakout Board, R/A Connector, Screwless Push-In Spring Clamp Terminal Block
QuantityPrice
1+$14.50
10+$13.75

All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
