DB104HD Breakout Board with Spring Terminals

BRKG104HDF-R-FT

BRKG104HDF-R-FT
(click image to enlarge)

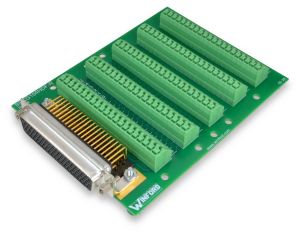

BRKG104HDF-R-FT
BRKG104HDF-R-FT (Overhead View)
BRKG104HDF-R-DIN
BRKG104HDM-R-FT
BRKG104HDM-R-FT (Overhead View)
BRKG104HDM-R-DIN
  • DB104HD connector
  • Perfect for DAQ and I/O board connections
  • Spring terminal for each of the 104 lines, plus shield
  • Rubber feet or DIN rail mount
See Also: More Breakout Boards


General Description

Make connections quickly and reliably with this breakout board, which brings every pin of its DB104HD connector out to spring terminals. This product is available with both male and female connectors.

Spring Terminal Animation

This breakout board features push-in spring connection terminal blocks. These screwless spring clamp terminal blocks allow connections to be made very quickly and efficiently. The spring terminal connections are reliable and secure, but wires can be connected and disconnected in a fraction of the time required with standard screw terminal blocks. Simply depress the actuator button on top of the terminal block, insert or remove the wire, and release the button. Done! In addition, screwless spring connections can offer better results in environments where vibration could potentially loosen standard screw terminal block connections.

This breakout board is perfect for production applications as well as experimentation and prototype work. It is helpful for working with I/O cards, Data Aquisition (DAQ) devices, and other devices that use a DB-104HD connector.

Technically, the correct term for a DB104HD connector is DF-104, but that term is not commonly used.

A breakout board is sometimes referred to as a "transition module", "terminal board", "terminal block", "breakout box", "breakout adapter", "terminator", or "interface module".

Product Documents

Part #DescriptionPDF DrawingDWG DrawingIGES ModelSTEP Model
BRKG104HDF-R-DINDB104HD Female, Right Angle, DIN MountPDF DWG IGES CAD
BRKG104HDF-R-FTDB104HD Female, Right Angle, Rubber FeetPDF DWG IGES CAD
BRKG104HDM-R-DINDB104HD Male, Right Angle, DIN MountPDF DWG IGES CAD
BRKG104HDM-R-FTDB104HD Male, Right Angle, Rubber FeetPDF DWG IGES CAD
-D-Sub Panel Cutout DrawingPDF DWG
BRKG104HDF-R-DIN

DB104HD Female, Right Angle, DIN Mount

PDF DWG IGES CAD
BRKG104HDF-R-FT

DB104HD Female, Right Angle, Rubber Feet

PDF DWG IGES CAD
BRKG104HDM-R-DIN

DB104HD Male, Right Angle, DIN Mount

PDF DWG IGES CAD
BRKG104HDM-R-FT

DB104HD Male, Right Angle, Rubber Feet

PDF DWG IGES CAD
-

D-Sub Panel Cutout Drawing

PDF DWG

Mounting Options

These products are available in two different mounting variants. Product numbers ending with -DIN come with DIN clips already installed and ready to snap onto 35mm or 32mm DIN rail. Product numbers ending with -FT have stick-on rubber feet installed on the bottom side, allowing for benchtop use or panel mounting. For panel mounting, we suggest 1/4" nylon standoffs under the mounting holes, and #6 screws.

DIN Rail Mounting Option
DIN Rail Mount
EnlargeClick image to enlarge.
Rubber Feet Mounting Option
Rubber Feet
EnlargeClick image to enlarge.

Product Details

  • DB104HD (high density, five row) connector
  • Spring terminal for each of the 104 lines, plus shield
  • Spring terminals accommodate wire sizes from 16AWG to 24AWG
  • Approximate dimensions: 5.0" x 3.8"
  • Rubber feet or DIN rail mount

Pricing and Ordering

Product # Description 1+ 10+ 20+ RoHS Buy Now
DB104HD Female Right Angle Connector:
BRKG104HDF-R-DIN DSUB 104HD Female Breakout Board, R/A Connector, Push-In Spring Clamp Connection Terminal Block, DIN Rail Mount $390.55 $358.45 $337.05  Yes
BRKG104HDF-R-FT DSUB 104HD Female Breakout Board, R/A Connector, Push-In Spring Clamp Connection Terminal Block, Rubber Feet $390.55 $358.45 $337.05  Yes
DB104HD Male Right Angle Connector:
BRKG104HDM-R-DIN DSUB 104HD Male Breakout Board, R/A Connector, Push-In Spring Clamp Connection Terminal Block, DIN Rail Mount $347.75 $315.65 $315.65  Yes
BRKG104HDM-R-FT DSUB 104HD Male Breakout Board, R/A Connector, Push-In Spring Clamp Connection Terminal Block, Rubber Feet $347.75 $315.65 $315.65  Yes

DB104HD Female Right Angle Connector:
BRKG104HDF-R-DIN
RoHS   Yes
DSUB 104HD Female Breakout Board, R/A Connector, Push-In Spring Clamp Connection Terminal Block, DIN Rail Mount
QuantityPrice
1+$390.55
10+$358.45
20+$337.05
BRKG104HDF-R-FT
RoHS   Yes
DSUB 104HD Female Breakout Board, R/A Connector, Push-In Spring Clamp Connection Terminal Block, Rubber Feet
QuantityPrice
1+$390.55
10+$358.45
20+$337.05
DB104HD Male Right Angle Connector:
BRKG104HDM-R-DIN
RoHS   Yes
DSUB 104HD Male Breakout Board, R/A Connector, Push-In Spring Clamp Connection Terminal Block, DIN Rail Mount
QuantityPrice
1+$347.75
10+$315.65
20+$315.65
BRKG104HDM-R-FT
RoHS   Yes
DSUB 104HD Male Breakout Board, R/A Connector, Push-In Spring Clamp Connection Terminal Block, Rubber Feet
QuantityPrice
1+$347.75
10+$315.65
20+$315.65

All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
