DB-9 Breakout Board with Enclosure

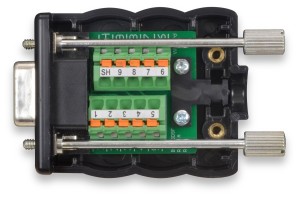

BRKEGD9F-T (Rev. A Overhead View)

BRKEGD9F-T (Rev. A Overhead View)
(click image to enlarge)
BRKEAD9F-R (Rev. A)
BRKEAD9F-T (Rev. A)
BRKEGD9F-R (Rev. A)
BRKEGD9F-T (Rev. A)
BRKEGD9F-T (Rev. A Overhead View)
BRKEGD9F-T (Rev. A Strain Relief View)
BRKEGD9F-T (Rev. A) (wires not included)
BRKEGD9F-T (Rev. A With Enclosure Cover in Place)
BRKEGD9F-T (Rev. A Thumbscrew End View)
BRKEGD9F-T (Rev. A End View)
BRKEGD9F-T (Rev. A Installation Example #1)
BRKEGD9F-T (Rev. A Installation Example #2)
BRKEAD9M-R (Rev. B)
BRKEAD9M-T (Rev. A)
BRKEAD9M-T (Rev. A Overhead View)
BRKEAD9M-T (Rev. A Bottom View)
BRKEGD9M-R (Rev. A)
BRKEGD9M-T (Rev. A)

  • Available with DB9 Male or Female connector
  • Comes mounted in an enclosure
  • Cost effective and reliable cable termination
  • Terminal for each of the 9 lines, plus shield
  • Available with spring terminals or screw terminals
  • Convenient strain relief feature for wires
  • No soldering or crimping required
  • Available with Jack Screws or Thumbscrews
See Also: More DB9 Breakout Boards,   DB9 Slim Breakout Boards,   DB9 Cables


General Description

Make connections quickly and reliably with this breakout board, which brings every pin of its DB9 connector out to screw or spring terminals. This breakout board comes mounted in an attractive case. It is available with either Thumbscrews or Jack Screws for connector hardware. See pricing table below for all part numbers. This product is available with both male and female connectors.

This breakout board is perfect for production applications as well as experimentation and prototype work. It is helpful for working with RS-232 serial ports, MODBUS connections, I/O cards, and other devices that use a DB-9 connector.

Technically, the correct term for a DB9 connector is DE9, but that term is not commonly used.

Need something different? We stock a variety of DB9 breakout board styles and form factors. Please have a look!

A breakout board is sometimes referred to as a "transition module", "terminal board", "terminal block", "breakout box", "breakout adapter", "terminator", or "interface module".

Enclosure

The breakout board comes already installed in a sturdy black plastic hood enclosure / shell with a removable cover. A hole in the end provides ample space for conductors to exit the enclosure, and a convenient strain-relief feature allows wires to be easily secured with a zip tie in just seconds. A curved channel guides the zip tie (included) around the wire bundle and back up for cinching.

Product Documents

Part #RevisionDescriptionPDF DrawingDWG DrawingIGES ModelSTEP Model
BRKEAD9F-RBDB9 Female, Screw Terminals, Jack ScrewsPDF DWG IGES CAD
BRKEAD9F-TBDB9 Female, Screw Terminals, Thumb ScrewsPDF DWG IGES CAD
BRKEAD9M-RBDB9 Male, Screw Terminals, Jack ScrewsPDF DWG IGES CAD
BRKEAD9M-TBDB9 Male, Screw Terminals, Thumb ScrewsPDF DWG IGES CAD
BRKEGD9F-RADB9 Female, Spring Terminals, Jack ScrewsPDF DWG IGES CAD
BRKEGD9F-RBDB9 Female, Spring Terminals, Jack ScrewsPDF DWG IGES CAD
BRKEGD9F-TBDB9 Female, Spring Terminals, Thumb ScrewsPDF DWG IGES CAD
BRKEGD9M-RADB9 Male, Spring Terminals, Jack ScrewsPDF DWG IGES CAD
BRKEGD9M-RBDB9 Male, Spring Terminals, Jack ScrewsPDF DWG IGES CAD
BRKEGD9M-TBDB9 Male, Spring Terminals, Thumb ScrewsPDF DWG IGES CAD
- D-Sub Panel Cutout DrawingPDF DWG
BRKEAD9F-R Revision: B

DB9 Female, Screw Terminals, Jack Screws

PDF DWG IGES CAD
BRKEAD9F-T Revision: B

DB9 Female, Screw Terminals, Thumb Screws

PDF DWG IGES CAD
BRKEAD9M-R Revision: B

DB9 Male, Screw Terminals, Jack Screws

PDF DWG IGES CAD
BRKEAD9M-T Revision: B

DB9 Male, Screw Terminals, Thumb Screws

PDF DWG IGES CAD
BRKEGD9F-R Revision: A

DB9 Female, Spring Terminals, Jack Screws

PDF DWG IGES CAD
BRKEGD9F-R Revision: B

DB9 Female, Spring Terminals, Jack Screws

PDF DWG IGES CAD
BRKEGD9F-T Revision: B

DB9 Female, Spring Terminals, Thumb Screws

PDF DWG IGES CAD
BRKEGD9M-R Revision: A

DB9 Male, Spring Terminals, Jack Screws

PDF DWG IGES CAD
BRKEGD9M-R Revision: B

DB9 Male, Spring Terminals, Jack Screws

PDF DWG IGES CAD
BRKEGD9M-T Revision: B

DB9 Male, Spring Terminals, Thumb Screws

PDF DWG IGES CAD
-

D-Sub Panel Cutout Drawing

PDF DWG

Terminal Options

This product is available with two different wire terminal options:
  • Spring Terminal Animation
    Spring Terminals (BRKEGx): Spring terminals allow connections to be made very quickly and efficiently. Simply depress the actuator button on top of the terminal block, insert or remove the wire, and release the button. In addition, screwless spring connections can be attractive in environments where vibration could potentially loosen connections.
  • Screw Terminals (BRKEAx): Each connection is made by turning a screw to tighten the wire in a terminal cage clamp.
    Spring Terminals
    Spring Terminals
    EnlargeClick image to enlarge.
    Screw Terminals
    Screw Terminals
    EnlargeClick image to enlarge.

Hardware Options

This product is available in two different connector hardware options:
  • Thumbscrews (-T option): These work well for attaching the product directly to a piece of equipment; the male threads on the thumbscrews directly engage the female threads on the equipment.
  • Jack Screws (-R option): These provide female threads on the product and work well when attaching the product to a cable, which typically has male thread thumbscrews.
    Thumbscrews (-T option)
    Thumbscrews (-T option)
    EnlargeClick image to enlarge.
    Jack Screws (-R option)
    Jack Screws (-R option)
    EnlargeClick image to enlarge.

Product Details

  • Comes mounted in an enclosure
  • Cost effective and reliable cable termination
  • DB9 connector
  • Terminal for each of the 9 lines, plus shield
  • Available with spring terminals or screw terminals
  • Terminals accommodate wire sizes from 16AWG to 24AWG
  • Convenient strain relief feature for wires
  • Connection points are labeled with pin numbers
  • No soldering or crimping required
  • Available with Jack Screws or Thumbscrews

Product Revisions

Revision B of these boards introduce a few minor changes, which are not expected to impact the user:
  • Enclosure base no longer has a thin bar that extends across the enclosure above the DB9. Instead, the top cover extends further to cover above the DB9. When the base and cover are assembled, the overall shape is essentially the same as before.
  • The PCB is attached to the enclosure with plastic snap rivets instead of screws. As before, the PCB is still pre-installed into the enclosure during our production process.
  • The T-shaped tie-down point for zip-tieing wires is now provided by an extension of the PCB, rather than a separate plastic piece.
  • The hole for wires to exit the back has been made larger: Rev A: 0.375" diameter circle, Rev B: 0.50" wide x 0.435" tall
  • Very slight outside enclosure dimension changes: Rev A: 2.034"x1.663"x0.856", Rev B: 2.05"x1.665"x0.856"

Currently Shipping Revision:

  • Rev A: BRKEGD9F-R, BRKEGD9M-R
  • Rev B: BRKEAD9F-R, BRKEAD9F-T, BRKEAD9M-R, BRKEAD9M-T, BRKEGD9F-T, BRKEGD9M-T

Note: We are regularly updating this list, but during the transition, you may receive Rev B products (or both Rev A and Rev B) prior to the list being updated. If you need to confirm which revision you will receive, please contact us.

Screwdrivers Need a quality screwdriver for your breakout boards? Winford sells Wiha screwdrivers!

Pricing and Ordering

Product # Description 1+ 10+ 50+ RoHS Buy Now
DB9 Female Connector, Screw Terminals:
BRKEAD9F-R DB9 Female Breakout Board with Enclosure, Screw Terminals, Jack Screws $14.45 $13.65 $13.55  Yes
BRKEAD9F-T DB9 Female Breakout Board with Enclosure, Screw Terminals, Thumb Screws $16.60 $15.80 $15.70  Yes
DB9 Female Connector, Spring Terminals:
BRKEGD9F-R DB9 Female Breakout Board with Enclosure, Spring Terminals, Jack Screws $14.45 $13.65 $13.55  Yes
BRKEGD9F-T DB9 Female Breakout Board with Enclosure, Spring Terminals, Thumb Screws $16.60 $15.80 $15.70  Yes
DB9 Male Connector, Screw Terminals:
BRKEAD9M-R DB9 Male Breakout Board with Enclosure, Screw Terminals, Jack Screws $14.45 $13.65 $13.55  Yes
BRKEAD9M-T DB9 Male Breakout Board with Enclosure, Screw Terminals, Thumb Screws $16.60 $15.80 $15.70  Yes
DB9 Male Connector, Spring Terminals:
BRKEGD9M-R DB9 Male Breakout Board with Enclosure, Spring Terminals, Jack Screws $14.45 $13.65 $13.55  Yes
BRKEGD9M-T DB9 Male Breakout Board with Enclosure, Spring Terminals, Thumb Screws $16.60 $15.80 $15.70  Yes

DB9 Female Connector, Screw Terminals:
BRKEAD9F-R
RoHS   Yes
DB9 Female Breakout Board with Enclosure, Screw Terminals, Jack Screws
QuantityPrice
1+$14.45
10+$13.65
50+$13.55
BRKEAD9F-T
RoHS   Yes
DB9 Female Breakout Board with Enclosure, Screw Terminals, Thumb Screws
QuantityPrice
1+$16.60
10+$15.80
50+$15.70
DB9 Female Connector, Spring Terminals:
BRKEGD9F-R
RoHS   Yes
DB9 Female Breakout Board with Enclosure, Spring Terminals, Jack Screws
QuantityPrice
1+$14.45
10+$13.65
50+$13.55
BRKEGD9F-T
RoHS   Yes
DB9 Female Breakout Board with Enclosure, Spring Terminals, Thumb Screws
QuantityPrice
1+$16.60
10+$15.80
50+$15.70
DB9 Male Connector, Screw Terminals:
BRKEAD9M-R
RoHS   Yes
DB9 Male Breakout Board with Enclosure, Screw Terminals, Jack Screws
QuantityPrice
1+$14.45
10+$13.65
50+$13.55
BRKEAD9M-T
RoHS   Yes
DB9 Male Breakout Board with Enclosure, Screw Terminals, Thumb Screws
QuantityPrice
1+$16.60
10+$15.80
50+$15.70
DB9 Male Connector, Spring Terminals:
BRKEGD9M-R
RoHS   Yes
DB9 Male Breakout Board with Enclosure, Spring Terminals, Jack Screws
QuantityPrice
1+$14.45
10+$13.65
50+$13.55
BRKEGD9M-T
RoHS   Yes
DB9 Male Breakout Board with Enclosure, Spring Terminals, Thumb Screws
QuantityPrice
1+$16.60
10+$15.80
50+$15.70

All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.

Accessories

Cable Ties

Cable Ties Use these cable ties for anchoring wires to a variety of Winford breakout boards; provides good strain relief for the wire connections.
