DB37 Breakout Board with Enclosure

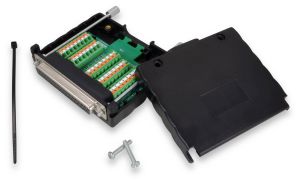

BRKEGD37F-T

BRKEGD37F-T
(click image to enlarge)
BRKEGD37F-T
BRKEGD37F-T (View of Strain Relief)
BRKEGD37F-T (Overhead View)
BRKEGD37F-T (View of Connector)
BRKEGD37F-T (Wire Entry View)

  • Available with DB37 Male or Female connector
  • Comes mounted in an enclosure
  • Cost effective and reliable cable termination
  • Terminal for each of the 37 lines, plus shield
  • Available with spring terminals
  • Convenient strain relief feature for wires
  • No soldering or crimping required
  • Available with Jack Screws or Thumbscrews
See Also: More Breakout Boards with Enclosures,   More DB37 Breakout Boards,   DB37 Cables


General Description

These breakout boards come mounted in an attractive case, and they bring all 37 pins plus shield of a DB37 connector out to spring terminal blocks for easy connection. They are available with either Thumbscrews or Jack Screws for connector hardware, and Spring Terminals for wire connections. See Pricing table below for all part numbers.

This breakout board is perfect for production applications as well as experimentation and prototype work. They are well-suited for interfacing with data acquisition equipment or any other devices that use a DB37 connector. A breakout board is sometimes referred to as a "transition module", "terminal board", "terminal block", "breakout box", "breakout adapter", "terminator", or "interface module".

Enclosure

The breakout board comes already installed in a sturdy black plastic hood enclosure with a removable cover. A hole in the end provides ample space for conductors to exit the enclosure, and a convenient strain-relief feature allows wires to be easily secured with a zip tie in just seconds. A curved channel guides the zip tie (included) around the wire bundle and back up for cinching.

Product Documents

Part #DescriptionPDF DrawingDWG DrawingIGES ModelSTEP Model
BRKEGD37F-RDB37 Female, Spring Terminals, Jack ScrewsPDF DWG IGES CAD
BRKEGD37F-TDB37 Female, Spring Terminals, Thumb ScrewsPDF DWG IGES CAD
BRKEGD37M-RDB37 Male, Spring Terminals, Jack ScrewsPDF DWG IGES CAD
BRKEGD37M-TDB37 Male, Spring Terminals, Thumb ScrewsPDF DWG IGES CAD
BRKEGD37F-R

DB37 Female, Spring Terminals, Jack Screws

PDF DWG IGES CAD
BRKEGD37F-T

DB37 Female, Spring Terminals, Thumb Screws

PDF DWG IGES CAD
BRKEGD37M-R

DB37 Male, Spring Terminals, Jack Screws

PDF DWG IGES CAD
BRKEGD37M-T

DB37 Male, Spring Terminals, Thumb Screws

PDF DWG IGES CAD

Terminal Options

This product is available with spring terminals.

Spring Terminal Animation
Spring Terminals (BRKEGDx) allow connections to be made very quickly and efficiently. Simply depress the actuator button on top of the terminal block, insert or remove the wire, and release the button.
Spring Terminals
Spring Terminals
EnlargeClick image to enlarge.

Hardware Options

This product is available in two different connector hardware options:
  • Thumbscrews (-T option): These work well for attaching the product directly to a piece of equipment; the male threads on the thumbscrews directly engage the female threads on the equipment.
  • Jack Screws (-R option): These provide female threads on the product and work well when attaching the product to a cable, which typically has male thread thumbscrews.
    Thumbscrews (-T option)
    Thumbscrews (-T option)
    EnlargeClick image to enlarge.
    Jack Screws (-R option)
    Jack Screws (-R option)
    EnlargeClick image to enlarge.

Product Details

  • Available with DB37 Male or Female connector
  • Comes mounted in an enclosure
  • Cost effective and reliable cable termination
  • Terminal for each of the 37 lines, plus shield
  • Available with spring terminals
  • Terminals accomodate wire sizes from 16AWG to 24AWG
  • Convenient strain relief feature for wires
  • Connection points are labeled with pin numbers
  • No soldering or crimping required
  • Available with Jack Screws or Thumbscrews
  • Approximate dimensions: 3.5"L x 3.13"W x 0.88"H

Accessories

Cable Ties

 Cable Ties
- strain relief for Breakout Boards


Screwdrivers Need a quality screwdriver for your breakout boards? Winford sells Wiha screwdrivers!

Pricing and Ordering

Product # Description 1+ 10+ 50+ RoHS Buy Now
DB37 Female Connector, Spring Terminals:
BRKEGD37F-R DB37 Female Breakout Board with Enclosure, Spring Terminals, Jack Screws $35.00 $32.00 $31.00  Yes
BRKEGD37F-T DB37 Female Breakout Board with Enclosure, Spring Terminals, Thumb Screws $37.00 $34.00 $33.00  Yes
DB37 Male Connector, Spring Terminals:
BRKEGD37M-R DB37 Male Breakout Board with Enclosure, Spring Terminals, Jack Screws $35.00 $32.00 $31.00  Yes
BRKEGD37M-T DB37 Male Breakout Board with Enclosure, Spring Terminals, Thumb Screws $37.00 $34.00 $33.00  Yes

DB37 Female Connector, Spring Terminals:
BRKEGD37F-R
RoHS   Yes
DB37 Female Breakout Board with Enclosure, Spring Terminals, Jack Screws
QuantityPrice
1+$35.00
10+$32.00
50+$31.00
BRKEGD37F-T
RoHS   Yes
DB37 Female Breakout Board with Enclosure, Spring Terminals, Thumb Screws
QuantityPrice
1+$37.00
10+$34.00
50+$33.00
DB37 Male Connector, Spring Terminals:
BRKEGD37M-R
RoHS   Yes
DB37 Male Breakout Board with Enclosure, Spring Terminals, Jack Screws
QuantityPrice
1+$35.00
10+$32.00
50+$31.00
BRKEGD37M-T
RoHS   Yes
DB37 Male Breakout Board with Enclosure, Spring Terminals, Thumb Screws
QuantityPrice
1+$37.00
10+$34.00
50+$33.00

All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
