DB37 Extension Cables

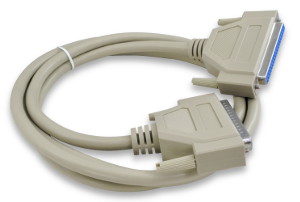

<b>EXT37-6</b> (Male to Female)

EXT37-6 (Male to Female)
(click image to enlarge)
<b>EXT37-6</b> (Male to Female)
Female Connector
Male Connector
  • DB37 connectors:
    DB37 connector
  • Variety of lengths available
  • Extends all 37 lines straight through
  • Available in Male-Female and Male-Male
See Also: Connectors,   DB37 Breakout Boards,   More Cables


General Description

These are extender cables for any device which uses a DB-37 connector. All 37 pins are extended, and the wiring is straight-through (pin 1 to pin 1, 2 to 2, ...) including a foil shield around the cable and connecting the shells. The wire gauge is 28AWG.

Cables are available with the following end connectors:

Product Details

  • Available in Male-Female and Male-Male
  • All pins wired 1:1 (e.g pin 1 to pin 1, pin 2 to pin 2, etc.)
  • 28 AWG conductors
  • Foil shielded

Pricing and Ordering

Product # Description 1+ 10+ RoHS Buy Now
Male-Female:
EXT37-3 DB37 Extension Cable, Male-Female, 3Ft $11.50 $10.50  Yes
EXT37-6 DB37 Extension Cable, Male-Female, 6Ft $13.00 $12.00  Yes
EXT37-10 DB37 Extension Cable, Male-Female, 10Ft $15.00 $14.00  Yes
Male-Male:
EXT37M-6 DB37 Extension Cable, Male-Male, 6Ft $13.00 $12.00  Yes

Male-Female:
EXT37-3
RoHS   Yes
DB37 Extension Cable, Male-Female, 3Ft
QuantityPrice
1+$11.50
10+$10.50
EXT37-6
RoHS   Yes
DB37 Extension Cable, Male-Female, 6Ft
QuantityPrice
1+$13.00
10+$12.00
EXT37-10
RoHS   Yes
DB37 Extension Cable, Male-Female, 10Ft
QuantityPrice
1+$15.00
10+$14.00
Male-Male:
EXT37M-6
RoHS   Yes
DB37 Extension Cable, Male-Male, 6Ft
QuantityPrice
1+$13.00
10+$12.00

All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
