RJ45 8P8C Breakout Board with Enclosure

BRKEA8PB-N

BRKEA8PB-N
(click image to enlarge)
BRKEA8PB-N (View of Connector)
BRKEA8PB-N (Wire Entry View)
BRKEA8PB-N (Overhead View)
BRKEA8PB-N (Strain Relief View)
BRKEA8PB-N

  • RJ45 / 8P8C Jack
  • Comes mounted in an enclosure
  • Cost effective and reliable cable termination
  • Terminal for each of the 8 lines, plus shield
  • Convenient strain relief feature for wires
  • No soldering or crimping required
See Also: RJ45 (8P8C) Cables,   More RJ45 (8P8C) Products,   More Breakouts with Enclosures


General Description

Make connections quickly and reliably with this breakout board, which brings every pin of its 8P8C modular jack connector out to screw terminals. This breakout board comes mounted in an attractive case. See pricing table below for all part numbers.

This breakout board is perfect for production applications as well as experimentation and prototype work. It is well-suited for work with serial ports, sensors, data acquisition equipment, RS-232 devices, MODBUS connections, and other devices that use RJ45/8P8C connectors.

The '8P8C' designation on the modular jack stands for '8-Position, 8-Conductor', which is compatible with RJ45 connectors.

Need something different? We stock a variety of RJ45/8P8C breakout board styles and form factors. Please have a look!

A breakout board is sometimes referred to as a "transition module", "terminal board", "terminal block", "breakout box", "breakout adapter", "terminator", or "interface module".

Enclosure

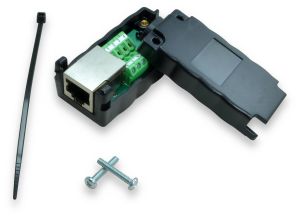

The breakout board comes already installed in a sturdy black plastic hood enclosure / shell with a removable cover. A hole in the end provides ample space for conductors to exit the enclosure, and a convenient strain-relief feature allows wires to be easily secured with a zip tie in just seconds. A curved channel guides the zip tie (included) around the wire bundle and back up for cinching.

Product Documents

Part #RevisionDescriptionPDF DrawingDWG DrawingIGES ModelSTEP ModelDocument
BRKEA8PB-NARJ45 Female, Screw TerminalsPDF DWG IGES CAD
Surface Mounting Instructions PDF
BRKEA8PB-N Revision: A

RJ45 Female, Screw Terminals

PDF DWG IGES CAD
Surface Mounting Instructions

PDF

Terminal Options

This product is currently available with screw terminals; spring terminals may also be offered at a future time.
  • Screw Terminals (BRKEAx): Each connection is made by turning a screw to tighten the wire in a terminal cage clamp.
    Screw Terminals
    Screw Terminals
    EnlargeClick image to enlarge.

Product Details

  • RJ45 / 8P8C Jack
  • Comes mounted in an enclosure
  • Cost effective and reliable cable termination
  • Terminal for each of the 8 lines, plus shield
  • Screw terminals accommodate wire sizes from 16AWG to 26AWG
  • Convenient strain relief feature for wires
  • Connection points are labeled with pin numbers
  • No soldering or crimping required

Screwdrivers Need a quality screwdriver for your breakout boards? Winford sells Wiha screwdrivers!

Pricing and Ordering

Product # Description 1+ 10+ 50+ RoHS Buy Now
RJ45 Female Connector, Screw Terminals:
BRKEA8PB-N RJ45 8P8C Shielded Jack Breakout Board with Enclosure, Screw Terminals $15.00 $14.20 $14.05  Yes

RJ45 Female Connector, Screw Terminals:
BRKEA8PB-N
RoHS   Yes
RJ45 8P8C Shielded Jack Breakout Board with Enclosure, Screw Terminals
QuantityPrice
1+$15.00
10+$14.20
50+$14.05

All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.

Accessories

Cable Ties

Cable Ties Use these cable ties for anchoring wires to a variety of Winford breakout boards; provides good strain relief for the wire connections.
