Make connections quickly and reliably with this breakout board, which brings every pin of its 26-pin Mini D Ribbon (MDR) Female connector out to screw terminals. Double-deck screw terminals efficiently utilize board area to provide a compact footprint.
Each pin, including shield, is also brought to solder pads (3 per pin) at 0.1" spacing, allowing easy addition of pin headers or other components. Please note that the breakout boards are manufactured with a connection between each connector pin and the corresponding terminal block position; no soldering of any type is necessary. The solder pads simply provide an area for making optional connections to additional headers or other components.
This breakout board is perfect for production applications as well as experimentation and prototype work. It is helpful for working with Data Aquisition (DAQ) equipment, I/O cards, Camera Link devices, and other devices that use a Mini D Ribbon connector.
We stock several MDR breakout board styles and form factors. Please have a look here.
A breakout board is sometimes referred to as a "transition module", "terminal board", "terminal block", "breakout box", "breakout adapter", "terminator", or "interface module".
The Mini Delta Ribbon (MDR) series of connectors provides a compact arrangement of durable sliding 'ribbon' contacts. The high contact density and good performance at high speeds have yielded many applications for this connector type. These are 'half-pitch' connectors, meaning that the contact spacing is tighter than full-size Centronics connectors, such as those used on our BRKDC36F or BRKDC50F breakout boards. The 'half-pitch' connectors utilize contacts on 0.05" centers.
Winford Engineering currently utilizes MDR connectors from 3M™ on these breakout boards; connector details are listed below.
|MDR Connector Details|
|Mfg. Part #||10226-55G3PC|
|Threaded Inserts||M2.5 thread|
|Jack Sockets||Not Included; available as 3M accessories|
|Part #||Description||PDF Drawing||DWG Drawing||IGES Model||STEP Model||Document|

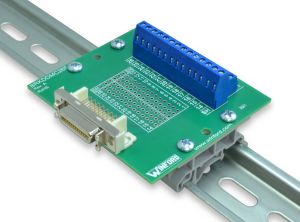

|BRKDDMC26F-R-DIN||26-Pin MDR Female Breakout Board, DIN Mount|

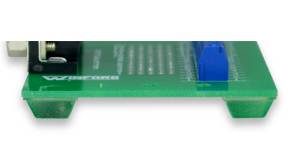

|BRKDDMC26F-R-FT||26-Pin MDR Female Breakout Board, Rubber Feet|
|Connector Guide||Which connector do I have? Consult this helpful identification guide.|
|Need a quality screwdriver for your breakout boards? Winford sells Wiha screwdrivers!|
Pricing and Ordering
|Product #||Description||1+||10+||RoHS||Buy Now|
Mini D Ribbon 26-Pin Right Angle Connector:
|BRKDDMC26F-R-DIN||Mini Centronics/MDR 26-Pin Female Breakout Board, R/A Connector, DIN Rail Mount||$36.40||$33.95||Yes|
|BRKDDMC26F-R-FT||Mini Centronics/MDR 26-Pin Female Breakout Board, R/A Connector, Feet||$34.80||$32.35||Yes|
All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
