DB37 Dual Breakout Boards

BRKDD37MFV1-S-DIN

BRKDD37MFV1-S-DIN
(click image to enlarge)
BRKDD37MFV1-S-DIN
BRKDD37MFV1-S-FT
  • Both DB37 Male and Female connectors
  • Easily insert inline, for tapping into I/O signals
  • Screw terminal for each of the 37 lines, plus shield
  • Solder pad connection space for all 37 lines, plus shield
  • Supports addition of .1" pin headers
  • Rubber feet or DIN rail mount
See Also: More DB37 Breakout Boards,   DB37 Cables


General Description

Make connections quickly and reliably with this breakout board, which brings every pin of its DB37 connectors out to screw terminals.

These breakout boards feature two DB37 connectors (one male, one female) wired 1:1, with all pins connected to screw terminals for easy wiring connections. Having two connectors allows the board to be easily inserted "in-line" with an existing connection, allowing signals to pass through while being monitored, or to work with "daisy-chained" equipment. Double-deck screw terminals efficiently utilize board area to provide a compact footprint.

Each pin, including shield, is also brought to solder pads (3 per pin) at 0.1" spacing, allowing easy addition of pin headers or other components. Please note that the breakout boards are manufactured with a connection between each connector pin and the corresponding terminal block position; no soldering of any type is necessary. The solder pads simply provide an area for making optional connections to additional headers or other components.

This breakout board is perfect for production applications as well as experimentation and prototype work. It is helpful for working with I/O cards, Data Aquisition (DAQ) devices, CNC equipment, and other devices that use a DB-37 connector.

Technically, the correct term for a DB37 connector is DC37, but that term is not commonly used.

Need something different? We stock a variety of DB37 breakout board styles and form factors. Please have a look!

A breakout board is sometimes referred to as a "transition module", "terminal board", "terminal block", "breakout box", "breakout adapter", "terminator", or "interface module".

Breakout boards with enclosures Need an enclosed breakout board? Winford offers our BRKE line of boards, which come installed in enclosures.

Product Documents

Part #DescriptionPDF DrawingDWG DrawingIGES ModelSTEP Model
BRKDD37MFV1-S-DINDB37 Dual Breakout Board, DIN MountPDF DWG IGES CAD
BRKDD37MFV1-S-FTDB37 Dual Breakout Board, Rubber FeetPDF DWG IGES CAD
-D-Sub Panel Cutout DrawingPDF DWG
BRKDD37MFV1-S-DIN

DB37 Dual Breakout Board, DIN Mount

PDF DWG IGES CAD
BRKDD37MFV1-S-FT

DB37 Dual Breakout Board, Rubber Feet

PDF DWG IGES CAD
-

D-Sub Panel Cutout Drawing

PDF DWG

Mounting Options

These products are available in two different mounting variants. Product numbers ending with -DIN come with DIN clips already installed and ready to snap onto 35mm or 32mm DIN rail. Product numbers ending with -FT have stick-on rubber feet installed on the bottom side, allowing for benchtop use or panel mounting. For panel mounting, we suggest 1/4" nylon standoffs under the mounting holes, and #6 screws.

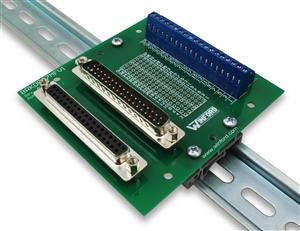

BRKDD37MFV1-S-DIN
DIN Rail Mount
BRKDD37MFV1-S-DIN
EnlargeClick image to enlarge.
Rail not included

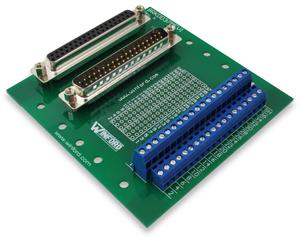

BRKDD37MFV1-S-FT
Rubber Feet
BRKDD37MFV1-S-FT
EnlargeClick image to enlarge.

Product Details

  • Male and Female connected in parallel with each other and screw terminals
  • Screw terminal for each of the 37 lines, plus shield
  • Solder pad connection holes, three (3) per line
  • Supports addition of .1" pin headers
  • Screw terminals accommodate wire sizes from 16AWG to 26AWG
  • Approximate dimensions: 3.9" x 3.76"
  • Rubber feet or DIN rail mount

Pricing and Ordering

Product # Description 1+ 10+ RoHS Buy Now
BRKDD37MFV1-S-DIN DB37 Dual Breakout Board, Male-Female, Straight Connectors, DIN Rail Mount $44.40 $40.15  Yes
BRKDD37MFV1-S-FT DB37 Dual Breakout Board, Male-Female, Straight Connectors, Feet $42.80 $38.50  Yes

BRKDD37MFV1-S-DIN
RoHS   Yes
DB37 Dual Breakout Board, Male-Female, Straight Connectors, DIN Rail Mount
QuantityPrice
1+$44.40
10+$40.15
BRKDD37MFV1-S-FT
RoHS   Yes
DB37 Dual Breakout Board, Male-Female, Straight Connectors, Feet
QuantityPrice
1+$42.80
10+$38.50

All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
