DB37 Compact Breakout Board, Double Deck Terminals

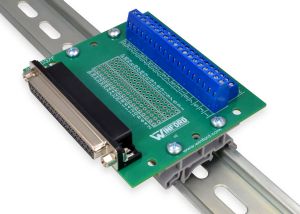

BRKDD37F-R-DIN

BRKDD37F-R-DIN
(click image to enlarge)
BRKDD37F-R-DIN
BRKDD37F-R-FT
BRKDD37F-R-FT (Overhead View)
BRKDD37M-R-DIN
BRKDD37M-R-FT
BRKDD37M-R-FT (Overhead View)
  • Available with DB37 Male or Female connector
  • Double decker screw terminals provide compact footprint
  • Screw terminal for each of the 37 lines, plus shield
  • Solder pad connection space for all 37 lines, plus shield
  • Supports addition of 0.1" pin headers
  • Rubber feet or DIN rail mount
See Also: More DB37 Breakout Boards,   DB37 Cables


General Description

Make connections quickly and reliably with this breakout board, which brings every pin of its DB37 connector out to screw terminals. This product is available with both male and female connectors. Double-deck screw terminals efficiently utilize board area to provide a compact footprint.

Each pin, including shield, is also brought to solder pads (3 per pin) at 0.1" spacing, allowing easy addition of pin headers or other components. Please note that the breakout boards are manufactured with a connection between each connector pin and the corresponding terminal block position; no soldering of any type is necessary. The solder pads simply provide an area for making optional connections to additional headers or other components.

This breakout board is perfect for production applications as well as experimentation and prototype work. It is helpful for working with I/O cards, Data Aquisition (DAQ) devices, CNC equipment, and other devices that use a DB-37 connector.

Technically, the correct term for a DB37 connector is DC37, but that term is not commonly used.

Need something different? We stock a variety of DB37 breakout board styles and form factors. Please have a look!

A breakout board is sometimes referred to as a "transition module", "terminal board", "terminal block", "breakout box", "breakout adapter", "terminator", or "interface module".

Breakout boards with enclosures Need an enclosed breakout board? Winford offers our BRKE line of boards, which come installed in enclosures.

Product Documents

Part #DescriptionPDF DrawingDWG DrawingIGES ModelSTEP Model
BRKDD37F-R-DIN Rev ADB37 Female, Right Angle, DIN MountPDF DWG IGES CAD
BRKDD37F-R-FT Rev ADB37 Female, Right Angle, Rubber FeetPDF DWG IGES CAD
BRKDD37M-R-DIN Rev ADB37 Male, Right Angle, DIN MountPDF DWG IGES CAD
BRKDD37M-R-FT Rev ADB37 Male, Right Angle, Rubber FeetPDF DWG IGES CAD
-D-Sub Panel Cutout DrawingPDF DWG
BRKDD37F-R-DIN Rev A

DB37 Female, Right Angle, DIN Mount

PDF DWG IGES CAD
BRKDD37F-R-FT Rev A

DB37 Female, Right Angle, Rubber Feet

PDF DWG IGES CAD
BRKDD37M-R-DIN Rev A

DB37 Male, Right Angle, DIN Mount

PDF DWG IGES CAD
BRKDD37M-R-FT Rev A

DB37 Male, Right Angle, Rubber Feet

PDF DWG IGES CAD
-

D-Sub Panel Cutout Drawing

PDF DWG

Mounting Options

These products are available in two different mounting variants. Product numbers ending with -DIN come with DIN clips already installed and ready to snap onto 35mm or 32mm DIN rail. Product numbers ending with -FT have stick-on rubber feet installed on the bottom side, allowing for benchtop use or panel mounting. For panel mounting, we suggest 1/4" nylon standoffs under the mounting holes, and #6 screws.

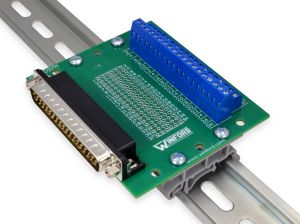

BRKDD37M-R-DIN
DIN Rail Mount
BRKDD37M-R-DIN
EnlargeClick image to enlarge.
Rail not included

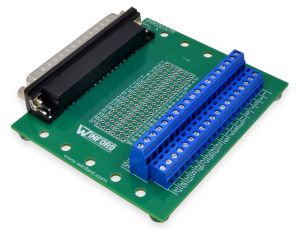

BRKDD37M-R-FT
Rubber Feet
BRKDD37M-R-FT
EnlargeClick image to enlarge.

Product Details

  • DB37 connector
  • Double decker screw terminals provide compact footprint
  • Screw terminal for each of the 37 lines, plus shield
  • Solder pad connection holes, three (3) per line
  • Supports addition of 0.1" pin headers
  • Screw terminals accommodate wire sizes from 16AWG to 26AWG
  • Approximate dimensions: 3.00" x 3.5"
  • Rubber feet or DIN rail mount

Pricing and Ordering

Product # Description 1+ 10+ RoHS Buy Now
DB37 Female Right Angle Connector:
BRKDD37F-R-DIN DB37 Female Breakout Board, R/A Connector, Double-Decker Screw Terminals, DIN Rail Mount $36.90 $33.70  Yes
BRKDD37F-R-FT DB37 Female Breakout Board, R/A Connector, Double-Decker Screw Terminals, Feet $35.30 $32.10  Yes
DB37 Male Right Angle Connector:
BRKDD37M-R-DIN DB37 Male Breakout Board, R/A Connector, Double-Decker Screw Terminals, DIN Rail Mount $36.90 $33.70  Yes
BRKDD37M-R-FT DB37 Male Breakout Board, R/A Connector, Double-Decker Screw Terminals, Feet $35.30 $32.10  Yes

DB37 Female Right Angle Connector:
BRKDD37F-R-DIN
RoHS   Yes
DB37 Female Breakout Board, R/A Connector, Double-Decker Screw Terminals, DIN Rail Mount
QuantityPrice
1+$36.90
10+$33.70
BRKDD37F-R-FT
RoHS   Yes
DB37 Female Breakout Board, R/A Connector, Double-Decker Screw Terminals, Feet
QuantityPrice
1+$35.30
10+$32.10
DB37 Male Right Angle Connector:
BRKDD37M-R-DIN
RoHS   Yes
DB37 Male Breakout Board, R/A Connector, Double-Decker Screw Terminals, DIN Rail Mount
QuantityPrice
1+$36.90
10+$33.70
BRKDD37M-R-FT
RoHS   Yes
DB37 Male Breakout Board, R/A Connector, Double-Decker Screw Terminals, Feet
QuantityPrice
1+$35.30
10+$32.10

All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
