DB9 Dual Breakout Board

BRK9MF-S-DIN

BRK9MF-S-DIN
(click image to enlarge)
BRK9MF-S-DIN
BRK9MF-S-FT
  • Both DB9 Male and Female connectors
  • Easily insert inline, for tapping into I/O signals
  • Screw terminal for each of the 9 lines, plus shield
  • Solder pad connection space for all 9 lines, plus shield
  • Supports addition of .1" pin headers
  • Rubber feet or DIN rail mount
See Also: Single DB9 Breakout Board,   More Breakout Boards,   DB9 Breadboard Adapters,   DB9 Cables


General Description

Make connections quickly and reliably with this breakout board, which brings every pin of its DB9 connectors out to screw terminals.

These breakout boards feature two DB9 connectors (one male, one female) wired 1:1, with all pins connected to screw terminals for easy wiring connections. Having two connectors allows the board to be easily inserted "in-line" with an existing connection, allowing signals to pass through while being monitored, or to work with "daisy-chained" equipment.

Each pin, including shield, is also brought to solder pads (4 per pin) at 0.1" spacing, allowing easy addition of pin headers or other components. Please note that the breakout boards are manufactured with a connection between each connector pin and the corresponding terminal block position; no soldering of any type is necessary. The solder pads simply provide an area for making optional connections to additional headers or other components.

This breakout board is perfect for production applications as well as experimentation and prototype work. It is helpful for working with RS-232 serial ports, MODBUS connections, I/O cards, and other devices that use a DB-9 connector.

Technically, the correct term for a DB9 connector is DE9, but that term is not commonly used.

We stock a variety of DB9 breakout board styles and form factors. Please have a look here.

A breakout board is sometimes referred to as a "transition module", "terminal board", "terminal block", "breakout box", "breakout adapter", "terminator", or "interface module".

Breakout boards with enclosures Need an enclosed breakout board? Winford offers our BRKE line of boards, which come installed in enclosures.

Product Documents

Part #DescriptionData SheetPDF DrawingDWG DrawingIGES ModelSTEP Model
BRK9MF-S-DINDB9 Dual Breakout, DIN MountPDF PDF DWG IGES CAD
BRK9MF-S-FTDB9 Dual Breakout, Rubber FeetPDF PDF DWG IGES CAD
BRK9MF-S-DIN

DB9 Dual Breakout, DIN Mount

PDF PDF DWG IGES CAD
BRK9MF-S-FT

DB9 Dual Breakout, Rubber Feet

PDF PDF DWG IGES CAD

Mounting Options

These products are available in two different mounting variants. Product numbers ending with -DIN come with DIN clips already installed and ready to snap onto 35mm or 32mm DIN rail. Product numbers ending with -FT have stick-on rubber feet installed on the bottom side, allowing for benchtop use or panel mounting. For panel mounting, we suggest 1/4" nylon standoffs under the mounting holes, and #6 screws.

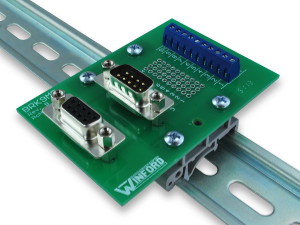

BRK9MF-S-DIN
DIN Rail Mount
BRK9MF-S-DIN
EnlargeClick image to enlarge.
Rail not included

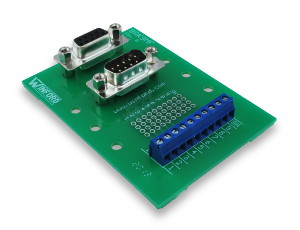

BRK9MF-S-FT
Rubber Feet
BRK9MF-S-FT
EnlargeClick image to enlarge.

Product Details

  • DB9 Male and Female connected in parallel with each other and screw terminals
  • Screw terminal for each of the 9 lines, plus shield
  • Solder pad connection holes, four (4) per line
  • Supports addition of .1" pin headers
  • Screw terminals accomodate wire sizes from 16AWG to 26AWG
  • Approximate dimensions: 3.28" x 2.3"
  • Rubber feet or DIN rail mount

Screwdrivers Need a quality screwdriver for your breakout boards? Winford sells Wiha screwdrivers!

Pricing and Ordering

Product # Description 1+ 10+ RoHS Buy Now
BRK9MF-S-DIN DB9 Dual Breakout Board, Male-Female, Straight Connectors, DIN Rail Mount $18.00 $16.50  Yes
BRK9MF-S-FT DB9 Dual Breakout Board, Male-Female, Straight Connectors, Feet $16.50 $15.00  Yes

BRK9MF-S-DIN
RoHS   Yes
DB9 Dual Breakout Board, Male-Female, Straight Connectors, DIN Rail Mount
QuantityPrice
1+$18.00
10+$16.50
BRK9MF-S-FT
RoHS   Yes
DB9 Dual Breakout Board, Male-Female, Straight Connectors, Feet
QuantityPrice
1+$16.50
10+$15.00

All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
