6P6C Shielded Jack Breakout Board

BRK6P6CSJ-R-DIN

BRK6P6CSJ-R-DIN
(click image to enlarge)
BRK6P6CSJ-R-DIN
BRK6P6CSJ-R-FT
BRK6P6CSJ-R-FT (Overhead View)
  • Shielded 6P6C Jack
  • Use with RJ11, RJ12, RJ13, RJ14, RJ18, and RJ25 applications
  • Perfect for serial or telco circuits
  • Screw terminal for each of the 6 lines, plus shield
  • Solder pad connection space for all 6 lines, plus shield
  • Supports addition of .1" pin headers
  • Rubber feet or DIN rail mount
See Also: Unshielded Jack RJ12 (6P6C) Breakout Board,   RJ12 (6P6C) Couplers,   More RJ12 (6P6C) Products


General Description

Make connections quickly and reliably with this breakout board, which brings every pin of its 6P6C modular jack connector out to screw terminals.

Each pin, including shield, is also brought to solder pads (5 per pin) at 0.1" spacing, allowing easy addition of pin headers or other components. Please note that the breakout boards are manufactured with a connection between each connector pin and the corresponding terminal block position; no soldering of any type is necessary. The solder pads simply provide an area for making optional connections to additional headers or other components.

The connector shield is connected to a copper plane on the PCB (to minimize electrical noise) in addition to being brought out to a screw terminal.

This breakout board is perfect for production applications as well as experimentation and prototype work. It is well-suited for working with serial ports, sensors, data acquisition (DAQ) equipment, telephone lines, RS-232 devices, and other devices that use a RJ11 / RJ12 / RJ13 / RJ14 / RJ18 / RJ25 / 6P6C connector.

The 6P6C designation on the modular jack stands for 6-Position, 6-Conductor, meaning it will accept telephone connectors commonly referred to as RJ11, RJ12, RJ13, RJ14, RJ18, and RJ25.

Need something different? We stock a variety of RJ12/6P6C breakout board styles and form factors. Please have a look!

A breakout board is sometimes referred to as a "transition module", "terminal board", "terminal block", "breakout box", "breakout adapter", "terminator", or "interface module".

Product Documents

Part #DescriptionPDF DrawingDWG DrawingIGES ModelSTEP Model
BRK6P6CSJ-R-DIN6P6C Shielded Jack, Right Angle, DIN MountPDF DWG IGES CAD
BRK6P6CSJ-R-FT6P6C Shielded Jack, Right Angle, Rubber FeetPDF DWG IGES CAD
BRK6P6CSJ-R-DIN

6P6C Shielded Jack, Right Angle, DIN Mount

PDF DWG IGES CAD
BRK6P6CSJ-R-FT

6P6C Shielded Jack, Right Angle, Rubber Feet

PDF DWG IGES CAD

Mounting Options

These products are available in two different mounting variants. Product numbers ending with -DIN come with DIN clips already installed and ready to snap onto 35mm or 32mm DIN rail. Product numbers ending with -FT have stick-on rubber feet installed on the bottom side, allowing for benchtop use or panel mounting. For panel mounting, we suggest 1/4" nylon standoffs under the mounting holes, and #6 screws.

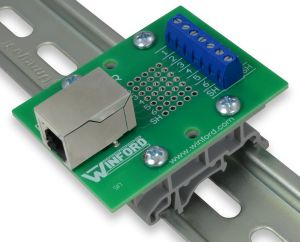

BRK6P6CSJ-R-DIN
DIN Rail Mount
BRK6P6CSJ-R-DIN
EnlargeClick image to enlarge.
Rail not included

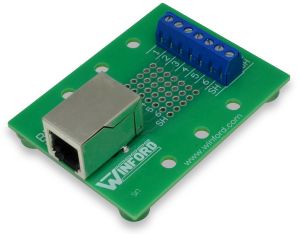

BRK6P6CSJ-R-FT
Rubber Feet
BRK6P6CSJ-R-FT
EnlargeClick image to enlarge.

Product Details

  • Shielded 6P6C Jack
  • Use with RJ11, RJ12, RJ13, RJ14, RJ18, and RJ25 applications
  • Screw terminal for each of the 6 lines, plus shield
  • Solder pad connection holes, five (5) per line
  • Supports addition of .1" pin headers
  • Screw terminals accommodate wire sizes from 16AWG to 26AWG
  • Approximate dimensions: 2.38" x 1.8"
  • Rubber feet or DIN rail mount

Screwdrivers Need a quality screwdriver for your breakout boards? Winford sells Wiha screwdrivers!

Pricing and Ordering

Product # Description 1+ 10+ 50+ RoHS Buy Now
Right Angle Connector:
BRK6P6CSJ-R-DIN 6P6C Shielded Jack Breakout Board, RJ12, R/A Connector, DIN Rail Mount $15.00 $13.90 $13.55  Yes
BRK6P6CSJ-R-FT 6P6C Shielded Jack Breakout Board, RJ12, R/A Connector, Feet $13.40 $12.30 $11.95  Yes

Right Angle Connector:
BRK6P6CSJ-R-DIN
RoHS   Yes
6P6C Shielded Jack Breakout Board, RJ12, R/A Connector, DIN Rail Mount
QuantityPrice
1+$15.00
10+$13.90
50+$13.55
BRK6P6CSJ-R-FT
RoHS   Yes
6P6C Shielded Jack Breakout Board, RJ12, R/A Connector, Feet
QuantityPrice
1+$13.40
10+$12.30
50+$11.95

All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
