Make connections quickly and reliably with this breakout board, which brings every pin of its male dual row header connector out to screw terminals. The IDC12 header connector has pins spaced at 0.1" pitch.
Each pin is also brought to solder pads (4 per pin) at 0.1" spacing, allowing easy addition of pin headers or other components. Please note that the breakout boards are manufactured with a connection between each connector pin and the corresponding terminal block position; no soldering of any type is necessary. The solder pads simply provide an area for making optional connections to additional headers or other components.
The header connector on this breakout board comes standard with long ejector latches. "Long ejectors" indicates that the ejectors are the correct length to accomodate IDC connectors with strain reliefs installed.
This breakout board is perfect for production applications as well as experimentation and prototype work. It is well-suited for interfacing with microcontroller programming circuits, LCD displays, I/O ports, DAQ equipment, and any other device that uses a 2x6 12-position header connector.
A dual row header is sometimes referred to as an "IDC Header", "IDC connector", or "ribbon cable connector". A breakout board is sometimes referred to as a "transition module", "terminal board", "terminal block", "breakout box", "breakout adapter", "terminator", or "interface module".
|Part #||Description||PDF Drawing||DWG Drawing||IGES Model||STEP Model|

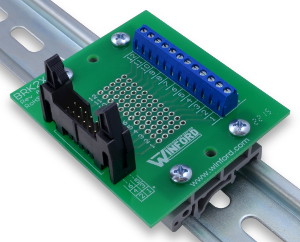

|BRK2X6-L-DIN||2x6 0.1" Header, DIN Mount|
|BRK2X6-L-FT||2x6 0.1" Header, Rubber Feet|
|Need a quality screwdriver for your breakout boards? Winford sells Wiha screwdrivers!|
Pricing and Ordering
|Product #||Description||1+||10+||RoHS||Buy Now|
|BRK2X6-L-DIN||2x6 (12 pins) 0.1" Header Breakout Board, Long Ejectors, Screw Terminals, DIN Rail Mount||$15.00||$14.00||Yes|
|BRK2X6-L-FT||2x6 (12 pins) 0.1" Header Breakout Board, Long Ejectors, Screw Terminals, Feet||$13.50||$12.50||Yes|
All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
