2x5 0.1" Header IDC10 Breakout Board
- Dual row 0.1" spaced male pin header
- 10 Pins (2x5), 0.1" pitch
- Header ejectors and box headers available
- Solder pad connection space for all 10 lines
- Screw terminal for each of the 10 lines
- Supports addition of 0.1" pitch pin headers
- Rubber feet or DIN rail mount
General Description
Make connections quickly and reliably with this breakout board, which brings every pin of its male dual row header connector out to screw terminals. The IDC10 header connector has pins spaced at 0.1" pitch.
Each pin is also brought to solder pads (4 per pin) at 0.1" spacing, allowing easy addition of pin headers or other components. Please note that the breakout boards are manufactured with a connection between each connector pin and the corresponding terminal block position; no soldering of any type is necessary. The solder pads simply provide an area for making optional connections to additional headers or other components.
The IDC10 (2X5) breakout boards are available with two different styles of headers:
- Box Header: (-B option) Shrouded box header without latches
- Long Ejectors: (-L option) Header contains ejector latches which are the correct length to accommodate IDC connectors with strain reliefs installed.
This breakout board is perfect for production applications as well as experimentation and prototype work. It is well-suited for interfacing with microcontroller programming circuits, I/O ports, DAQ equipment, and other devices that use a 2x5 10-position header connector.
A dual row header is sometimes referred to as an "IDC Header", "IDC connector", or "ribbon cable connector". A breakout board is sometimes referred to as a "transition module", "terminal board", "terminal block", "breakout box", "breakout adapter", "terminator", or "interface module".
Product Documents
| Part # | Description | Data Sheet | PDF Drawing | DWG Drawing | IGES Model | STEP Model |
|---|---|---|---|---|---|---|
| BRK2X5-B-DIN | 2x5 0.1" Box Header, DIN Mount |
|
|
|
|
|
| BRK2X5-B-FT | 2x5 0.1" Box Header, Rubber Feet |
|
|
|
|
|
| BRK2X5-L-DIN | 2x5 0.1" Ejector Header, DIN Mount |
|
|
|
|
|
| BRK2X5-L-FT | 2x5 0.1" Ejector Header, Rubber Feet |
|
|
|
|
|
2x5 0.1" Box Header, DIN Mount
2x5 0.1" Box Header, Rubber Feet
2x5 0.1" Ejector Header, DIN Mount
2x5 0.1" Ejector Header, Rubber Feet
Mounting Options

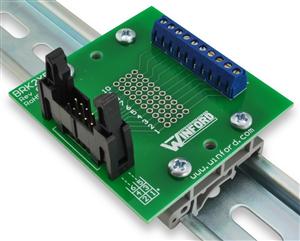

These products are available in two different mounting variants. Product numbers ending with -DIN come with DIN clips already installed and ready to snap onto 35mm or 32mm DIN rail. Product numbers ending with -FT have stick-on rubber feet installed on the bottom side, allowing for benchtop use or panel mounting. For panel mounting, we suggest 1/4" nylon standoffs under the mounting holes, and #6 screws.BRK2X5-L-DIN
Click image to enlarge. Rail not included
BRK2X5-L-FT
Click image to enlarge.Product Details
- Dual row 0.1" spaced male pin header
- 10 Pins (2x5), 0.1" pitch
- Screw terminal for each of the 10 lines
- Solder pad connection holes, four (4) per pin
- Supports addition of 0.1" pitch pin headers
- Screw terminals accommodate wire sizes from 16AWG to 26AWG
- Approximate dimensions: 2.38" x 2.5"
- Rubber feet or DIN rail mount
 |
Need a quality screwdriver for your breakout boards? Winford sells Wiha screwdrivers! |
Pricing and Ordering
| Product # | Description | 1+ | 10+ | RoHS | Buy Now |
|---|---|---|---|---|---|
Long Ejectors: |
|||||
| BRK2X5-L-DIN | 2x5 (10 pins) 0.1" Header Breakout Board, Long Ejectors, Screw Terminals, DIN Rail Mount | $14.45 | $13.65 | Yes | |
| BRK2X5-L-FT | 2x5 (10 pins) 0.1" Header Breakout Board, Long Ejectors, Screw Terminals, Feet | $12.85 | $12.05 | Yes | |
Box Header (no ejectors): |
|||||
| BRK2X5-B-DIN | 2x5 (10 pins) 0.1" Header Breakout Board, Box header, Screw Terminals, DIN Rail Mount | $14.45 | $13.65 | Yes | |
| BRK2X5-B-FT | 2x5 (10 pins) 0.1" Header Breakout Board, Box header, Screw Terminals, Feet | $12.85 | $12.05 | Yes | |
| Quantity | Price |
|---|---|
| 1+ | $14.45 |
| 10+ | $13.65 |
| Quantity | Price |
|---|---|
| 1+ | $12.85 |
| 10+ | $12.05 |
| Quantity | Price |
|---|---|
| 1+ | $14.45 |
| 10+ | $13.65 |
| Quantity | Price |
|---|---|
| 1+ | $12.85 |
| 10+ | $12.05 |
All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
