2x30 0.1" Header IDC60 Breakout Board

BRK2X30-L-DIN

BRK2X30-L-DIN
(click image to enlarge)
BRK2X30-L-DIN
BRK2X30-L-FT
BRK2X30-L-FT (Overhead View)
  • Dual row 0.1" spaced male pin header
  • 60 Pins (2x30), 0.1" pitch
  • Solder pad connection space for all 60 lines
  • Screw terminal for each of the 60 lines
  • Supports addition of 0.1" pitch pin headers
  • Rubber feet or DIN rail mount
See Also: More Breakout Boards,   IDC 0.1" Header Connectors,   Ribbon Cable


General Description

Make connections quickly and reliably with this breakout board, which brings every pin of its male dual row header connector out to screw terminals. The IDC60 header connector has pins spaced at 0.1" pitch.

Each pin is also brought to solder pads (3 per pin) at 0.1" spacing, allowing easy addition of pin headers or other components. Please note that the breakout boards are manufactured with a connection between each connector pin and the corresponding terminal block position; no soldering of any type is necessary. The solder pads simply provide an area for making optional connections to additional headers or other components. The solder pads are arranged in such a way that you can add an additional 2x30 header to the breakout board. It will be connected 1:1 with the existing connector, thus forming a "T" or "Y" connection and allowing an extra cable connection to the board (allows daisy-chaining connections, etc).

This breakout board is perfect for production applications as well as experimentation and prototype work. It is well-suited for interfacing with I/O cards, data acquisition (DAQ) equipment, relay racks, Opto 22 racks, and any other device that uses a 2x30 60-position header connector.

The header connector on this breakout board comes standard with long ejector latches. "Long ejectors" indicates that the ejectors are the correct length to accomodate IDC connectors with strain reliefs installed.

A dual row header is sometimes referred to as an "IDC Header", "IDC connector", or "ribbon cable connector". A breakout board is sometimes referred to as a "transition module", "terminal board", "terminal block", "breakout box", "breakout adapter", "terminator", or "interface module".

Product Documents

Part #DescriptionPDF DrawingDWG DrawingIGES ModelSTEP Model
BRK2X30-L-DIN2x30 0.1" Header, DIN MountPDF DWG IGES CAD
BRK2X30-L-FT2x30 0.1" Header, Rubber FeetPDF DWG IGES CAD
BRK2X30-L-DIN

2x30 0.1" Header, DIN Mount

PDF DWG IGES CAD
BRK2X30-L-FT

2x30 0.1" Header, Rubber Feet

PDF DWG IGES CAD

Mounting Options

These products are available in two different mounting variants. Product numbers ending with -DIN come with DIN clips already installed and ready to snap onto 35mm or 32mm DIN rail. Product numbers ending with -FT have stick-on rubber feet installed on the bottom side, allowing for benchtop use or panel mounting. For panel mounting, we suggest 1/4" nylon standoffs under the mounting holes, and #6 screws.

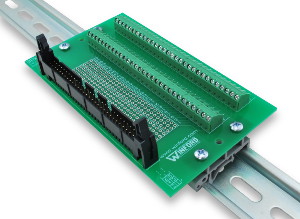

BRK2X30-L-DIN
DIN Rail Mount
BRK2X30-L-DIN
EnlargeClick image to enlarge.
Rail not included
BRK2X30-L-FT
Rubber Feet
BRK2X30-L-FT
EnlargeClick image to enlarge.

Product Details

  • Dual row 0.1" spaced male pin header
  • 60 Pins (2x30), 0.1" pitch
  • Ejector latches on header provide secure connection and quick disconnection
  • Screw terminal for each of the 60 lines
  • Solder pad connection holes, three (3) per pin
  • Supports addition of 0.1" pitch pin headers
  • Screw terminals accommodate wire sizes from 16AWG to 26AWG
  • Approximate dimensions: 3.0" x 5.2"
  • Rubber feet or DIN rail mount
