2x13 0.1" Header IDC26 Breakout Board

BRK2X13-L-DIN

BRK2X13-L-DIN
(click image to enlarge)
BRK2X13-L-DIN
BRK2X13-L-FT
  • Dual row 0.1" spaced male pin header
  • 26 Pins (2 x 13) 0.1" pitch
  • Solder pad connection space for all 26 lines
  • Screw terminal for each of the 26 lines
  • Supports addition of 0.1" pitch pin headers
  • Rubber feet or DIN rail mount
See Also: More Breakout Boards,   IDC 0.1" Header Connectors,   Ribbon Cable


General Description

This IDC26 breakout board brings all 26 pins of its male dual row header out to screw terminal blocks, providing quick and secure connections. Each pin is also brought to solder pads (5 per pin) at 0.1" (2.54mm) spacing, allowing the easy addition of pin headers. Please note that the breakout boards are manufactured with a connection between each connector pin and the corresponding terminal block position; no soldering of any type is necessary. The solder pads simply provide an area for making optional connections to additional headers or other components.

This breakout board is perfect for production applications as well as experimentation and prototype work. It is well-suited for interfacing with data acquisition equipment or any other devices that use a 2x13 26-position header connector. One such application is the Raspberry Pi GPIO board, some of which use a 2x13 header for their I/O pins.

A dual row header is sometimes referred to as an "IDC Header", "IDC connector", or "ribbon cable connector". A breakout board is sometimes referred to as a "transition module", "terminal board", "terminal block", "breakout box", "breakout adapter", "terminator", or "interface module".

Product Documents

Part #DescriptionData SheetIGES ModelSTEP Model
BRK2X13-L-DIN2x13 0.1" Header, DIN MountPDF IGES CAD
BRK2X13-L-FT2x13 0.1" Header, FeetPDF IGES CAD
BRK2X13-L-DIN

2x13 0.1" Header, DIN Mount

PDF IGES CAD
BRK2X13-L-FT

2x13 0.1" Header, Feet

PDF IGES CAD

Mounting Options

These products are available in two different mounting variants. Product numbers ending with -DIN come with DIN clips already installed and ready to snap onto 35mm or 32mm DIN rail. Product numbers ending with -FT have stick-on rubber feet installed on the bottom side, allowing for benchtop use or panel mounting. For panel mounting, we suggest 1/4" nylon standoffs under the mounting holes, and #6 screws.

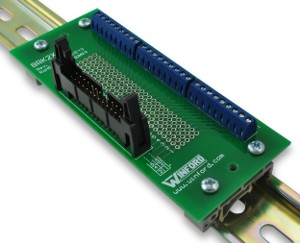

BRK2X13-L-DIN
DIN Rail Mount
BRK2X13-L-DIN
EnlargeClick image to enlarge.
Rail not included

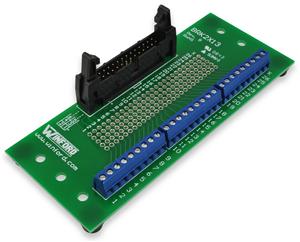

BRK2X13-L-FT
Rubber Feet
BRK2X13-L-FT
EnlargeClick image to enlarge.

Product Details

  • Dual row 0.1" spaced male pin header
  • 26 Pins (2 x 13) 0.1" pitch
  • Ejector latches on header provide secure connection and quick disconnection
  • Screw terminal for each of the 26 lines
  • Solder pad connection holes, five (5) per pin
  • Supports addition of 0.1" pitch pin headers
  • Screw terminals accomodate wire sizes from 16AWG to 26AWG
  • Approximate dimensions: 2.0" x 4.9"
  • Rubber feet or DIN rail mount

Screwdrivers Need a quality screwdriver for your breakout boards? Winford sells Wiha screwdrivers!

Pricing and Ordering

Product # Description 1+ 10+ RoHS Buy Now
BRK2X13-L-DIN
(Old#: BRK2X13-DIN)
2x13 (26 pins) 0.1" Dual Row Header Breakout Board, Long Ejector, Screw Terminals, DIN Rail Mount $21.50 $20.50  Yes
BRK2X13-L-FT
(Old#: BRK2X13)
2x13 (26 pins) 0.1" Dual Row Header Breakout Board, Long Ejector, Screw Terminals, Feet $19.99 $19.00  Yes

BRK2X13-L-DIN
(Old#: BRK2X13-DIN)
RoHS   Yes
2x13 (26 pins) 0.1" Dual Row Header Breakout Board, Long Ejector, Screw Terminals, DIN Rail Mount
QuantityPrice
1+$21.50
10+$20.50
BRK2X13-L-FT
(Old#: BRK2X13)
RoHS   Yes
2x13 (26 pins) 0.1" Dual Row Header Breakout Board, Long Ejector, Screw Terminals, Feet
QuantityPrice
1+$19.99
10+$19.00

All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
