Small Signal 2-Channel 2A SPDT Relay Board: RLY302
- Provides quick and easy relay wiring
- Two SPDT relays and drivers
- Accepts TTL logic level control inputs
- Available in 5V, 12V, and 24V coil voltages
- Screw terminal connections
- Convenient for data acquisition & signal switching projects
- LED indicator for each relay
- Relay contacts rated up to 2A at 30VDC, 1A at 125VAC
- Gold-clad contacts suitable for low-level signals down to 10uA
- Rated for resistive loads (not inductive loads / motors)
- Available in rubber feet or DIN rail mount
General Description
Featuring gold-clad relay contacts that will not oxidize or tarnish, this relay board provides a convenient way to switch low-level signals in your data acquisition project (e.g., multiplexing sensors being read with a single ADC input). It is also suitable for use in automated failure-injection testing (e.g., short-open testing for sensor harness FMEA verification). This board includes two SPDT relays, logic-level relay driver circuits, and protection diodes. Simply provide the board with power, connect your logic-level signals to the inputs, and the relay contacts are ready to use. The relay contacts are electrically isolated from the rest of the board, which allows the board to be used in a wide variety of low-current applications, including both AC and DC loads.
With this relay board, a logic-level signal (e.g., 3.3V or 5V) or higher-voltage signal (up to 25V) can be used to control a relay. Examples of logic-level signals include the outputs of an I/O card or a microcontroller's output pins (e.g., Arduino or Raspberry Pi).
The board is available with three different relay coil voltages (5, 12, 24 VDC), allowing you to choose whichever is most conveniently available for your project. Suitable wall power supplies for the 5V and 12V models are available below.
Please note that the relay coil voltage you select has no effect whatsoever on the voltages you can switch with the relay contacts. Also note that the relay coil voltage you select does NOT affect what voltage is needed for the input control signals. For any of the coil voltage options (5, 12, or 24V), an input control signal from 2.5VDC up through 25VDC will activate the relay. See datasheet for input current requirements.
Mounting Options
These products are available in two different mounting variants. Product numbers ending with -DIN come with DIN clips already installed and ready to snap onto 35mm or 32mm DIN rail. Product numbers ending with -FT have stick-on rubber feet installed on the bottom side, allowing for benchtop use or panel mounting. For panel mounting, we suggest 1/4" nylon standoffs under the mounting holes, and #6 screws.RLY302-5V-DIN

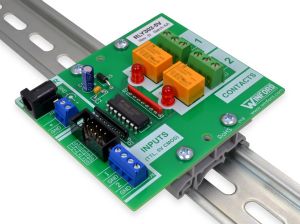

Click image to enlarge. Rail not included
RLY302-24V-FT
Click image to enlarge.Product Documents
| Part # | Description | Data Sheet | Schematic | PDF Drawing | DWG Drawing | IGES Model | STEP Model |
|---|---|---|---|---|---|---|---|
| RLY302-xxV-DIN | RLY302 2-Channel Relay Board, DIN Mount |
|
|
|
|
|
|
| RLY302-xxV-FT | RLY302 2-Channel Relay Board, Rubber Feet |
|
|
|
|
|
|
RLY302 2-Channel Relay Board, DIN Mount
RLY302 2-Channel Relay Board, Rubber Feet
Product Details
- Two SPDT relays and drivers
- Accepts TTL logic level control inputs
- Available in 5V, 12V, and 24V coil voltages
- LED indicator for each relay
- Relay contacts rated up to 2A at 30VDC, 1A at 125VAC
- Gold-clad contacts suitable for low-level signals down to 10uA
- Rated for resistive loads (not inductive loads / motors)
- Screw terminals for control inputs(accepts 16-26 AWG wire)
- Screw terminals for contacts (accepts 16-30 AWG wire)
- 0.1" header provided for input control signals (in addition to screw terminals)
- Power supply may be connected via DC power jack or via screw terminals.
- Approximate dimensions: 3.4" x 3.0"
- Available in rubber feet or DIN rail mount
