DB25 Bus Boards
- DB25 Connectors
- DB25 Connectors
- Easily split/chain/wye DB25 connections
- Rubber feet or DIN rail mount
General Description
These buss boards provide a total of four (4) DB25 connectors, with all 25 pins of each connector wired together 1:1 as a buss. These boards provide an easy way to join , split out, create wye (Y) connections, or chain together multiple DB25 connections. Please note that not all equipment is designed or suitable to have its connections split out to multiple places. This board simply wires all connectors together and must be used with equipment for which that is appropriate.
These boards are available with mounting holes and rubber feet, or with DIN rail mounting clips.
Product Documents
| Part # | Description | Data Sheet | PDF Drawing | DWG Drawing | IGES Model | STEP Model |
|---|---|---|---|---|---|---|
| BUSD25V2-1F3M-DIN | DB25 Bus, 1 Female, 3 Male, DIN Mount |
|
|
|
|
|
| BUSD25V2-1F3M-FT | DB25 Bus, 1 Female, 3 Male, Rubber Feet |
|
|
|
|
|
| BUSD25V2-1M3F-DIN | DB25 Bus, 1 Male, 3 Female, DIN Mount |
|
|
|
|
|
| BUSD25V2-1M3F-FT | DB25 Bus, 1 Male, 3 Female, Rubber Feet |
|
|
|
|
|
DB25 Bus, 1 Female, 3 Male, DIN Mount
DB25 Bus, 1 Female, 3 Male, Rubber Feet
DB25 Bus, 1 Male, 3 Female, DIN Mount
DB25 Bus, 1 Male, 3 Female, Rubber Feet
Mounting Options

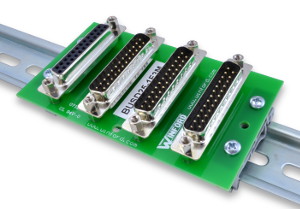

These products are available in two different mounting variants. Product numbers ending with -DIN come with DIN clips already installed and ready to snap onto 35mm or 32mm DIN rail. Product numbers ending with -FT have stick-on rubber feet installed on the bottom side, allowing for benchtop use or panel mounting. For panel mounting, we suggest 1/4" nylon standoffs under the mounting holes, and #6 screws.BUSD25-1F3M-DIN
Click image to enlarge. Rail not included

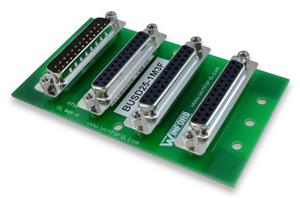

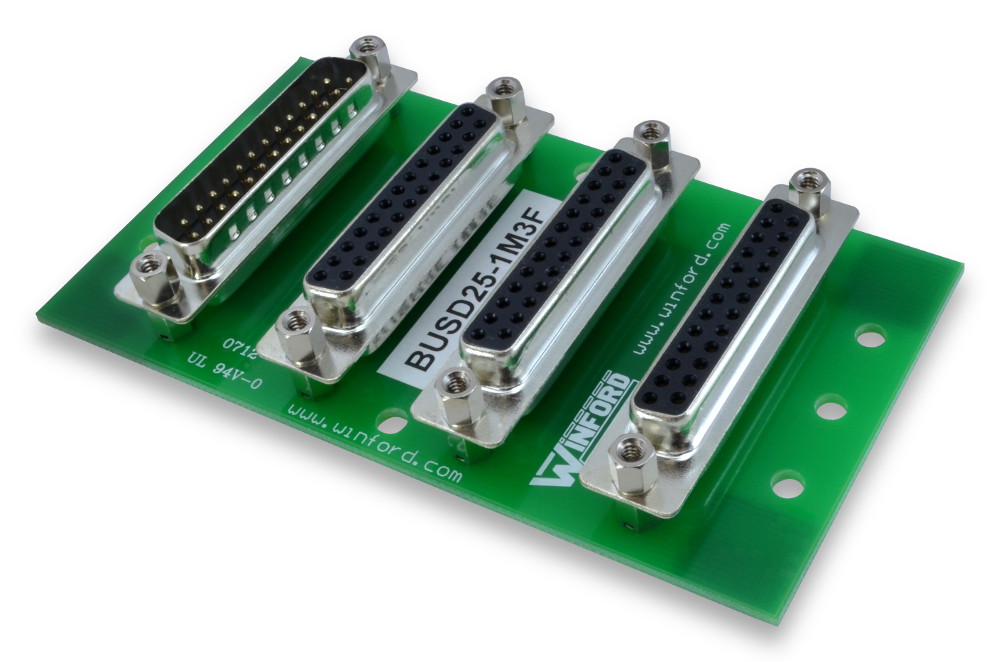

BUSD25-1M3F-FT
Click image to enlarge.Changelog
- BUSD25-1x3x-xx (old version): All 25 pins connected 1-to-1. Shells are isolated.
- BUSD25V2-1x3x-xx (current version): All 25 pins connected 1-to-1. Shells are also all connected.
Pricing and Ordering
| Product # | Description | 1+ | 10+ | RoHS | Buy Now |
|---|---|---|---|---|---|
(1) DB25 Female to (3) DB25 Male Connectors: |
|||||
| BUSD25V2-1F3M-DIN | DB25 Buss Board, 1 Female to 3 Male, DIN Rail Mount | $20.35 | $19.25 | Yes | |
| BUSD25V2-1F3M-FT | DB25 Buss Board, 1 Female to 3 Male, Feet | $18.75 | $17.65 | Yes | |
(1) DB25 Male to (3) DB25 Female Connectors: |
|||||
| BUSD25V2-1M3F-DIN | DB25 Buss Board, 1 Male to 3 Female, DIN Rail Mount | $20.35 | $19.25 | Yes | |
| BUSD25V2-1M3F-FT | DB25 Buss Board, 1 Male to 3 Female, Feet | $18.75 | $17.65 | Yes | |
| Quantity | Price |
|---|---|
| 1+ | $20.35 |
| 10+ | $19.25 |
| Quantity | Price |
|---|---|
| 1+ | $18.75 |
| 10+ | $17.65 |
| Quantity | Price |
|---|---|
| 1+ | $20.35 |
| 10+ | $19.25 |
| Quantity | Price |
|---|---|
| 1+ | $18.75 |
| 10+ | $17.65 |
All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
