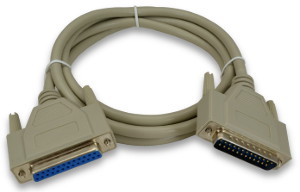

DB25 Extension Cable
- DB25 connectors:
- Variety of lengths available
- Extends all 25 lines straight through
- Available in Male-Female, Male-Male, and Female-Female
General Description
These are extender cables for any device which uses a DB-25 connector. They are available in a variety of lengths and combinations. All 25 pins are extended, and the wiring is straight-through (pin 1 to pin 1, 2 to 2, ...); they include a foil shield around the cable and connecting the shells. The wire gauge is 28AWG.
Optional Extra-Long Jack Screw Kit
Winford now offers extra-long jackscrews as an accessory that can be purchased separately if daisy-chaining cables is desired. The existing thumbscrews would be removed and the long jackscrews installed in their place, and secured with the included nuts and washers on the back of the cable. See photo on right for example or order below. The jack screws are designed to accept the thumbscrews on a mating cable, helping secure the cable firmly in place.
Product Details
- Available in Male-Female, Male-Male, and Female-Female
- All pins wired 1:1 (e.g pin 1 to pin 1, pin 2 to pin 2, etc.)
- 28 AWG conductors
- Foil shielded
Series Comparison: Basic vs Premium
The Premium (EXTP) cables offer enhanced features compared to the Basic (EXT) series. We will continue to sell both series as stock products.
 |
 |
|
|---|---|---|
| Basic EXT |
Premium EXTP |
|
| Wire AWG | 28 AWG | 24 AWG |
| Shielding | Foil | Foil and Braid |
| Pin Mapping | 1:1 | 1:1 |
| Internal Wire Color Code | Not Guaranteed | Documented |
| Labeled Ends | N/A | Part # and Length |
| Outer Color | Beige | Blue |
Pricing and Ordering
| Product # | Description | 1+ | 10+ | RoHS | Buy Now |
|---|---|---|---|---|---|
Male-Female: |
|||||
| EXT25-1 | DB25 Extension Cable, Male-Female, 1Ft | $6.00 | $5.65 | Yes | |
| EXT25-2 | DB25 Extension Cable, Male-Female, 2Ft | $6.25 | $5.90 | Yes | |
| EXT25-3 | DB25 Extension Cable, Male-Female, 3Ft | $7.25 | $6.90 | Yes | |
| EXT25-6 | DB25 Extension Cable, Male-Female, 6Ft | $8.20 | $7.70 | Yes | |
| EXT25-10 | DB25 Extension Cable, Male-Female, 10Ft | $9.00 | $8.75 | Yes | |
Female-Female: |
|||||
| EXT25F-6 | DB25 Extension Cable, Female-Female, 6Ft | $8.15 | $7.75 | Yes | |
Male-Male: |
|||||
| EXT25M-6 | DB25 Extension Cable, Male-Male, 6Ft | $8.15 | $7.75 | Yes | |
| EXT25M-10 | DB25 Extension Cable, Male-Male, 10Ft | $9.15 | $8.90 | Yes | |
| Quantity | Price |
|---|---|
| 1+ | $6.00 |
| 10+ | $5.65 |
| Quantity | Price |
|---|---|
| 1+ | $6.25 |
| 10+ | $5.90 |
| Quantity | Price |
|---|---|
| 1+ | $7.25 |
| 10+ | $6.90 |
| Quantity | Price |
|---|---|
| 1+ | $8.20 |
| 10+ | $7.70 |
| Quantity | Price |
|---|---|
| 1+ | $9.00 |
| 10+ | $8.75 |
| Quantity | Price |
|---|---|
| 1+ | $8.15 |
| 10+ | $7.75 |
| Quantity | Price |
|---|---|
| 1+ | $8.15 |
| 10+ | $7.75 |
| Quantity | Price |
|---|---|
| 1+ | $9.15 |
| 10+ | $8.90 |
Extra-Long Jack Screw Kits
Extra-Long Jack Screw Kit for Daisy-Chain Applications
| Product # | Description | 1+ | 10+ | 50+ | RoHS | Buy Now |
|---|---|---|---|---|---|---|
35mm Jack Screw Kit |
||||||
| DJSK-35.0-A | D-Sub #4-40 Jack Screw Kit, 35mm shaft length; 2 each of jack-screws, flat washers, lock washers, nuts | $4.50 | $4.20 | $4.00 | Yes | |
| Quantity | Price |
|---|---|
| 1+ | $4.50 |
| 10+ | $4.20 |
| 50+ | $4.00 |
All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
