Diagnostic Breakout Switch Board: DB15HD High-Density Connector

BTSD15HD-R-FT (Application)

BTSD15HD-R-FT (Application)
(click image to enlarge)
BTSD15HD-R-FT (Application)
BTSD15HD-R-FT
BTSD15HD-R-FT (Overhead View)
BTSD15HD-R-DIN
Schematic
Board Diagram
  • Pass-through test board with inline switches
  • Contains (2) DB15HD connectors (1 Male, 1 Female) for convenient inline insertion
  • Includes Probe test points and Header test points for every signal
  • Includes switch for each signal line
  • Clearly labeled with connector pin numbers
  • Mounting Options: Rubber Feet or DIN Rail
See Also: More Diagnostic Breakout Boards,   DB15HD Breakout Boards,   DB15HD Cables


General Description

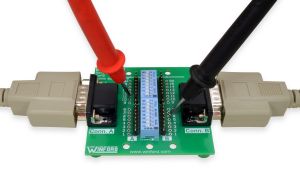

Insert this diagnostic Breakout Test Board into existing cable connections and get access to signals via test points and headers; this is the pass-through function of this board. In addition, switches allow individual signals to be disconnected from the circuit, which aids in diagnostics, troubleshooting, fault tolerance testing, or re-routing specific signals within a cable. This compact design is meant to be inserted into the cabling of a system during operation. Normal system operation can continue while signals are probed and manipulated. It is a handy test point breakout board with inline interruptor switches.

This board contains dual high-density DB15HD connectors (1 Male, 1 Female). This connector selection generally allows for very convenient insertion into existing cable configurations, without the use of gender changers, etc.

Note: This product contains the 'high density' DB15HD connector with 3 rows of pins. See the DB15 products for the 2-row 'standard density' 15-pin DSUB connector.

BTS Schematic
Schematic of Breakout Test Board
EnlargeClick image to enlarge.

Applications

  • Signal monitoring or measurement
  • System Calibration
  • Diagnostics and troubleshooting
  • Signal injection and fault tolerance testing
  • Re-routing selected connector signals

Technically, the correct term for a DB15HD connector is DE15, but that term is not commonly used.

Need something different? We stock a variety of DB15HD breakout board styles and form factors. Please have a look!

A breakout test board may also be referred to as a "measurement breakout", "pass-through board", "test breakout", "inline test adapter", or "breakout testing board".

Product Documents

Part #DescriptionPDF DrawingDWG DrawingIGES ModelSTEP ModelApp Note
BTSD15HD-R-DINDB15HD Diagnostic Board, DIN MountPDF DWG IGES CAD
BTSD15HD-R-FTDB15HD Diagnostic Board, Rubber FeetPDF DWG IGES CAD
BTS SeriesBreakout Test Board Application NotePDF
-D-Sub Panel Cutout DrawingPDF DWG
BTSD15HD-R-DIN

DB15HD Diagnostic Board, DIN Mount

PDF DWG IGES CAD
BTSD15HD-R-FT

DB15HD Diagnostic Board, Rubber Feet

PDF DWG IGES CAD
BTS Series

Breakout Test Board Application Note

PDF
-

D-Sub Panel Cutout Drawing

PDF DWG

Mounting Options

These products are available in two different mounting variants. Product numbers ending with -DIN come with DIN clips already installed and ready to snap onto 35mm or 32mm DIN rail. Product numbers ending with -FT have stick-on rubber feet installed on the bottom side, allowing for benchtop use or panel mounting. For panel mounting, we suggest 1/4" nylon standoffs under the mounting holes, and #6 screws.

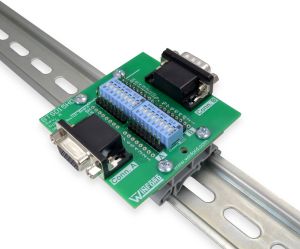

BTSD15HD-R-DIN
DIN Rail Mount
BTSD15HD-R-DIN
EnlargeClick image to enlarge.
Rail not included

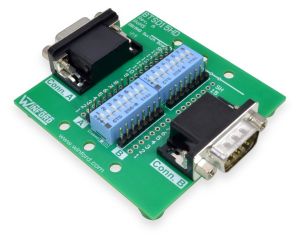

BTSD15HD-R-FT
