M8 Panel Mount Breakout Boards

BRKQAM8A-3F-A (Side View)

BRKQAM8A-3F-A (Side View)
(click image to enlarge)
BRKQAM8A-3F-A (Side View)
BRKQAM8A-3F-A (Connector View)
BRKQAM8A-3F-A (Terminal View)
BRKQAM8A-3F-A
BRKQAM8A-3M-A (Side View)
BRKQAM8A-3M-A (Connector View)
BRKQAM8A-3M-A (Terminal View)
BRKQAM8A-3M-A
BRKQAM8A-4F-A (Side View)
BRKQAM8A-4F-A (Connector View)
BRKQAM8A-4F-A (Terminal View)
BRKQAM8A-4F-A
BRKQAM8A-4M-A (Side View)
BRKQAM8A-4M-A (Connector View)
BRKQAM8A-4M-A (Terminal View)
BRKQAM8A-4M-A
BRKQAM8A-4M-A (Installed on a Panel)
  • Available with 3-Pin or 4-Pin A-coded M8 connector
  • Available with male or female connector
  • Cost effective and reliable cable termination
  • Available with screw terminals
  • Terminal for each of the pins, plus shield
  • Convenient strain relief feature for wires
See Also: M12 Products,   More Panel Mount Breakout Boards,   More Breakout Boards


General Description

These M8 breakout boards are part of the BRKQ series, which provides a clean and simple solution for terminating wires at a connector through a panel or enclosure wall. These boards are great for making machine network connections, connecting external sensors, connecting human interface devices, and neatly transitioning cabling through an enclosure.

This board has a 3-pin or 4-pin, A-coded M8 connector that brings all signals lines plus shield out to screw terminals. It is available with either a male or female connector.

A breakout board is sometimes referred to as a "transition module", "terminal board", "terminal block", "breakout box", "breakout adapter", "terminator", or "interface module".

Pinouts

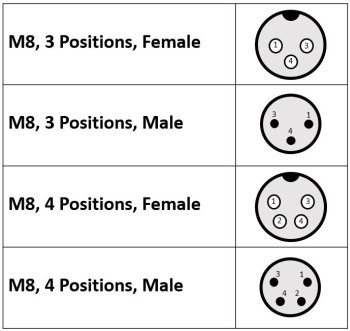

M8 Connector Pinouts

Features

M10 And M8 Panel Nuts

M10 And M8 Panel Nuts

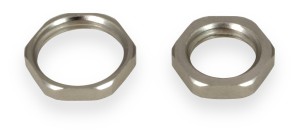

This board comes with a panel nut installed on its connector. This nut is used to secure the board to a panel or enclosure wall. Simply unscrew the nut from the connector, insert the connector through the wall, and reattach the nut to the connector. For female connectors, the panel nut is size M10. For male connectors, the panel nut is size M8.

Strain Relief Feature

Strain Relief Feature
(8-pin M12 Board Shown)
EnlargeClick image to enlarge.

This board also has a strain relief feature that eases the tension placed on wires connected to the terminal. To utilize this feature, simply wrap a cable tie (sold separately) around the strain relief extension and close it over the wires that populate the board's terminals.

Installation

To install a BRKQ board onto a panel or piece of equipment, follow these three simple steps:

BRKQ Installation Instructions

Product Details

  • Available with screw terminals
  • Terminal for each of the pins, plus shield
  • Terminals accommodate wire sizes from 16AWG to 24AWG
  • Convenient strain relief feature for wires
  • Connection points are labeled with pin numbers
  • No soldering or crimping required

Accessories

Cable Ties (Sold Separately)

Cable Ties
These cable ties work very well as strain relief on a variety of Winford breakout boards, including boards in the BRKQ series. They are a great choice for tying both small and large wire bundles to the breakout boards.

Product Documents

Part #DescriptionPDF DrawingDWG DrawingIGES ModelSTEP Model
BRKQAM8A-3F-AM8 3-Pin Female, Panel MountPDF DWG IGES CAD
BRKQAM8A-3M-AM8 3-Pin Male, Panel MountPDF DWG IGES CAD
BRKQAM8A-4F-AM8 4-Pin Female, Panel MountPDF DWG IGES CAD
BRKQAM8A-4M-AM8 4-Pin Male, Panel MountPDF DWG IGES CAD
BRKQAM8A-3F-A

M8 3-Pin Female, Panel Mount

PDF DWG IGES CAD
BRKQAM8A-3M-A

M8 3-Pin Male, Panel Mount

PDF DWG IGES CAD
BRKQAM8A-4F-A

M8 4-Pin Female, Panel Mount

PDF DWG IGES CAD
BRKQAM8A-4M-A

M8 4-Pin Male, Panel Mount

PDF DWG IGES CAD

Pricing and Ordering

Product # Description 1+ 10+ 50+ RoHS Buy Now
3-Pin Female Connector with Screw Terminals:
BRKQAM8A-3F-A M8 Breakout Board, Panel Mount, 3-Pin Female Connector with Shield, A-Coded, Screw Terminals, with M10 Panel Nut $16.70 $16.10 $15.05  Yes
3-Pin Male Connector with Screw Terminals:
BRKQAM8A-3M-A M8 Breakout Board, Panel Mount, 3-Pin Male Connector with Shield, A-Coded, Screw Terminals, with M8 Panel Nut $16.70 $16.10 $15.05  Yes
4-Pin Female Connector with Screw Terminals:
BRKQAM8A-4F-A M8 Breakout Board, Panel Mount, 4-Pin Female Connector with Shield, A-Coded, Screw Terminals, with M10 Panel Nut $16.70 $16.10 $15.05  Yes
4-Pin Male Connector with Screw Terminals:
BRKQAM8A-4M-A M8 Breakout Board, Panel Mount, 4-Pin Male Connector with Shield, A-Coded, Screw Terminals, with M8 Panel Nut $16.70 $16.10 $15.05  Yes

3-Pin Female Connector with Screw Terminals:
BRKQAM8A-3F-A
RoHS   Yes
M8 Breakout Board, Panel Mount, 3-Pin Female Connector with Shield, A-Coded, Screw Terminals, with M10 Panel Nut
QuantityPrice
1+$16.70
10+$16.10
50+$15.05
3-Pin Male Connector with Screw Terminals:
BRKQAM8A-3M-A
RoHS   Yes
M8 Breakout Board, Panel Mount, 3-Pin Male Connector with Shield, A-Coded, Screw Terminals, with M8 Panel Nut
QuantityPrice
1+$16.70
10+$16.10
50+$15.05
4-Pin Female Connector with Screw Terminals:
BRKQAM8A-4F-A
RoHS   Yes
M8 Breakout Board, Panel Mount, 4-Pin Female Connector with Shield, A-Coded, Screw Terminals, with M10 Panel Nut
QuantityPrice
1+$16.70
10+$16.10
50+$15.05
4-Pin Male Connector with Screw Terminals:
BRKQAM8A-4M-A
RoHS   Yes
M8 Breakout Board, Panel Mount, 4-Pin Male Connector with Shield, A-Coded, Screw Terminals, with M8 Panel Nut
QuantityPrice
1+$16.70
10+$16.10
50+$15.05

All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
