DB50 Breakout Board with Spring Connection Terminals

BRKG50F-R-DIN

BRKG50F-R-DIN
(click image to enlarge)
BRKG50F-R-DIN
BRKG50F-R-N
BRKG50F-S-DIN
BRKG50F-S-N
BRKG50M-R-DIN (On a Rail)
BRKG50M-R-N
BRKG50M-R-N (Overhead View)
BRKG50M-S-DIN
BRKG50M-S-N
Spring Terminals
  • Available with DB50 Male or Female connector
  • Quick connection spring cage terminal blocks for all pins, plus shield
  • Solder pad connection space / test points for all pins, plus shield
  • Supports addition of .1" pin headers
  • DIN rail mountable
See Also: More Breakout Boards,   DB50 Cables


General Description

Make connections quickly and reliably with this breakout board, which brings every pin of its DB50 connector out to spring terminals. This product is available with both male and female connectors.

Each pin, including shield, is also brought to solder pads (1 per pin) at 0.1" spacing, allowing easy addition of pin headers or other components. Please note that the breakout boards are manufactured with a connection between each connector pin and the corresponding terminal block position; no soldering of any type is necessary. The solder pads simply provide an area for making optional connections to additional headers or other components.

Spring Terminal Animation

This breakout board features push-in spring connection terminal blocks. These screwless spring clamp terminal blocks allow connections to be made very quickly and efficiently. The spring terminal connections are reliable and secure, but wires can be connected and disconnected in a fraction of the time required with standard screw terminal blocks. Simply depress the actuator button on top of the terminal block, insert or remove the wire, and release the button. Done! In addition, screwless spring connections can offer better results in environments where vibration could potentially loosen standard screw terminal block connections. If your application requires screw terminals rather than spring terminals, please consider the BRKDD50 design or the other DB50 options listed here.

This breakout board is perfect for production applications as well as experimentation and prototype work. It is helpful for working with I/O cards, Data Aquisition (DAQ) devices, and other devices that use a DB-50 connector.

Technically, the correct term for a DB50 connector is DD50, but that term is not commonly used.

Need something different? We stock a variety of DB50 breakout board styles and form factors. Please have a look!

A breakout board is sometimes referred to as a "transition module", "terminal board", "terminal block", "breakout box", "breakout adapter", "terminator", or "interface module".

Product Documents

Part #DescriptionPDF DrawingDWG DrawingIGES ModelSTEP Model
BRKG50F-R-DINDB50 Female Right Angle, DIN MountPDF DWG IGES CAD
BRKG50F-R-NDB50 Female Right Angle, Mounting HolesPDF DWG IGES CAD
BRKG50F-S-DINDB50 Female Straight Connector, DIN MountPDF DWG IGES CAD
BRKG50F-S-NDB50 Female Straight Connector, Mounting HolesPDF DWG IGES CAD
BRKG50M-R-DINDB50 Male Right Angle, DIN MountPDF DWG IGES CAD
BRKG50M-R-NDB50 Male Right Angle, Mounting HolesPDF DWG IGES CAD
BRKG50M-S-DINDB50 Male Straight Connector, DIN MountPDF DWG IGES CAD
BRKG50M-S-NDB50 Male Straight Connector, Mounting HolesPDF DWG IGES CAD
-D-Sub Panel Cutout DrawingPDF DWG
BRKG50F-R-DIN

DB50 Female Right Angle, DIN Mount

PDF DWG IGES CAD
BRKG50F-R-N

DB50 Female Right Angle, Mounting Holes

PDF DWG IGES CAD
BRKG50F-S-DIN

DB50 Female Straight Connector, DIN Mount

PDF DWG IGES CAD
BRKG50F-S-N

DB50 Female Straight Connector, Mounting Holes

PDF DWG IGES CAD
BRKG50M-R-DIN

DB50 Male Right Angle, DIN Mount

PDF DWG IGES CAD
BRKG50M-R-N

DB50 Male Right Angle, Mounting Holes

PDF DWG IGES CAD
BRKG50M-S-DIN

DB50 Male Straight Connector, DIN Mount

PDF DWG IGES CAD
BRKG50M-S-N

DB50 Male Straight Connector, Mounting Holes

PDF DWG IGES CAD
-

D-Sub Panel Cutout Drawing

PDF DWG

Connector Style

These breakout boards are available with either a Right Angle connector or a Straight ("Vertical") connector. The terms Right Angle and Straight refer to the connector itself, NOT the relationship of the mating cable to the plane of the PCB. In fact, the cable mating to a Right Angle connector is parallel to the PCB, while the cable mating to a Straight connector is perpendicular to the PCB. These are pictured below:

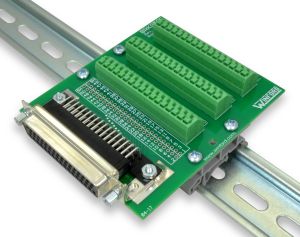

BRKG50F-R-DIN
Right Angle Connector
BRKG50F-R-DIN pictured
EnlargeClick image to enlarge.

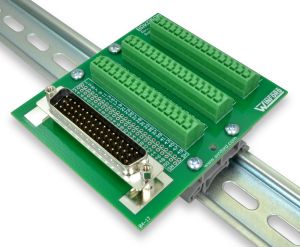

BRKG50M-S-DIN
Straight Connector
BRKG50M-S-DIN pictured
EnlargeClick image to enlarge.

Mounting Options

These products are available in two different mounting variants. Product numbers ending with -DIN come with DIN clips already installed and ready to snap onto 35mm or 32mm DIN rail. Product numbers ending with -N have no mounting hardware included; they can be easily panel-mounted by using 1/4" nylon standoffs under the mounting holes, and #6 screws.

BRKG50F-R-DIN
DIN Rail Mount
BRKG50F-R-DIN
EnlargeClick image to enlarge.
Rail not included
BRKG50F-R-N
No Mounting Hardware
BRKG50F-R-N
EnlargeClick image to enlarge.

Product Details

  • DB50 connector
  • Quick connection spring cage terminal blocks for all pins, plus shield
  • Solder pad connection holes, one (1) per line
  • Supports addition of .1" pin headers
  • Spring terminals accommodate wire sizes from 16AWG to 24AWG
  • Approximate dimensions: 3.9" x 3.4"
  • DIN rail mountable

Pricing and Ordering

Product # Description 1+ 10+ RoHS Buy Now
DB50 Female Right Angle Connector:
BRKG50F-R-DIN DB50 Female Breakout Board, R/A Connector, Screwless Push-In Spring Clamp Connection Terminal Block, DIN Rail Mount $72.75 $68.50  Yes
BRKG50F-R-N DB50 Female Breakout Board, R/A Connector, Screwless Push-In Spring Clamp Connection Terminal Block $70.60 $66.35  Yes
DB50 Female Straight Connector:
BRKG50F-S-DIN DB50 Female Breakout Board, Straight Connector, Screwless Push-In Spring Clamp Connection Terminal Block, DIN Rail Mount $72.75 $68.50  Yes
BRKG50F-S-N DB50 Female Breakout Board, Straight Connector, Screwless Push-In Spring Clamp Connection Terminal Block $70.60 $66.35  Yes
DB50 Male Right Angle Connector:
BRKG50M-R-DIN DB50 Male Breakout Board, R/A Connector, Screwless Push-In Spring Clamp Connection Terminal Block, DIN Rail Mount $72.75 $68.50  Yes
BRKG50M-R-N DB50 Male Breakout Board, R/A Connector, Screwless Push-In Spring Clamp Connection Terminal Block $70.60 $66.35  Yes
DB50 Male Straight Connector:
BRKG50M-S-DIN DB50 Male Breakout Board, Straight Connector, Screwless Push-In Spring Clamp Connection Terminal Block, DIN Rail Mount $72.75 $68.50  Yes
BRKG50M-S-N DB50 Male Breakout Board, Straight Connector, Screwless Push-In Spring Clamp Connection Terminal Block $70.60 $66.35  Yes

DB50 Female Right Angle Connector:
BRKG50F-R-DIN
RoHS   Yes
DB50 Female Breakout Board, R/A Connector, Screwless Push-In Spring Clamp Connection Terminal Block, DIN Rail Mount
QuantityPrice
1+$72.75
10+$68.50
BRKG50F-R-N
RoHS   Yes
DB50 Female Breakout Board, R/A Connector, Screwless Push-In Spring Clamp Connection Terminal Block
QuantityPrice
1+$70.60
10+$66.35
DB50 Female Straight Connector:
BRKG50F-S-DIN
RoHS   Yes
DB50 Female Breakout Board, Straight Connector, Screwless Push-In Spring Clamp Connection Terminal Block, DIN Rail Mount
QuantityPrice
1+$72.75
10+$68.50
BRKG50F-S-N
RoHS   Yes
DB50 Female Breakout Board, Straight Connector, Screwless Push-In Spring Clamp Connection Terminal Block
QuantityPrice
1+$70.60
10+$66.35
DB50 Male Right Angle Connector:
BRKG50M-R-DIN
RoHS   Yes
DB50 Male Breakout Board, R/A Connector, Screwless Push-In Spring Clamp Connection Terminal Block, DIN Rail Mount
QuantityPrice
1+$72.75
10+$68.50
BRKG50M-R-N
RoHS   Yes
DB50 Male Breakout Board, R/A Connector, Screwless Push-In Spring Clamp Connection Terminal Block
QuantityPrice
1+$70.60
10+$66.35
DB50 Male Straight Connector:
BRKG50M-S-DIN
RoHS   Yes
DB50 Male Breakout Board, Straight Connector, Screwless Push-In Spring Clamp Connection Terminal Block, DIN Rail Mount
QuantityPrice
1+$72.75
10+$68.50
BRKG50M-S-N
RoHS   Yes
DB50 Male Breakout Board, Straight Connector, Screwless Push-In Spring Clamp Connection Terminal Block
QuantityPrice
1+$70.60
10+$66.35

All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
