DB50 Breakout Board

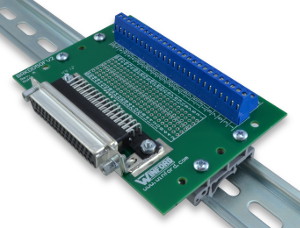

BRKDD50FV2-R-DIN

BRKDD50FV2-R-DIN
(click image to enlarge)
BRKDD50FV2-R-DIN
BRKDD50FV2-R-FT
BRKDD50FV2-R-FT (Overhead View)
BRKDD50FV2-S-DIN
BRKDD50FV2-S-FT
BRKDD50M-R-DIN

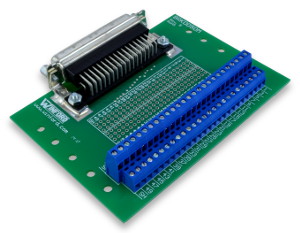

BRKDD50M-R-FT
BRKDD50M-R-FT (Overhead View)
BRKDD50M-S-DIN
BRKDD50M-S-FT
  • DB50 3-row connector
  • Perfect for prototyping DAQ and I/O board connections
  • Screw terminal for each of the 50 lines, plus shield
  • Solder pad connection space for all 50 lines, plus shield
  • Fast and easy connections
  • Double deck screw terminals provide compact wiring
  • Available with Right Angle or Straight DB50 PCB connectors
  • Rubber feet or DIN rail mount
See Also: Dual Connector DB50 Breakout Board,   More Breakout Boards,   DB50 Cables


General Description

Make connections quickly and reliably with this breakout board, which brings every pin of its DB50 connector out to screw terminals. This product is available with both male and female connectors. Double-deck screw terminals efficiently utilize board area to provide a compact footprint.

Each pin, including shield, is also brought to solder pads (3 per pin) at 0.1" spacing, allowing easy addition of pin headers or other components. Please note that the breakout boards are manufactured with a connection between each connector pin and the corresponding terminal block position; no soldering of any type is necessary. The solder pads simply provide an area for making optional connections to additional headers or other components.

This breakout board is perfect for production applications as well as experimentation and prototype work. It is helpful for working with I/O cards, Data Aquisition (DAQ) devices, and other devices that use a DB-50 connector.

Technically, the correct term for a DB50 connector is DD50, but that term is not commonly used.

Need something different? We stock a variety of DB50 breakout board styles and form factors. Please have a look!

A breakout board is sometimes referred to as a "transition module", "terminal board", "terminal block", "breakout box", "breakout adapter", "terminator", or "interface module".

Product Documents

Part #RevisionDescriptionData SheetPDF DrawingDWG DrawingIGES ModelSTEP Model
BRKDD50FV2-R-DINADB50 Female Right Angle Connector, DIN MountPDF PDF DWG IGES CAD
BRKDD50FV2-R-FTADB50 Female Right Angle Connector, Rubber FeetPDF PDF DWG IGES CAD
BRKDD50FV2-S-DINADB50 Female Straight Connector, DIN MountPDF PDF DWG IGES CAD
BRKDD50FV2-S-FTADB50 Female Straight Connector, Rubber FeetPDF PDF DWG IGES CAD
BRKDD50M-R-DINBDB50 Male Right Angle Connector, DIN MountPDF PDF DWG IGES CAD
BRKDD50M-R-FTBDB50 Male Right Angle Connector, Rubber FeetPDF PDF DWG IGES CAD
BRKDD50M-S-DINBDB50 Male Straight Connector, DIN MountPDF PDF DWG IGES CAD
BRKDD50M-S-FTBDB50 Male Straight Connector, Rubber FeetPDF PDF DWG IGES CAD
- D-Sub Panel Cutout DrawingPDF DWG
BRKDD50FV2-R-DIN Revision: A

DB50 Female Right Angle Connector, DIN Mount

PDF PDF DWG IGES CAD
BRKDD50FV2-R-FT Revision: A

DB50 Female Right Angle Connector, Rubber Feet

PDF PDF DWG IGES CAD
BRKDD50FV2-S-DIN Revision: A

DB50 Female Straight Connector, DIN Mount

PDF PDF DWG IGES CAD
BRKDD50FV2-S-FT Revision: A

DB50 Female Straight Connector, Rubber Feet

PDF PDF DWG IGES CAD
BRKDD50M-R-DIN Revision: B

DB50 Male Right Angle Connector, DIN Mount

PDF PDF DWG IGES CAD
BRKDD50M-R-FT Revision: B

DB50 Male Right Angle Connector, Rubber Feet

PDF PDF DWG IGES CAD
BRKDD50M-S-DIN Revision: B

DB50 Male Straight Connector, DIN Mount

PDF PDF DWG IGES CAD
BRKDD50M-S-FT Revision: B

DB50 Male Straight Connector, Rubber Feet

PDF PDF DWG IGES CAD
-

D-Sub Panel Cutout Drawing

PDF DWG

Mounting Options

These products are available in two different mounting variants. Product numbers ending with -DIN come with DIN clips already installed and ready to snap onto 35mm or 32mm DIN rail. Product numbers ending with -FT have stick-on rubber feet installed on the bottom side, allowing for benchtop use or panel mounting. For panel mounting, we suggest 1/4" nylon standoffs under the mounting holes, and #6 screws.

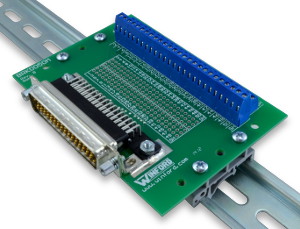

BRKDD50M-R-DIN
DIN Rail Mount
BRKDD50M-R-DIN
EnlargeClick image to enlarge.
Rail not included
BRKDD50M-R-FT
Rubber Feet
BRKDD50M-R-FT
EnlargeClick image to enlarge.

Product Details

  • DB50 (three row) connector
  • Screw terminal for each of the 50 lines, plus shield
  • Solder pad connection holes, three (3) per line
  • Screw terminals accommodate wire sizes from 16AWG to 26AWG
  • Available with Right Angle or Straight DB50 PCB connectors
  • Approximate dimensions: 3.15" x 4.6"
  • Rubber feet or DIN rail mount

Pricing and Ordering

Product # Description 1+ 10+ RoHS Buy Now
DB50 Female Right Angle Connector:
BRKDD50FV2-R-DIN DB50 Female Breakout Board, R/A Connector, DIN Rail Mount $87.20 $82.95  Yes
BRKDD50FV2-R-FT DB50 Female Breakout Board, R/A Connector, Feet $85.60 $81.30  Yes
DB50 Female Straight Connector:
BRKDD50FV2-S-DIN DB50 Female Breakout Board, Straight Connector, DIN Rail Mount $87.20 $82.95  Yes
BRKDD50FV2-S-FT DB50 Female Breakout Board, Straight Connector, Feet $85.60 $81.30  Yes
DB50 Male Right Angle Connector:
BRKDD50M-R-DIN DB50 Male Breakout Board, R/A Connector, DIN Rail Mount $87.20 $82.95  Yes
BRKDD50M-R-FT DB50 Male Breakout Board, R/A Connector, Feet $85.60 $81.30  Yes
DB50 Male Straight Connector:
BRKDD50M-S-DIN DB50 Male Breakout Board, Straight Connector, DIN Rail Mount $87.20 $82.95  Yes
BRKDD50M-S-FT DB50 Male Breakout Board, Straight Connector, Feet $85.60 $81.30  Yes

DB50 Female Right Angle Connector:
BRKDD50FV2-R-DIN
RoHS   Yes
DB50 Female Breakout Board, R/A Connector, DIN Rail Mount
QuantityPrice
1+$87.20
10+$82.95
BRKDD50FV2-R-FT
RoHS   Yes
DB50 Female Breakout Board, R/A Connector, Feet
QuantityPrice
1+$85.60
10+$81.30
DB50 Female Straight Connector:
BRKDD50FV2-S-DIN
RoHS   Yes
DB50 Female Breakout Board, Straight Connector, DIN Rail Mount
QuantityPrice
1+$87.20
10+$82.95
BRKDD50FV2-S-FT
RoHS   Yes
DB50 Female Breakout Board, Straight Connector, Feet
QuantityPrice
1+$85.60
10+$81.30
DB50 Male Right Angle Connector:
BRKDD50M-R-DIN
RoHS   Yes
DB50 Male Breakout Board, R/A Connector, DIN Rail Mount
QuantityPrice
1+$87.20
10+$82.95
BRKDD50M-R-FT
RoHS   Yes
DB50 Male Breakout Board, R/A Connector, Feet
QuantityPrice
1+$85.60
10+$81.30
DB50 Male Straight Connector:
BRKDD50M-S-DIN
RoHS   Yes
DB50 Male Breakout Board, Straight Connector, DIN Rail Mount
QuantityPrice
1+$87.20
10+$82.95
BRKDD50M-S-FT
RoHS   Yes
DB50 Male Breakout Board, Straight Connector, Feet
QuantityPrice
1+$85.60
10+$81.30

All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
