DB9 Breakout Board with DIN Carrier
- Available with DB9 Male or Female connector
- 5mm pitch terminals for up to 12AWG wire
- Screw terminal for each of the 9 lines, plus shield
- Installed in DIN carrier
General Description
Make connections quickly and reliably with this breakout board, which brings every pin of its DB9 connector out to screw terminals.
This product is available with both male and female connectors. This board comes installed in a DIN carrier, which provides protection for the circuit board as well as quick and convienient mounting to a DIN rail.
The 5mm pitch screw terminals provide comfortable space for wiring and accommodate larger gauge wires than our standard 3.5mm pitch screw terminals. Test pads are included behind each corresponding terminal block position.
This product is designed to support higher currents (up to 3A depending on conditions; contact Winford for exact specs).
This breakout board is perfect for production applications as well as experimentation and prototype work. It is helpful for working with RS-232 serial ports, MODBUS connections, I/O cards, and other devices that use a DB-9 connector.
Technically, the correct term for a DB9 connector is DE9, but that term is not commonly used.
Need something different? We stock a variety of DB9 breakout board styles and form factors. Please have a look!
A breakout board is sometimes referred to as a "transition module", "terminal board", "terminal block", "breakout box", "breakout adapter", "terminator", or "interface module".
 |
Need an enclosed breakout board? Winford offers our BRKE line of boards, which come installed in enclosures. |
Product Documents
| Part # | Description | PDF Drawing | DWG Drawing | IGES Model | STEP Model |
|---|---|---|---|---|---|
| BRKAWD9F-S-DC | DB9 Female, Straight, DIN Carrier |
|
|
|
|
| BRKAWD9M-S-DC | DB9 Male, Straight, DIN Carrier |
|
|
|
|
DB9 Female, Straight, DIN Carrier
DB9 Male, Straight, DIN Carrier
Mounting Options

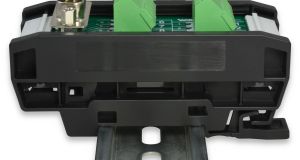

These products come installed in a DIN carrier. The DIN carrier provides protection for the circuit board as well as a sturdy and secure mounting solution to 35mm DIN rail.
Click image to enlarge.Product Details
- DB9 connector
- Screw terminal for each of the 9 lines, plus shield
- Screw terminals accommodate wire sizes from 12AWG to 24AWG
- Installed in DIN carrier
 |
Need a quality screwdriver for your breakout boards? Winford sells Wiha screwdrivers! |
Pricing and Ordering
| Product # | Description | 1+ | 10+ | RoHS | Buy Now |
|---|---|---|---|---|---|
| BRKAWD9F-S-DC | DB9 Female Breakout Board, Straight Connector, 5mm Pitch Terminals, DIN Carrier | $24.50 | $22.10 | Yes | |
| BRKAWD9M-S-DC | DB9 Male Breakout Board, Straight Connector, 5mm Pitch Terminals, DIN Carrier | $24.50 | $22.10 | Yes |
| Quantity | Price |
|---|---|
| 1+ | $24.50 |
| 10+ | $22.10 |
| Quantity | Price |
|---|---|
| 1+ | $24.50 |
| 10+ | $22.10 |
All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
