DB25 Breakout Board

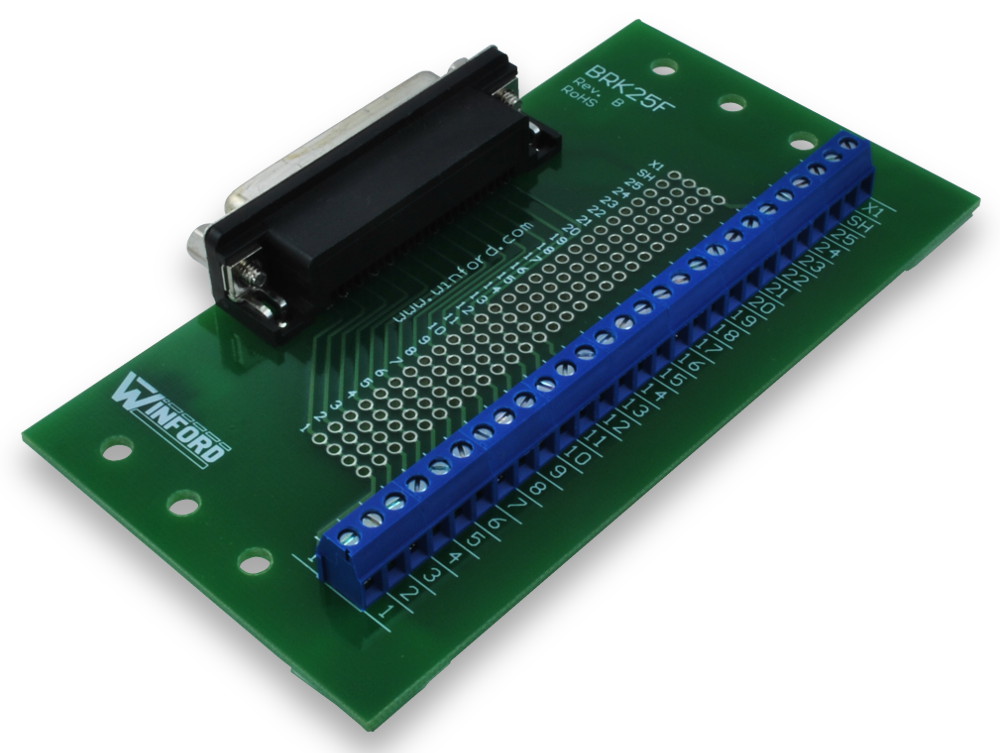

BRK25F-R-FT

(click image to enlarge)

Available with DB25 Male or Female connector
Perfect for prototyping parallel port and serial port circuits
Screw terminal for each of the 25 lines, plus shield
Solder pad connection space for all 25 lines, plus shield
Supports addition of .1" pin headers
Rubber feet or DIN rail mount

Scroll to Buy

See Also: More Breakout Boards, DB25 Cables, DB25 Connectors

Since the DB25 is a very widely used connector in data acquisition devices and other computer peripherals, a variety of vendors offer DB25 breakout boards which provide quick and and convenient access to these connectors.

Winford Engineering's BRK25 breakout boards are quite similar to breakout boards offered by other vendors and can be used as substitutes in many situations. For each vendor, the model number of their DB25 breakout board is given, as well as a list of DAQ devides which would typically require a breakout board.

Vendor	DB25 Breakout	DAQ Devices
Measurement Computing Corporation	CIO-MINI25	CIO-DAC02 CIO-DAC02/16
LabJack	CB25	U12
MicroKinetics Corporation	BREAKOUT-25-OP	OptiStep Plus-PC

Connector Style

These breakout boards are available with either a Right Angle connector or a Straight ("Vertical") connector. The terms Right Angle and Straight refer to the connector itself, NOT the relationship of the mating cable to the PCB. In fact, the cable mating to a Right Angle connector is parallel to the PCB, while the cable mating to a Straight connector is perpendicular to the PCB. These are pictured below:

Right Angle Connector
BRK25F-R-FT pictured
Enlarge

Click image to enlarge.

Straight Connector
BRK25F-S-FT pictured
Enlarge

Click image to enlarge.

Mounting Options

These products are available in two different mounting variants. Product numbers ending with -DIN come with DIN clips already installed and ready to snap onto 35mm or 32mm DIN rail. Product numbers ending with -FT have stick-on rubber feet installed on the bottom side, allowing for benchtop use or panel mounting. For panel mounting, we suggest 1/4" nylon standoffs under the mounting holes, and #6 screws.

DIN Rail Mount
BRK25MV2-R-DIN
Enlarge

Click image to enlarge.
Rail not included

Rubber Feet
BRK25MV2-R-FT
Enlarge

Click image to enlarge.

For more information, please see:

Main BRK25 Product Page

Need a quality screwdriver for your breakout boards? Winford sells Wiha screwdrivers!

Pricing and Ordering

Product #	Description	1+	10+	RoHS
DB25 Female Right Angle Connector:
BRK25F-R-DIN	DB25 Female Breakout Board, R/A Connector, DIN Rail Mount	$23.00	$21.95	Yes
BRK25F-R-FT	DB25 Female Breakout Board, R/A Connector, Feet	$21.40	$20.35	Yes
DB25 Female Straight Connector:
BRK25F-S-DIN	DB25 Female Breakout Board, Straight Connector, DIN Rail Mount	$23.55	$22.45	Yes
BRK25F-S-FT	DB25 Female Breakout Board, Straight Connector, Feet	$21.95	$20.85	Yes
DB25 Male Right Angle Connector:
BRK25MV2-R-DIN	DB25 Male Breakout Board, R/A Connector, DIN Rail Mount	$23.00	$21.95	Yes
BRK25MV2-R-FT	DB25 Male Breakout Board, R/A Connector, Feet	$21.40	$20.35	Yes
DB25 Male Straight Connector:
BRK25MV2-S-DIN	DB25 Male Breakout Board, Straight Connector, DIN Rail Mount	$23.55	$22.45	Yes
BRK25MV2-S-FT	DB25 Male Breakout Board, Straight Connector, Feet	$21.95	$20.85	Yes
