National Instruments NI-9237 Adapter Board

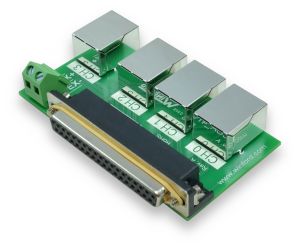

Z_CCA_4798 (DB37 End)

(click image to enlarge)

Compatible with NI-9237
Contains (1) DB37 female connector and (4) RJ50 connectors
Screw terminal for Sensor Excitation Connection

Scroll to Buy

See Also: More Breakout Boards, Extension Cables

General Description

National Instruments™ offers the NI-9237 in two connector configurations: a single DB37 connector (P/N 780264-02) or four RJ50 connectors (P/N 779521-01) . This Z_CCA_4798 adapter board will connect to the NI-9237 DB37 module (P/N 780264-02) and break out the DB37 connection to four RJ50 connectors, providing the same external connector configuration as the RJ50 module (P/N 779521-01).

Note: "National Instruments" and "NI" are trademarks of National Instruments. Neither Winford Engineering, nor any software programs or other goods or services offered by Winford Engineering, are affiliated with, endorsed by, or sponsored by National Instruments.

Product Documents

Part #	Description	PDF Drawing
Z_CCA_4798	NI-9237 Adapter Board

Z_CCA_4798

NI-9237 Adapter Board

Product Details

Screw terminal for Sensor Excitation Connection

Need a quality screwdriver for your breakout boards? Winford sells Wiha screwdrivers!

Pricing and Ordering

Product #	Description	1+	10+	RoHS	Buy Now
Z_CCA_4798	Adapter Board for NI-9237; DB37 Female with Captive Screws to 4x RJ50 Right Angle Connectors; Electrical Test Included	$68.00	$62.00	Yes

Z_CCA_4798

RoHS Yes

Adapter Board for NI-9237; DB37 Female with Captive Screws to 4x RJ50 Right Angle Connectors; Electrical Test Included

Quantity	Price
1+	$68.00
10+	$62.00

All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
