DIN Rail Equipment Test Racks

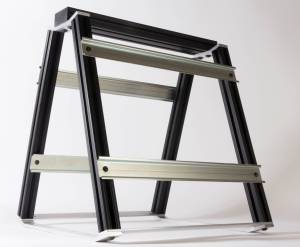

TS-QTTR14 -- 14" Width

TS-QTTR14 -- 14" Width
(click image to enlarge)
TS-QTTR14 -- 14" Width
TS-QTTR14 (equipment not included)
TS-QTTR22 -- 22" Width
TS-QTTRxx -- Sturdy Construction
  • Neatly mount your DIN rail devices
  • Sturdy construction
  • Partial assembly required
  • Versatile, adjustable layout
  • Two rack widths available: 14" and 22"
  • Comes with 35mm x 7.5mm depth DIN rail sections already installed
See Also: DIN Rail,   DIN Rail Clips


General Description

Quickly mount and wire up your system components using the TesRac DIN rail test rack from QuepTech. Built from a lightweight aluminum channel frame, the TesRac is compact and sturdy -- perfect for a lab test bench or more permanent installations.

DIN rails may be added, removed, or re-positioned nearly anywhere on the A-frame design. The base includes mounting holes to add a 120 VAC power strip and/or power distribution boards. The A-frame design increases usable space for a given bench area. With the 14" TesRac, you can mount more than 392 sq. in. of DIN rail equipment in 192 sq. in. of bench space. Plus, if you use the A-Frame ends, you pick up an additional 230.75 sq. in. That's 622.75 sq. in. of usable space in a 192 sq. in. area.

When you need to do a 6-month burn-in, use TesRac. You'll save on lab space and keep your setup safe. If you just have a messy test setup, build your TesRac once and store it away until you need it again. TesRac provides a neat, solid platform on which to build your system and a compact means to store it for future use.

Shipping Note

Like all other Winford products, these racks can ship with the $8.00 flat-rate shipping option.

Extra DIN Rails

Extra DIN rail sections can be purchased from the table below. Like the main DIN rail that comes with the rack, these sections are solid (not slotted), cut to the correct length, and have a hole in each end for attaching to the test rack. Each rail comes with the the needed T-screws and wing nuts for attaching to the rack. Note that you will need to partially disassemble your rack to be able to slip the T-screws into your rack's black aluminum channels.

Product Details

  • Partial assembly required
  • Versatile, adjustable layout
  • Two rack widths available: 14" and 22"
  • Comes with 35mm x 7.5mm depth DIN rail sections already installed
  • TS-QTTR14 Footprint: approx 13.375" x 14"
  • TS-QTTR22 Footprint: approx 13.375" x 22"
  • Overall height: approx 16.5", including top handle (both sizes)

Pricing and Ordering

Product # Description PriceRoHS Buy Now
Test Racks:
TS-QTTR14 Test Rack, 14" Length, with 4 DIN Rails $300.00  Yes
TS-QTTR22 Test Rack, 22" Length, with 4 DIN Rails $325.00  Yes
Extra DIN Rails:
TS-QTRH14 Extra 14" DIN Rail Section and Hardware for TS-QTTR14 $17.00  Yes
TS-QTRH22 Extra 22" DIN Rail Section and Hardware for TS-QTTR22 $18.00  Yes

Test Racks:
TS-QTTR14
RoHS   Yes
Test Rack, 14" Length, with 4 DIN Rails
QuantityPrice
1+$300.00
TS-QTTR22
RoHS   Yes
Test Rack, 22" Length, with 4 DIN Rails
QuantityPrice
1+$325.00
Extra DIN Rails:
TS-QTRH14
RoHS   Yes
Extra 14" DIN Rail Section and Hardware for TS-QTTR14
QuantityPrice
1+$17.00
TS-QTRH22
RoHS   Yes
Extra 22" DIN Rail Section and Hardware for TS-QTTR22
QuantityPrice
1+$18.00
