Captive Screws

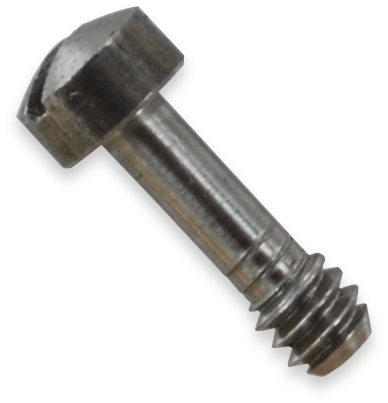

<b>SCCPS-4-B-0.337</b>

SCCPS-4-B-0.337
(click image to enlarge)
<b>SCCPS-4-B-0.337</b>
<b>SCCPS-4-B-0.337</b> (Installed in IDC DSUB)
<b>SCCPS-4-B-0.337</b> (Installed in PCB DSUB)
  • Perfect for securing DSUB connectors
  • #4-40 threads
  • RoHS Compliant
See Also: DSUB PCB Mount Connectors,   DSUB IDC Flat Ribbon Connectors


General Description

These steel captive panel screws work well for securing DSUB connectors together. They are particularly suited for Right Angle PCB D-Sub connectors or IDC D-Sub connectors which have clinch nuts installed. The reduced shank above the threads of the captive screw allows the screw to spin freely in the connector while still being retained so it will not easily fall out when it is not threaded into the mating connector.

Note that these aren't designed for D-Sub connectors that DON'T have a clinch nut built in, such as standard solder-cup connectors, standard Right Angle PCB connectors, or IDC connectors that have unthreaded holes instead of clinch nuts.

Winford Engineering uses these screws on some of the products which we build and sell, including the 'slim' series of DSUB breakout boards, such as the BRKSD15M-C shown below in the Applications section.

These screws are sold in bags of Qty 10 or Qty 100.

    Captive Screw Specifications
    Material: Nickel-Plated Steel
    Head Style: Slotted Pan Head
    Thread: #4-40
    Total Length Under Head: 0.337"
    Thread Length: 0.100"

Applications

The captive screws are shown installed in an insulation displacment type (IDC) DSUB connector and in a right angle PCB mount DSUB connector.

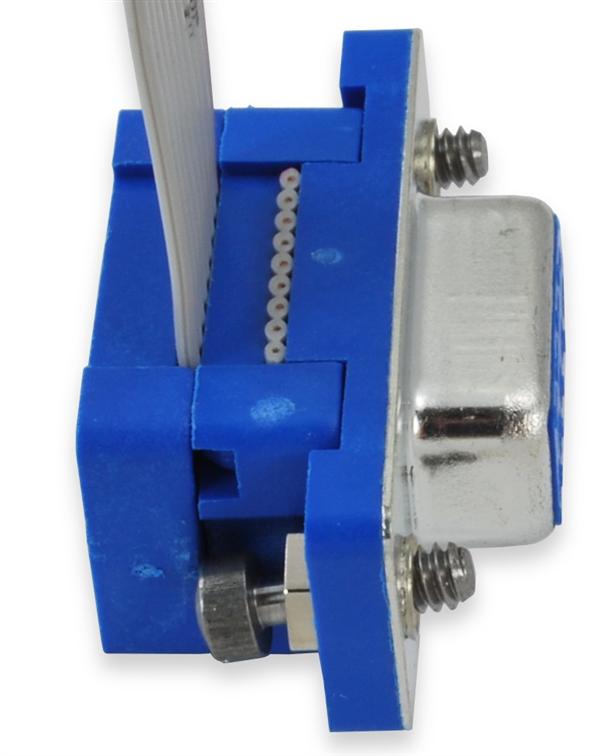

DSUB IDC Connector with Captive Screws Installed
DSUB IDC Connector
EnlargeClick image to enlarge.
DSUB PCB Connector with Captive Screws Installed
DSUB PCB Connector
EnlargeClick image to enlarge.
DSUB Breakout Board with Captive Screws Installed
BRKSD15M-C Breakout Board
EnlargeClick image to enlarge.

Product Details

  • #4-40 threads
  • Total length under screw head: 0.337"
  • Thread length: 0.100"
  • Material: Steel
  • RoHS Compliant

Pricing and Ordering

Product # Description 1+ 5+ 10+ RoHS Buy Now
SCCPS-4-B-0.337-10 Captive Screw, #4-40, 0.337" Under Head Length, 0.100" Thread Length, Nickel Plated, Bag of 10 $7.80 $7.00 $6.50  Yes
SCCPS-4-B-0.337-100 Captive Screw, #4-40, 0.337" Under Head Length, 0.100" Thread Length, Nickel Plated, Bag of 100 $60.00 $55.00 $50.00  Yes

SCCPS-4-B-0.337-10
RoHS   Yes
Captive Screw, #4-40, 0.337" Under Head Length, 0.100" Thread Length, Nickel Plated, Bag of 10
QuantityPrice
1+$7.80
5+$7.00
10+$6.50
SCCPS-4-B-0.337-100
RoHS   Yes
Captive Screw, #4-40, 0.337" Under Head Length, 0.100" Thread Length, Nickel Plated, Bag of 100
QuantityPrice
1+$60.00
5+$55.00
10+$50.00

All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
