4-Channel 2A DPDT Relay Board: RLYD304

<b>RLYD304-24V-DIN</b>

RLYD304-24V-DIN
(click image to enlarge)
<b>RLYD304-24V-DIN</b>
<b>RLYD304-24V-FT</b>
<b>RLYD304-24V-FT</b> (Overhead View)
  • Provides quick and easy relay wiring
  • Four DPDT relays and drivers
  • Accepts TTL logic level control inputs
  • Currently available in 24V coil voltage
  • Screw terminal connections
  • Convenient for data acquisition & signal switching projects
  • LED indicator for each relay
  • Relay contacts rated up to 2A at 24VDC, 1A at 120VAC
  • Gold-clad contacts suitable for low-level signals down to 10uA
  • Rated for resistive loads (not inductive loads / motors)
  • Available in rubber feet or DIN rail mount
See Also: 4-Channel 2A DPDT Relay Boards,   All Relay Boards


General Description

Featuring gold-clad relay contacts that will not oxidize or tarnish, this DPDT relay board provides a convenient way to switch low-level signals in your data acquisition project (e.g., multiplexing sensors being read with a single ADC input). It is also suitable for use in automated failure-injection testing (e.g., short-open testing for sensor harness FMEA verification) or a variety of other applications.

This board includes four DPDT relays, logic-level relay driver circuits, and protection diodes. Simply provide the board with power, connect your logic-level signals to the inputs, and the relay contacts are ready to use. The relay contacts are electrically isolated from the rest of the board, which allows the board to be used in a wide variety of low-current applications, including both AC and DC loads.

With this relay board, a logic-level signal (e.g., 3.3V or 5V) or higher-voltage signal (up to 25V) can be used to control each relay. Examples of logic-level signals include the outputs of an I/O card or a microcontroller's output pins (e.g., Arduino or Raspberry Pi).

Please note that the relay coil voltage has no effect whatsoever on the voltages you can switch with the relay contacts -- the relay coils are electrically isolated from the relay contacts. For example, the RLYD304-24V relay board contains relays whose coils require 24V; but the relay contacts can switch elecrical loads up to 100 VDC. Also note that the relay coil voltage does NOT affect what voltage is needed for the relay board control signal inputs. An input control signal from 2.5VDC up through 25VDC will activate the relay, regardless of the relay coil voltage. The on-board driver chip provides this functionality. See datasheet for input current requirements.

Mounting Options

These products are available in two different mounting variants. Product numbers ending with -DIN come with DIN clips already installed and ready to snap onto 35mm or 32mm DIN rail. Product numbers ending with -FT have stick-on rubber feet installed on the bottom side, allowing for benchtop use or panel mounting. For panel mounting, we suggest 1/4" nylon standoffs under the mounting holes, and #6 screws.

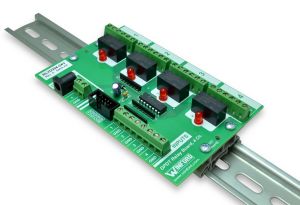

RLYD304-24V-DIN
DIN Rail Mount
RLYD304-24V-DIN
EnlargeClick image to enlarge.
Rail not included

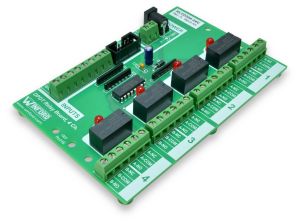

RLYD304-24V-FT
Rubber Feet
RLYD304-24V-FT
EnlargeClick image to enlarge.

Product Documents

Part #DescriptionData SheetSchematicPDF DrawingDWG DrawingIGES ModelSTEP Model
RLYD304-xxV-DINRLYD304 4-Channel DPDT Relay Board, DIN MountPDF PDF PDF DWG IGES CAD
RLYD304-xxV-FTRLYD304 4-Channel DPDT Relay Board, Rubber FeetPDF PDF PDF DWG IGES CAD
RLYD304-xxV-DIN

RLYD304 4-Channel DPDT Relay Board, DIN Mount

PDF PDF PDF DWG IGES CAD
RLYD304-xxV-FT

RLYD304 4-Channel DPDT Relay Board, Rubber Feet

PDF PDF PDF DWG IGES CAD

Product Details

  • Four DPDT relays and drivers
  • Accepts TTL logic level control inputs
  • Currently available in 24V coil voltage
  • LED indicator for each relay
  • Relay contacts rated up to 2A at 24VDC, 1A at 120VAC
  • Gold-clad contacts suitable for low-level signals down to 10uA
  • Rated for resistive loads (not inductive loads / motors)
  • Screw terminals for control inputs(accepts 16-26 AWG wire)
  • Screw terminals for contacts (accepts 16-30 AWG wire)
  • 0.1" header provided for input control signals (in addition to screw terminals)
  • Power supply may be connected via DC power jack or via screw terminals.
  • Approximate dimensions: 3.4" x 5.2"
  • Available in rubber feet or DIN rail mount

Pricing and Ordering

Product # Description 1+ 10+ 50+ RoHS Buy Now
24V Power:
RLYD304-24V-DIN Relay Board, TTL, 2A DPDT, 4 relays, 24V DC, DIN Rail Mount $47.30 $44.50 $42.30  Yes
RLYD304-24V-FT Relay Board, TTL, 2A DPDT, 4 relays, 24V DC, Rubber Feet $44.50 $41.75 $39.50  Yes

24V Power:
RLYD304-24V-DIN
RoHS   Yes
Relay Board, TTL, 2A DPDT, 4 relays, 24V DC, DIN Rail Mount
QuantityPrice
1+$47.30
10+$44.50
50+$42.30
RLYD304-24V-FT
RoHS   Yes
Relay Board, TTL, 2A DPDT, 4 relays, 24V DC, Rubber Feet
QuantityPrice
1+$44.50
10+$41.75
50+$39.50

All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
