Breakout for Arduino NANO

RDBKNAN1-DIN

RDBKNAN1-DIN
(click image to enlarge)
  • Socket headers allow Arduino NANO to be inserted or removed as needed
  • Signals are accessible at terminal blocks as well as thru-hole pads
  • Design allows user to easily add their own DC-DC converter for operation at higher supply voltages
  • Includes prototype area
  • Mounting Options: Rubber Feet or DIN Rail
  • Arduino MICRO and DIN rail not included

Scroll to Buy


General Description

The RDBKNAN1 provides a convenient method to connect to an Arduino NANO.

After plugging an Arduino NANO into the socket headers, signals may be conveniently accessed at terminal blocks and/or thru-hole pads. A number of convenient design features, such as a prototype area and pads that accommodate a DC-DC* converter for operation from higher supply voltages, facilitate the inclusion of an Arduino NANO in a variety of projects.

*See app note section for more information. DC-DC converter is not included with RDBKNAN1.

Signal Connections

The signal connections on this product are clearly marked. Please note the following details:

1. All ground connections (GND) shown on this breakout board are electrically connected together (with or without a NANO module plugged in).

2. There are two signals dedicated to Reset (RST). Without a NANO module plugged in, these signals are not connected. When a NANO is plugged in, these signals are connected (thru the NANO).


A breakout board is sometimes referred to as a "transition module", "terminal board", "terminal block", "breakout box", "breakout adapter", "terminator", or "interface module".

Product Documents

DescriptionData SheetApp Note
RDBKNAN1 Details
Using NANO with higher supply voltage
RDBKNAN1
RDBKNAN1 Details
RDBKNAN1 Series
Using NANO with higher supply voltage

Mounting Options

These products are available in two different mounting variants. Product numbers ending with -DIN come with DIN clips already installed and ready to snap onto 35mm or 32mm DIN rail. Product numbers ending with -FT have stick-on rubber feet installed on the bottom side, allowing for benchtop use or panel mounting. For panel mounting, we suggest 1/4" nylon standoffs under the mounting holes, and #6 screws.

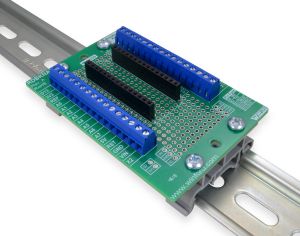

RDBKNAN1-DIN
DIN Rail Mount
RDBKNAN1-DIN
Click image to enlarge.
Rail not included

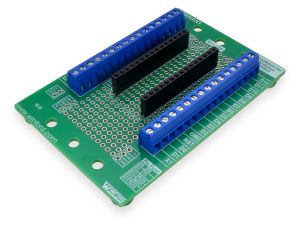

RDBKNAN1-FT
Rubber Feet
RDBKNAN1-FT
Click image to enlarge.

Product Details

  • Socket headers allow Arduino NANO to be inserted or removed as needed
  • Signals are accessible at terminal blocks as well as thru-hole pads
  • Two extra terminal block positions are included and are terminated at thru-hole pads
  • High-quality rising cage clamp terminal blocks provide consistent performance over time
  • Screw terminals accept 16-26 AWG wire
  • Design allows user to easily add their own DC-DC converter for operation at higher supply voltages
  • Includes prototype area
  • Prototype area includes pads tied to 3.3V, 5V, and GND
  • Pin functions are clearly shown on the PCB
  • Approximate dimensions: 3.4" x 2.3"
  • Mounting Options: Rubber Feet or DIN Rail


Pricing and Ordering

Product # Description 1+ 10+ RoHS Buy Now
RDBKNAN1-DIN Breakout for Arduino NANO -- 3.5mm term blocks, thru-hole signal access points, small proto area, DIN mount $17.50 $16.50 Yes
RDBKNAN1-FT Breakout for Arduino NANO -- 3.5mm term blocks, thru-hole signal access points, small proto area, rubber feet $16.00 $15.00 Yes
RDBKNAN1-DIN
Breakout for Arduino NANO -- 3.5mm term blocks, thru-hole signal access points, small proto area, DIN mount
RoHS: Yes
Buy Now:
QuantityPrice
1+$17.50
10+$16.50
RDBKNAN1-FT
Breakout for Arduino NANO -- 3.5mm term blocks, thru-hole signal access points, small proto area, rubber feet
RoHS: Yes
Buy Now:
QuantityPrice
1+$16.00
10+$15.00

All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
