DIN Rail End Stop, Steel, 10mm Width

DINS3501A-A (On Rail)

(click image to enlarge)

Sturdy and Versatile
Clips onto 35mm DIN rail
Material: Steel
DIN Rail not included

Scroll to Buy

See Also: DIN Rail, More DIN Clips, DIN Mounting Plates

General Description

These sturdy DIN rail end stops come in handy for a wide variety of projects where it is required that DIN Rail mounted devices don't move side-to-side. The screw actuated stop provides a secure end point to prevent device movement.

They may also be useful in the rare occurance that DIN Rail is mounted vertically in a panel, preventing the devices from sliding downward, even though the vertical DIN Rail orientation is not recommended for some devices.

We also offer a variety of mounting clips and plates.

Installation and Removal from DIN Rail

When installing a DIN Rail End Stop it is best to follow the step-by step intructions shown below for proper installation.

Step 1: Hook the longer hook (bottom) onto the DIN Rail. The arrow stamped on the product should be pointed up.

Step 2: Rotate the DIN rail stop so it is parallel with the DIN Rail.

Step 3: Push down on the stop so that the short hook engages the DIN rail.

Step 4: Tighten the screw so that the DIN stopper engages the rail and is locked in position.

For removal, just reverse the steps taken to install it.

Product Documents

Part #	Description	PDF Drawing	DWG Drawing	IGES Model	STEP Model
DINS3501A-A	DIN Rail End Stop

DINS3501A-A

DIN Rail End Stop

Product Details

Sturdy and Versatile
Clips onto 35mm DIN rail
Material: Steel
DIN Rail not included

Pricing and Ordering

Product #	Description	1+	10+	50+	100+	RoHS	Buy Now

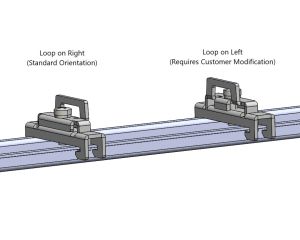

DINS3501A-A	DIN Rail End Stop, Steel, 10mm Width, Screw Activation, Loop on Right	$1.00	$0.92	$0.85	$0.65	Yes

DINS3501A-A

RoHS Yes

DIN Rail End Stop, Steel, 10mm Width, Screw Activation, Loop on Right

Quantity	Price
1+	$1.00
10+	$0.92
50+	$0.85
100+	$0.65
