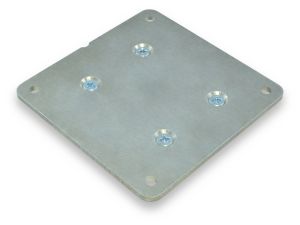

DIN Rail Mounting Plate for 75x75mm VESA Displays & Devices - Aluminum
- Mount your VESA device on a DIN rail
- Sturdy construction
- Plate size: 3.54" x 3.54"
- Mounting hole pattern: 75x75mm
- Constructed of 0.125" thick Aluminum plate material
- Clips onto 35mm DIN rail
General Description
Use these sturdy DIN rail mounting plates to mount devices with 75x75mm VESA mounting holes to standard 35mm DIN rail. Although the VESA hole pattern was originally designed for flat panel displays such as monitors and TVs, it has also been used for small PCs, all-in-one PCs, keyboard trays, etc. This product features a flat plate mounting surface to which you can mount your device, and two metal DIN rail brackets provide a stable attachment to the DIN rail.
Pre-drilled holes are located to accommodate VESA 75x75mm hole pattern devices. We also offer similar products to fit the more common 100x100mm pattern. Simply attach your device to the plate, and your VESA mount device has become a DIN mount device!
The mounting plate is made of sturdy 0.125" thick Aluminum plate material. It comes with a sturdy steel DIN rail bracket (part# DINM21) installed on the plate. The steel bracket may be purchased alone if you desire the bracket without the adapter plate.
These adapter plates are alternately known as DIN rail mounting plates, DIN adapter plates, DIN rail brackets, etc. We sell many varieties of universal DIN rail mounting plates and DIN clips for numerous applications.
Application Examples
The photos below show devices with a VESA 100x100mm hole pattern mounted to the DINP06-ZVE100A (a different product), which is mounted on a DIN rail. The result is similar on this 75x75mm product.
Click image to enlarge.
Click image to enlarge.
Installation and Removal
Mounting Your Devices
To mount a device onto the plate, use the pre-drilled holes in each corner of the plate. Or, for non-standard applications, add your own holes to suit your needs.
Installing and Removing the Plate Assembly on DIN Rail
These DIN rail plate assemblies are easily attached and detached from the DIN rail. When on the rail, the bracket latches to the rail on both the top and bottom lips of the rail. The bracket should be oriented such that the "fixed" (non spring-loaded) end of the bracket mounts to the top of the DIN rail, thus allowing the fixed end to bear the load. The spring-loaded sliding hooks will then grip the bottom of the DIN rail. This arrangement provides the greatest rigidity and load capacity.
There are two methods for removing the plate from the DIN rail:
- Lift & Pivot Method: In most cases, the simplest method is to push up on the assembly, pivot the top out away from the rail, and lower the entire assembly off the rail. This technique does not require access to the release handle on the bracket, which makes this method easier.
- Latch Release Method: If, for some reason, the Lift & Pivot method does not work for your application, you can also remove the plates from the DIN rail using the release handle on the bracket. Either pull the handle from the bottom edge of the bracket (see our lanyards, sold separately), or push the handle down from the top edge of the bracket. This releases the sliding hooks that grip the bottom of the rail and allows the bottom edge of the bracket to swing out away from the DIN rail. The entire plate and your mounted device can then be lifted off the DIN rail.
Product Documents
| Part # | Description | PDF Drawing | DWG Drawing | IGES Model | STEP Model |
|---|---|---|---|---|---|
| DINPA01-ZVE75A | DIN Plate, Aluminum, for 75x75mm VESA Display Devices |
|
|
|
|
DIN Plate, Aluminum, for 75x75mm VESA Display Devices
Product Details
- Plate size: 3.54" x 3.54"
- Mounting hole pattern: 75x75mm
- Constructed of 0.125" thick Aluminum plate material
- 44.2mm wide steel DIN bracket attaches to rail
- Clips onto 35mm DIN rail
- Color: silver/gray
- DIN Rail not included
Pricing and Ordering
| Product # | Description | 1+ | 10+ | RoHS | Buy Now |
|---|---|---|---|---|---|
| DINPA01-ZVE75A | DIN Rail Mounting Plate for VESA Displays & Devices with 75x75mm Hole Pattern; Aluminum Material; for 35mm DIN Rail | $19.20 | $18.03 | Yes |
| Quantity | Price |
|---|---|
| 1+ | $19.20 |
| 10+ | $18.03 |
All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
