Cable Ties, Self-Mount Push-Fit
- Useful for strain relief and cable management
- Snaps into a hole for easy mounting
- Slim design -- 4.5" long x 0.10" wide
- RoHS Compliant
General Description
These self-mount / snap-in cable ties work very well as strain reliefs and for cable management. These cable ties are 4.5" long and 0.10" wide, and they work well for holding cables and wire bundles.

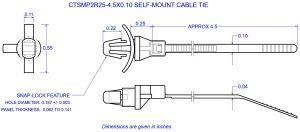

The riser height (0.25") is the distance from the panel surface to the bottom of the loop, as installed in the application. Product dimensions are shown in the product drawing.
Applications
We recommend these cable ties for securing wires and cables to various breakout boards and DIN plates, including the PIBK01 breakout board and the DINP03-NV01 DIN mounting plate for the Jetson Nano computer.
Product Details
- Slim design -- 4.5" long x 0.10" wide
- For mounting in hole diameter of 0.188" (3/16")
- Panel Thickness: 0.062" to 0.141"
- Riser Height (if applicable): See Ordering Table
Pricing and Ordering
| Product # | Description | 1+ | 10+ | RoHS | Buy Now |
|---|---|---|---|---|---|
| CTSMP2R25-4.5x0.10-NAT-10 | Zip Tie, Self-Mount, for 1/16" - 9/64" Nominal Panel Thickness, with 0.25" Riser, Width=0.10", Length=4.5"; Color: Natural, Bag of 10 | $3.00 | $2.80 | Yes |
| Quantity | Price |
|---|---|
| 1+ | $3.00 |
| 10+ | $2.80 |
All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
