MDR (Mini Delta Ribbon) 68-Pin Cables

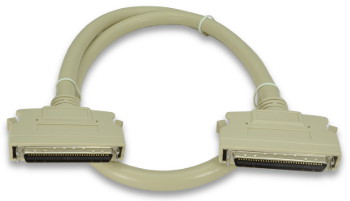

CBMDR68MB-3 (MDR Cable)

CBMDR68MB-3 (MDR Cable)
(click image to enlarge)
CBMDR68MB-3 (MDR Cable)
CBMDR68MB-6 (MDR Cable)
68-Pin MDR Male Connector
  • MDR 68-pin connectors
  • Male connector on each end
  • Overmolded ends with strain reliefs
  • Twisted pair wiring with cable shield
See Also: 68-Pin MDR Breakout Board,   50-Pin MDR Cables,   All Breakout Boards


General Description

Centronics, MDR, VHDCI, HPDSUB  Connector Guide

Use these cables to interconnect equipment which utilizes 68-pin MDR (Mini Delta Ribbon) connectors. These attractive cables feature 68-pin MDR Male connectors on each end, overmolded ends with strain reliefs, twisted pair wiring, and a shielded cable jacket. Latches secure the cable to the mating connector. Two cable lengths (3 feet and 6 feet) are available. These cables are general purpose and are compatible with Winford Engineering's 68-pin Mini D-Ribbon breakout boards.

The connector used on this product goes by several different names, including Mini D Ribbon, Mini Delta Ribbon, MDR, Mini Centronics, Half-Pitch Centronics, HPCN, HPCN68, Half-Pitch CN, and Micro Centronics. It is also occasionally referred to as a SCSI2 connector, though that is not typically a proper use of the term. Sometimes these 68-pin MDR connectors are called Mini 68 or SCSI-III connectors. However, be aware that there is some confusion in the terms commonly used. The manufacturer and model of the connector on these breakout boards is listed below, making it possible to carefully compare the connector on your application to the connector used on these breakout boards. Contact Winford Engineering for any needed assistance.

MDR Connector Details

The Mini Delta Ribbon (MDR) series of connectors provides a compact arrangement of durable sliding 'ribbon' contacts. The high contact density and good performance at high speeds have yielded many applications for this connector type. These are 'half-pitch' connectors, meaning that the contact spacing is tighter than full-size Centronics connectors, such as those used on our BRKDC36F or BRKDC50F breakout boards. The 'half-pitch' connectors utilize contacts on 0.05" centers.

Twisted Pairing

This cable utilizes twisted pair wiring. The pair mapping is as follows: 1/35, 2/36 ... 33/67, 34/68.

Mini D-Ribbon Breakout Boards

These MDR cables are compatible with Winford Engineering's 68-pin Mini D-Ribbon breakout boards, shown below.

BRKAMC68F-R4-FT
BRKAMC68F-R4-FT
EnlargeClick image to enlarge.
BRKAMC68F-R4-DIN
BRKAMC68F-R4-DIN
EnlargeClick image to enlarge.

Product Documents

Part #DescriptionData Sheet
CBMDR68MB-xMDR 68-pin Male-Male CablePDF
CBMDR68MB-x

MDR 68-pin Male-Male Cable

PDF

Product Details

  • MDR 68-pin connectors
  • Overmolded ends with strain reliefs
  • Twisted pair wiring with cable shield

Pricing and Ordering

Product # Description 1+ 10+ RoHS Buy Now
CBMDR68MB-3 Mini D Ribbon (MDR) Cable, 68-Pin Male-Male, Latches, 3Ft $34.50 $30.50  Yes
CBMDR68MB-6 Mini D Ribbon (MDR) Cable, 68-Pin Male-Male, Latches, 6Ft $43.00 $38.50  Yes

CBMDR68MB-3
RoHS   Yes
Mini D Ribbon (MDR) Cable, 68-Pin Male-Male, Latches, 3Ft
QuantityPrice
1+$34.50
10+$30.50
CBMDR68MB-6
RoHS   Yes
Mini D Ribbon (MDR) Cable, 68-Pin Male-Male, Latches, 6Ft
QuantityPrice
1+$43.00
10+$38.50

All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
