Buffer, Inverting, 24V Inputs to Open-Drain Outputs, 3 Channels
- Three unidirectional channels with inverting open-drain (sinking) outputs
- Optimized to accept 24V logic signals from a PLC with sourcing outputs
- Suitable for use as an inverting buffer
- Suitable for use as a logic voltage converter
- LEDs provide visual indication for all channels
- Inputs feature reverse-battery protection and overvoltage protection up to 35V
- Typical application: convert 24V PLC sourcing outputs to sinking outputs
- Mounting Options: Rubber Feet, Panel, or DIN Rail
General Description
The BUFOI103A-24V provides 3 unidirectional channels that may each be used as an inverting buffer. It is ideally suited for converting 24V PLC sourcing outputs to sinking outputs. Inputs are optimized to accept 24V logic. The BUFOI103A-24V features overvoltage protection and reverse-battery protection on the inputs, and also features reverse-battery protection on the outputs.

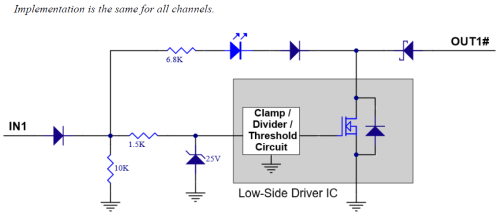

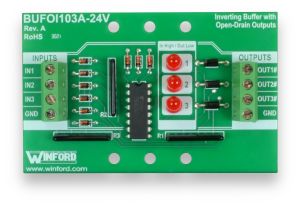

This board includes terminal blocks to provide convenient access to the signals.
Click image to enlarge.Applications
- Convert PLC sourcing outputs to sinking outputs
- Logic voltage conversion
- Signal buffering and inversion
In this context, other names for buffers (or terms associated with buffers) are "signal amplifier," "logic level shifter," or "logic voltage translator."
Product Documents
| Part # | Description | Data Sheet | PDF Drawing | DWG Drawing | IGES Model | STEP Model |
|---|---|---|---|---|---|---|
| BUFOI103A-24V-DIN | 3-Channel Buffer / Inverter / Open-Drain, DIN Mount |
|
|
|
|
|
| BUFOI103A-24V-FT | 3-Channel Buffer / Inverter / Open-Drain, Rubber Feet |
|
|
|
|
|
3-Channel Buffer / Inverter / Open-Drain, DIN Mount
3-Channel Buffer / Inverter / Open-Drain, Rubber Feet
Mounting Options
These products are available in two different mounting variants. Product numbers ending with -DIN come with DIN clips already installed and ready to snap onto 35mm or 32mm DIN rail. Product numbers ending with -FT have stick-on rubber feet installed on the bottom side, allowing for benchtop use or panel mounting. For panel mounting, we suggest 1/4" nylon standoffs under the mounting holes, and #6 screws.
BUFOI103A-24V-DIN
Click image to enlarge. Rail not included
BUFOI103A-24V-FT
Click image to enlarge.Product Details
- Three unidirectional channels with inverting open-drain (sinking) outputs
- Optimized to accept 24V logic signals from a PLC with sourcing outputs
- Suitable for use as an inverting buffer
- Suitable for use as a logic voltage converter
- Accepts input signal voltages up to 30V
- Outputs may be pulled up to voltages up to 50V
- Uncommitted outputs (no onboard pullups on the outputs)
- LEDs provide visual indication for all channels
- Inputs feature reverse-battery protection and overvoltage protection up to 35V
- Outputs feature reverse-battery protection
- Typical application: convert 24V PLC sourcing outputs to sinking outputs
- Approximate dimensions: 3.5" x 2.2"
- Mounting Options: Rubber Feet, Panel, or DIN Rail
Pricing and Ordering
| Product # | Description | 1+ | 10+ | 50+ | 100+ | RoHS | Buy Now |
|---|---|---|---|---|---|---|---|
| BUFOI103A-24V-DIN | Buffer, 3 channels, Inverting, 24V Logic Inputs, Open-drain outputs (uncommitted, no onboard pullup resistor), DIN mount | $29.45 | $28.90 | $27.80 | $26.75 | Yes | |
| BUFOI103A-24V-FT | Buffer, 3 channels, Inverting, 24V Logic Inputs, Open-drain outputs (uncommitted, no onboard pullup resistor), Rubber Feet | $27.80 | $27.30 | $26.20 | $25.15 | Yes |
| Quantity | Price |
|---|---|
| 1+ | $29.45 |
| 10+ | $28.90 |
| 50+ | $27.80 |
| 100+ | $26.75 |
| Quantity | Price |
|---|---|
| 1+ | $27.80 |
| 10+ | $27.30 |
| 50+ | $26.20 |
| 100+ | $25.15 |
All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
