Diagnostic Breakout Board: IX Industrial Connector, Key B

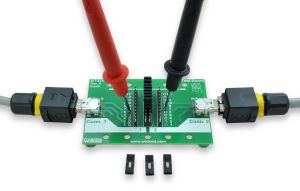

BTSIX-BB-R-FT (Application)

BTSIX-BB-R-FT (Application)
(click image to enlarge)
BTSIX-BB-R-FT (Application)
BTSIX-BB-R-FT
BTSIX-BB-R-FT (Overhead View)
BTSIX-BB-R-DIN
Schematic
Board Diagram
  • Pass-through test board with inline jumpers
  • Contains (2) IX - Key B female connectors
  • Includes Probe test points and Header test points for every signal
  • Includes a removable jumper for each signal line and shield
  • Clearly labeled with connector pin names
  • Mounting Options: Rubber Feet or DIN Rail
See Also: More Diagnostic Breakout Boards,   Network Products


General Description

Insert this diagnostic Breakout Test Board into existing cable connections and get access to signals via test points and headers; this is the pass-through function of this board. In addition, jumpers allow individual signals to be disconnected from the circuit, which aids in diagnostics, troubleshooting, fault tolerance testing, or re-routing specific signals within a cable. This compact design is meant to be inserted into the cabling of a system during operation. Normal system operation can continue while signals are probed and manipulated. It is a handy test point breakout board with removable jumpers.

This board contains two IX industrial connectors (Key B). This connector selection generally allows for very convenient insertion into existing cable configurations, without the use of gender changers, etc.

A typical IX - Key B cable includes ten signals as well as shield. With this Breakout Test Board, all ten signals and shield signal can be opened or closed. Many of Winford's diagnostic boards come with DIP switches; instead, these IX diagnostic boards have jumpers in order to handle the current that may be required for various applications.

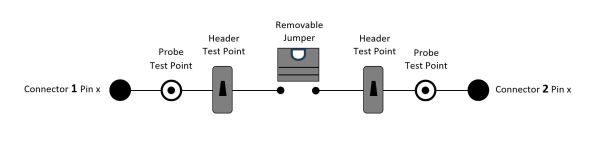

BTS Schematic
Schematic of Breakout Test Board
EnlargeClick image to enlarge.

Applications

  • Signal monitoring or measurement
  • System Calibration
  • Diagnostics, troubleshooting, and debugging
  • Signal injection and fault tolerance testing
  • Re-routing selected connector signals

A breakout test board may also be referred to as a "measurement breakout", "pass-through board", "test breakout", "inline test adapter", or "breakout testing board".

Product Documents

Part #DescriptionPDF DrawingDWG DrawingIGES ModelSTEP ModelApp Note
BTSIX-BB-R-DINIX - Key B Diagnostic Board, DIN MountPDF DWG IGES CAD
BTSIX-BB-R-FTIX - Key B Diagnostic Board, Rubber FeetPDF DWG IGES CAD
BTS SeriesBreakout Test Board Application NotePDF
BTSIX-BB-R-DIN

IX - Key B Diagnostic Board, DIN Mount

PDF DWG IGES CAD
BTSIX-BB-R-FT

IX - Key B Diagnostic Board, Rubber Feet

PDF DWG IGES CAD
BTS Series

Breakout Test Board Application Note

PDF

Mounting Options

These products are available in two different mounting variants. Product numbers ending with -DIN come with DIN clips already installed and ready to snap onto 35mm or 32mm DIN rail. Product numbers ending with -FT have stick-on rubber feet installed on the bottom side, allowing for benchtop use or panel mounting. For panel mounting, we suggest 1/4" nylon standoffs under the mounting holes, and #6 screws.

DIN Rail Mounting Option
DIN Rail Mount
EnlargeClick image to enlarge.
Rubber Feet Mounting Option
Rubber Feet
EnlargeClick image to enlarge.

Product Details

  • Pass-through test board with inline jumpers
  • Contains (2) IX - Key B female connectors
  • Includes Probe test points and Header test points for every signal
  • Includes a removable jumper for each signal line and shield
  • Clearly labeled with connector pin names
  • Approximate dimensions: 3.3" x 2.1"
  • Mounting Options: Rubber Feet or DIN Rail

Pricing and Ordering

Product # Description 1+ 10+ RoHS Buy Now
BTSIX-BB-R-DIN IX Shielded Breakout Test Board with Jumpers, Type B to Type B, DIN Mount $44.10 $42.60  Yes
BTSIX-BB-R-FT IX Shielded Breakout Test Board with Jumpers, Type B to Type B,, Rubber Feet Mount $42.50 $41.00  Yes

BTSIX-BB-R-DIN
RoHS   Yes
IX Shielded Breakout Test Board with Jumpers, Type B to Type B, DIN Mount
QuantityPrice
1+$44.10
10+$42.60
BTSIX-BB-R-FT
RoHS   Yes
IX Shielded Breakout Test Board with Jumpers, Type B to Type B,, Rubber Feet Mount
QuantityPrice
1+$42.50
10+$41.00

All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
