Diagnostic Breakout Switch Board: DB25 Connector

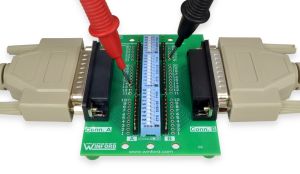

BTSD25-R-FT (Application View)

BTSD25-R-FT (Application View)
(click image to enlarge)
BTSD25-R-FT (Application View)
BTSD25-R-FT
BTSD25-R-FT (Overhead View)
BTSD25-R-DIN
Schematic
Board Diagram
  • Pass-through test board with inline switches
  • Contains (2) DB25 connectors (1 Male, 1 Female) for convenient inline insertion
  • Includes Probe test points and Header test points for every signal
  • Includes switch for each signal line
  • Clearly labeled with connector pin numbers
  • Mounting Options: Rubber Feet or DIN Rail
See Also: More Diagnostic Breakout Boards,   DB25 Breakout Boards,   DB25 Cables


General Description

Insert this diagnostic Breakout Test Board into existing cable connections and get access to signals via test points and headers; this is the pass-through function of this board. In addition, switches allow individual signals to be disconnected from the circuit, which aids in diagnostics, troubleshooting, fault tolerance testing, or re-routing specific signals within a cable. This compact design is meant to be inserted into the cabling of a system during operation. Normal system operation can continue while signals are probed and manipulated. It is a handy test point breakout board with inline interruptor switches.

This board contains dual DB25 connectors (1 Male, 1 Female). This connector selection generally allows for very convenient insertion into existing cable configurations, without the use of gender changers, etc.

BTS Schematic
Schematic of Breakout Test Board
EnlargeClick image to enlarge.

Applications

  • Signal monitoring or measurement
  • System Calibration
  • Diagnostics, troubleshooting, and debugging
  • Signal injection and fault tolerance testing
  • Re-routing selected connector signals

Need something different? We stock a variety of DB25 breakout board styles and form factors. Please have a look!

A breakout test board may also be referred to as a "measurement breakout", "pass-through board", "test breakout", "inline test adapter", or "breakout testing board".

Product Documents

Part #DescriptionPDF DrawingDWG DrawingIGES ModelSTEP ModelApp Note
BTSD25-R-DINDB25 Diagnostic Board, DIN MountPDF DWG IGES CAD
BTSD25-R-FTDB25 Diagnostic Board, Rubber FeetPDF DWG IGES CAD
BTS SeriesBreakout Test Board Application NotePDF
-D-Sub Panel Cutout DrawingPDF DWG
BTSD25-R-DIN

DB25 Diagnostic Board, DIN Mount

PDF DWG IGES CAD
BTSD25-R-FT

DB25 Diagnostic Board, Rubber Feet

PDF DWG IGES CAD
BTS Series

Breakout Test Board Application Note

PDF
-

D-Sub Panel Cutout Drawing

PDF DWG

Mounting Options

These products are available in two different mounting variants. Product numbers ending with -DIN come with DIN clips already installed and ready to snap onto 35mm or 32mm DIN rail. Product numbers ending with -FT have stick-on rubber feet installed on the bottom side, allowing for benchtop use or panel mounting. For panel mounting, we suggest 1/4" nylon standoffs under the mounting holes, and #6 screws.

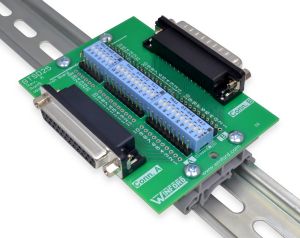

BTSD25-R-DIN
DIN Rail Mount
BTSD25-R-DIN
EnlargeClick image to enlarge.
Rail not included

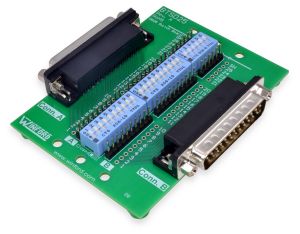

BTSD25-R-FT
Rubber Feet
BTSD25-R-FT
EnlargeClick image to enlarge.

Product Details

  • Pass-through test board with inline switches
  • Contains (2) DB25 connectors (1 Male, 1 Female) for convenient inline insertion
  • Includes Probe test points and Header test points for every signal
  • Includes switch for each signal line
  • Clearly labeled with connector pin numbers
  • Approximate dimensions: 2.7" x 3.7"
  • Mounting Options: Rubber Feet or DIN Rail

Pricing and Ordering

Product # Description 1+ 10+ RoHS Buy Now
BTSD25-R-DIN DB25 Breakout Test Board with Switches, Right Angle Connectors, DIN Rail Mount $38.50 $35.85  Yes
BTSD25-R-FT DB25 Breakout Test Board with Switches, Right Angle Connectors, Rubber Feet Mount $36.90 $34.25  Yes

BTSD25-R-DIN
RoHS   Yes
DB25 Breakout Test Board with Switches, Right Angle Connectors, DIN Rail Mount
QuantityPrice
1+$38.50
10+$35.85
BTSD25-R-FT
RoHS   Yes
DB25 Breakout Test Board with Switches, Right Angle Connectors, Rubber Feet Mount
QuantityPrice
1+$36.90
10+$34.25

All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
