Diagnostic Breakout Board with Switches and RJ50 (10P10C) Connectors

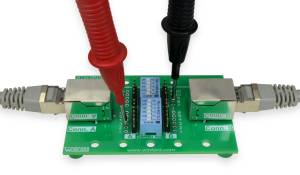

BTS10P10CSJ-R-FT (Application)

BTS10P10CSJ-R-FT (Application)
(click image to enlarge)
BTS10P10CSJ-R-FT (Application)
BTS10P10CSJ-R-DIN

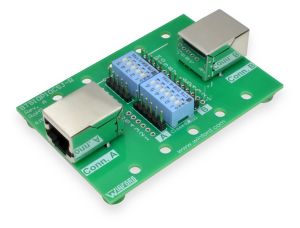

BTS10P10CSJ-R-FT
BTS10P10CSJ-R-FT (Overhead View)
Schematic
Board Diagram
  • Pass-through test board with inline switches
  • Contains two RJ50(10P10C) connectors for convenient inline insertion
  • Includes probe test points and header test points for every signal
  • Includes switch for each signal line
  • Clearly labeled with connector pin numbers
  • Rubber feet or DIN rail mounting options
See Also: More Diagnostic Breakout Boards,   More RJ50 (10P10C) Products,   RJ50 (10P10C) Cables


General Description

Insert this diagnostic Breakout Test Board into existing cable connections and get access to signals via test points and headers; this is the pass-through function of this board. In addition, switches allow individual signals to be disconnected from the circuit, which aids in diagnostics, troubleshooting, fault tolerance testing, or re-routing specific signals within a cable. This compact design is meant to be inserted into the cabling of a system during operation. Normal system operation can continue while signals are probed and manipulated. It is a handy test point breakout board with inline interruptor switches.

This board contains dual RJ50 (10P10C) female connectors. This connector selection generally allows for very convenient insertion into existing cable configurations, without the use of gender changers, etc.

BTS Schematic
Schematic of Breakout Test Board
EnlargeClick image to enlarge.

Applications

  • Signal monitoring or measurement
  • System Calibration
  • Diagnostics and troubleshooting
  • Signal injection and fault tolerance testing
  • Re-routing selected connector signals

Need something different? We stock a variety of RJ50/10P10C breakout board styles and form factors. Please have a look!

A breakout test board may also be referred to as a "measurement breakout", "pass-through board", "test breakout", "inline test adapter", or "breakout testing board".

Product Documents

Part #DescriptionPDF DrawingDWG DrawingIGES ModelSTEP ModelApp Note
BTS10P10CSJ-R-DINRJ50 Diagnostic Board, DIN MountPDF DWG IGES CAD
BTS10P10CSJ-R-FTRJ50 Diagnostic Board, Rubber FeetPDF DWG IGES CAD
BTS SeriesBreakout Test Board Application NotePDF
BTS10P10CSJ-R-DIN

RJ50 Diagnostic Board, DIN Mount

PDF DWG IGES CAD
BTS10P10CSJ-R-FT

RJ50 Diagnostic Board, Rubber Feet

PDF DWG IGES CAD
BTS Series

Breakout Test Board Application Note

PDF

Mounting Options

These products are available in two different mounting variants. Product numbers ending with -DIN come with DIN clips already installed and ready to snap onto 35mm or 32mm DIN rail. Product numbers ending with -FT have stick-on rubber feet installed on the bottom side, allowing for benchtop use or panel mounting. For panel mounting, we suggest 1/4" nylon standoffs under the mounting holes, and #6 screws.
BTS10P10CSJ-R-DIN
DIN Rail Mount
BTS10P10CSJ-R-DIN
EnlargeClick image to enlarge.
Rail not included
BTS10P10CSJ-R-FT
Rubber Feet
BTS10P10CSJ-R-FT
EnlargeClick image to enlarge.

Product Details

  • Pass-through test board with inline switches
  • Contains two RJ50(10P10C) connectors for convenient inline insertion
  • Includes probe test points and header test points for every signal
  • Includes switch for each signal line
  • Clearly labeled with connector pin numbers
  • Approximate dimensions: 3.1" x 2.1"
  • Rubber feet or DIN rail mounting options

Pricing and Ordering

Product # Description 1+ 10+ RoHS Buy Now
BTS10P10CSJ-R-DIN RJ50 (10P10C) Shielded Breakout Test Board with Switches, Right Angle Connectors, DIN Rail Mount $27.80 $25.15  Yes
BTS10P10CSJ-R-FT RJ50 (10P10C) Shielded Breakout Test Board with Switches, Right Angle Connectors, Rubber Feet Mount $26.20 $24.60  Yes

BTS10P10CSJ-R-DIN
RoHS   Yes
RJ50 (10P10C) Shielded Breakout Test Board with Switches, Right Angle Connectors, DIN Rail Mount
QuantityPrice
1+$27.80
10+$25.15
BTS10P10CSJ-R-FT
RoHS   Yes
RJ50 (10P10C) Shielded Breakout Test Board with Switches, Right Angle Connectors, Rubber Feet Mount
QuantityPrice
1+$26.20
10+$24.60

All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
