ETH32 Breakout Board

BRKW01-C

BRKW01-C
(click image to enlarge)
BRKW01-C
BRKW01-C (Overhead View)
BRKW01-R
BRKW01-C (Direct Mount to ETH32)
  • Designed specifically for the ETH32 I/O device
  • Quick, simple, flexible wiring solution
  • Perfect for prototyping or permanent installations
  • Screw terminal for each of the ETH32 interface pins
See Also: ETH32 I/O Device,   DB25 Slim Breakout Boards,   More Breakout Boards,   DB25 Breadboard Adapters,   DB25 Cables


General Description

These breakout boards are designed specifically for Winford Engineering's ETH32 I/O Device. They provide quick, flexible, and convenient access to every pin included on the ETH32 I/O connectors. Each and every pin is brought out to screw terminals which are clearly labeled with the function of each pin. In addition, alternate pin functions are documented in the center area of the circuit board. Ground connection screw terminals are replicated all around the board to provide plenty of connection points.

The BRKW01 contains two DB25 Male connectors which are spaced identically to the two DB25 Female connectors on the ETH32 device. This allows the breakout board to be plugged directly into the ETH32 device without the need for any cables. Alternatively, extension cables may be used if desired.

These breakout boards are perfect for prototypes or permanent installations, for the lab bench or for field wiring. The boards are available with two different connector hardware options: captive screws or jack screws. The captive screws work well when mounting the breakout board directly to the ETH32 device (without using any DB25 extension cables), while the jack screws work well when using a DB25 extension cable between the ETH32 device and the breakout board. See the Connector Hardware Options section below for more details.

Need something different? We stock a variety of DB25 breakout board styles and form factors. Please have a look!

Product Documents

Part #DescriptionPDF DrawingDWG DrawingIGES ModelSTEP Model
BRKW01-CETH32 Breakout Board, Captive ScrewsPDF DWG IGES CAD
BRKW01-RETH32 Breakout Board, Jack ScrewsPDF DWG IGES CAD
BRKW01-C

ETH32 Breakout Board, Captive Screws

PDF DWG IGES CAD
BRKW01-R

ETH32 Breakout Board, Jack Screws

PDF DWG IGES CAD

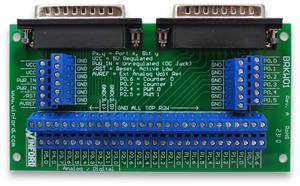

<b>BRKW01</b>:  Pin functions Clearly Labeled
BRKW01: Pin functions Clearly Labeled
EnlargeClick image to enlarge.

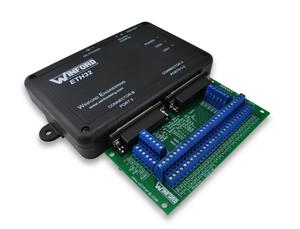

<b>Application:</b>  Direct Mount Using Captive Screws
Application: Direct Mount Using Captive Screws
EnlargeClick image to enlarge.

Connector Hardware Options

These breakout boards are available with either captive screws or jack screws for the connector hardware:

Captive Screw
Captive Screw
EnlargeClick image to enlarge.
Jack Screw
Jack Screw
EnlargeClick image to enlarge.

  • Captive Screws are male #4-40 screws coming out of the face of the connector to accommodate direct mounting to a mating connector which contains jack screws (see picture below).
  • Jack Screws are the hex standoffs typically installed on DSUB connectors; they are threaded for #4-40 screws. Jack screws are perfect for connecting to a cable which has thumbscrews, for mounting to a wall plate, or for installing on a thin panel which has a DSUB cutout (see picture below).
Direct Mount with Captive Screws
Application: Direct Mount Using Captive Screws
BRKSD25M-C pictured
EnlargeClick image to enlarge.
Panel Mount with Jack Screws
Application: Panel Mount Using Jack Screws
BRKSD25F-R pictured
EnlargeClick image to enlarge.

Pricing and Ordering

Product # Description 1+ 5+ 10+ RoHS Buy Now
BRKW01-C Breakout board for ETH32, Captive Screws $44.95 $42.80 $40.65  Yes
BRKW01-R Breakout board for ETH32, Jack Screws $42.80 $40.65 $38.50  Yes

BRKW01-C
RoHS   Yes
Breakout board for ETH32, Captive Screws
QuantityPrice
1+$44.95
5+$42.80
10+$40.65
BRKW01-R
RoHS   Yes
Breakout board for ETH32, Jack Screws
QuantityPrice
1+$42.80
5+$40.65
10+$38.50

All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
