RJ45 8P8C Panel-Mount Breakout Boards

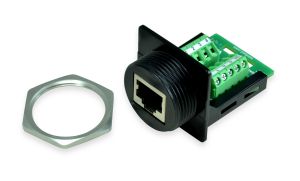

BRKQA8PA-U (Connector End)

BRKQA8PA-U (Connector End)
(click image to enlarge)
BRKQA8PA-U (Connector End)
BRKQA8PA-U
BRKQA8PA-U (Overhead View)
BRKQA8PA-U (Panel Mounted)
  • RJ45 / 8P8C Connector
  • Screw terminal for each of the 8 lines, plus shield
  • Designed to be panel mounted
  • Quick and simple to mount to panel
  • Small footprint
See Also: RJ45 (8P8C) Cables,   RJ45 (8P8C) Couplers,   More RJ45 (8P8C) Products


General Description

Make connections quickly and reliably with this breakout board, which brings every pin of its 8P8C (RJ45) Modular Jack connector out to screw terminals.

Breakout Board Mounted through a Panel

These breakout boards are designed to be mounted in a panel, thus providing a convenient method of passing an RJ45 connection through a panel. This board comes installed in a threaded flange, which provides protection for the circuit board as well as quick and simple installation onto a panel.

The compact design of this board takes up minimal area on the panel surface, thus potentially allowing many connectors to be mounted in a relatively small area. Although the breakout board footprint is small, provision has been included for wire strain reliefs; slots in the board provide anchor points where tie-wraps can be attached, thus securing the wires at the edge of the board.

All RJ45 signal pins plus the connector shield are brought out to screw terminals.

BRKSM8P8CSJ-R-P

This breakout board is perfect for production applications as well as experimentation and prototype work. It is well-suited for work with serial ports, sensors, data acquisition equipment, RS-232 devices, MODBUS connections, and other devices that use RJ45/8P8C connectors.

Need something different? We stock a variety of RJ45/8P8C breakout board styles and form factors. Please have a look!

A breakout board is sometimes referred to as a "transition module", "terminal board", "terminal block", "breakout box", "breakout adapter", "terminator", or "interface module". These connectors are sometimes also called "RJ45 Bulkhead Terminals", "8P8C Bulkhead Adapters" or similar.

Product Documents

Part #DescriptionPDF DrawingDWG DrawingIGES ModelSTEP Model
BRKQA8PA-URJ45 8P8C, R/A Connector, Panel MountPDF DWG IGES CAD
SWF-M28-B-BULKPanel Washer, for M28, SteelPDF DWG IGES CAD
BRKQA8PA-U

RJ45 8P8C, R/A Connector, Panel Mount

PDF DWG IGES CAD
SWF-M28-B-BULK

Panel Washer, for M28, Steel

PDF DWG IGES CAD

Panel Mounting

This product is designed to mount behind a panel face and extend through the panel. All that is required for installation is one opening. Simply drill or punch a hole through the panel, insert the threaded flange through it and secure it with the panel nut. An M28 panel nut is included with this product, and a washer can be purchased separately. A washer can improve aesthetics and also protect the panel from geting scratched by the nut. The 1-1/8" hole size used for this product is also commonly used for 3/4" 'trade size' electrical knockouts. For more information on appropriate panel cutout size and locations, please see the product drawing document.
M28 Panel Nut
M28 Panel Nut
EnlargeClick image to enlarge.
Mounted in Panel
Mounted in Panel
EnlargeClick image to enlarge.

Product Details

  • RJ45 / 8P8C Connector
  • Screw terminal for each of the 8 lines, plus shield
  • Screw terminals accommodate wire sizes from 16AWG to 26AWG
  • Designed to be panel mounted
  • Quick and simple to mount to panel
  • Small footprint

Screwdrivers Need a quality screwdriver for your breakout boards? Winford sells Wiha screwdrivers!

Pricing and Ordering

Product # Description 1+ 10+ 50+ 100+ RoHS Buy Now
BRKQA8PA-U RJ45 8P8C Shielded Jack Panel Mount Breakout Board, Screw Terminals, with Panel Nut, No Washer $16.00 $15.20 $15.05 $15.05  Yes
SWF-M28-B-BULK Panel Washer, for M28, Steel, 40mm OD, 0.38mm Thickness $1.60 $1.35 $1.28 $1.22  Yes

BRKQA8PA-U
RoHS   Yes
RJ45 8P8C Shielded Jack Panel Mount Breakout Board, Screw Terminals, with Panel Nut, No Washer
QuantityPrice
1+$16.00
10+$15.20
50+$15.05
100+$15.05
SWF-M28-B-BULK
RoHS   Yes
Panel Washer, for M28, Steel, 40mm OD, 0.38mm Thickness
QuantityPrice
1+$1.60
10+$1.35
50+$1.28
100+$1.22

All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.

Accessories

Cable Ties

 Cable Ties
- strain relief for Breakout Boards
