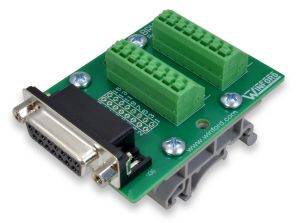

DB15 Breakout Board with Spring Connection Terminals


BRKG15F-R-DIN
(click image to enlarge)
  • Available with DB15 Male or Female connector
  • Quick connection spring cage terminal blocks for all pins, plus shield
  • Solder pad connection space / test points for all pins, plus shield
  • Supports addition of 0.1" pin headers
  • DIN rail mountable

Scroll to Buy

Custom Products

See Also: More Breakout Boards,   DB15 Breadboard Adapters,   DB15 Cables


General Description

Make connections quickly and reliably with these screwless spring terminal breakout boards, which feature terminals made by Phoenix Contact. These breakout boards bring all 15 pins of a DB15 connector out to spring connection terminal blocks for quick, easy, secure connections. Each connector pin is also brought to solder pads which allow easy access for testing or the addition of soldered components. The solder pads are arranged on standard 0.1" spacing, supporting the addition of standard pitch components such as pin headers. Please note that the breakout boards are manufactured with a connection between each connector pin and the corresponding terminal block position; no soldering of any type is necessary. The solder pads simply provide an area for making optional connections to additional headers or other components.

These boards are available with either a male connector (BRKG15M) or a female connector (BRKG15F).

Spring Terminal Animation

This breakout board features push-in spring connection terminal blocks. These screwless spring clamp terminal blocks allow connections to be made very quickly and efficiently. The spring terminal connections are reliable and secure, but wires can be connected and disconnected in a fraction of the time required with standard screw terminal blocks. Simply depress the actuator button on top of the terminal block, insert or remove the wire, and release the button. Done! In addition, screwless spring connections can offer better results in environments where vibration could potentially loosen standard screw terminal block connections. If your application requires screw terminals rather than spring terminals, please consider the BRK15 design or the other DB15 design options listed here.

This break out board is perfect for production applications as well as experimentation and prototype work. It is well-suited for work with serial ports, data acquisition equipment, and any other device that uses a 15-pin DSUB connector. A breakout board is sometimes referred to as a "transition module", "terminal board", "terminal block", "breakout box", "breakout adapter", "terminator", or "interface module".

Product Documents

Part # DescriptionPDF DrawingDWG DrawingIGES ModelSTEP Model
BRKG15F-R-DINDB15 Female Right Angle, DIN Mount
BRKG15F-R-NDB15 Female Right Angle, Mounting Holes
BRKG15F-S-DINDB15 Female Straight Connector, DIN Mount
BRKG15F-S-NDB15 Female Straight Connector, Mounting Holes
BRKG15M-R-DINDB15 Male Right Angle, DIN Mount
BRKG15M-R-NDB15 Male Right Angle, Mounting Holes
BRKG15M-S-DINDB15 Male Straight Connector, DIN Mount
BRKG15M-S-NDB15 Male Straight Connector, Mounting Holes
BRKG15F-R-DIN
DB15 Female Right Angle, DIN Mount
BRKG15F-R-N
DB15 Female Right Angle, Mounting Holes
BRKG15F-S-DIN
DB15 Female Straight Connector, DIN Mount
BRKG15F-S-N
DB15 Female Straight Connector, Mounting Holes
BRKG15M-R-DIN
DB15 Male Right Angle, DIN Mount
BRKG15M-R-N
DB15 Male Right Angle, Mounting Holes
BRKG15M-S-DIN
DB15 Male Straight Connector, DIN Mount
BRKG15M-S-N
DB15 Male Straight Connector, Mounting Holes

Connector Style

These breakout boards are available with either a Right Angle connector or a Straight ("Vertical") connector. The terms Right Angle and Straight refer to the connector itself, NOT the relationship of the mating cable to the plane of the PCB. In fact, the cable mating to a Right Angle connector is parallel to the PCB, while the cable mating to a Straight connector is perpendicular to the PCB. These are pictured below:

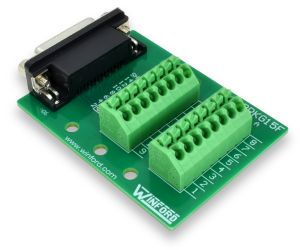

BRKG15F-R-N
Right Angle Connector
BRKG15F-R-N pictured
Click image to enlarge.

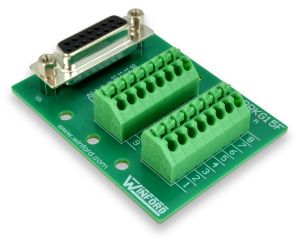

BRKG15F-S-N
Straight Connector
BRKG15F-S-N pictured
Click image to enlarge.

Mounting Options

These products are available in two different mounting variants. Product numbers ending with -DIN come with DIN clips already installed and ready to snap onto 35mm or 32mm DIN rail. Product numbers ending with -N have no mounting hardware included; they can be easily panel-mounted by using 1/4" nylon standoffs under the mounting holes, and #6 screws.

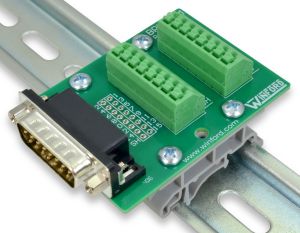

BRKG15M-R-DIN
DIN Rail Mount
BRKG15M-R-DIN
Click image to enlarge.
Rail not included
BRKG15M-R-N
No Mounting Hardware
BRKG15M-R-N
Click image to enlarge.

Product Details

  • DB15 connector
  • Quick connection spring cage terminal blocks for all pins, plus shield
  • Solder pad connection holes, one (1) per line
  • Supports addition of 0.1" pin headers
  • Spring terminals accommodate wire sizes from 16AWG to 24AWG
  • Approximate dimensions: 2.63" x 1.95"
  • DIN rail mountable


Pricing and Ordering

Product # Description 1+ 10+ RoHS Buy Now
DB15 Female Right Angle Connector:
BRKG15F-R-DIN DB15 Female Breakout Board, R/A Connector, Screwless Push-In Spring Clamp Connection Terminal Block, DIN Rail Mount $16.50 $15.60 Yes
BRKG15F-R-N DB15 Female Breakout Board, R/A Connector, Screwless Push-In Spring Clamp Connection Terminal Block $15.00 $14.10 Yes
DB15 Female Straight Connector:
BRKG15F-S-DIN DB15 Female Breakout Board, Straight Connector, Screwless Push-In Spring Clamp Connection Terminal Block, DIN Rail Mount $17.00 $16.10 Yes
BRKG15F-S-N DB15 Female Breakout Board, Straight Connector, Screwless Push-In Spring Clamp Connection Terminal Block $15.50 $14.60 Yes
DB15 Male Right Angle Connector:
BRKG15M-R-DIN DB15 Male Breakout Board, R/A Connector, Screwless Push-In Spring Clamp Connection Terminal Block, DIN Rail Mount $16.50 $15.60 Yes
BRKG15M-R-N DB15 Male Breakout Board, R/A Connector, Screwless Push-In Spring Clamp Connection Terminal Block $15.00 $14.10 Yes
DB15 Male Straight Connector:
BRKG15M-S-DIN DB15 Male Breakout Board, Straight Connector, Screwless Push-In Spring Clamp Connection Terminal Block, DIN Rail Mount $17.00 $16.10 Yes
BRKG15M-S-N DB15 Male Breakout Board, Straight Connector, Screwless Push-In Spring Clamp Connection Terminal Block $15.50 $14.60 Yes
DB15 Female Right Angle Connector:
BRKG15F-R-DIN
DB15 Female Breakout Board, R/A Connector, Screwless Push-In Spring Clamp Connection Terminal Block, DIN Rail Mount
RoHS: Yes
Buy Now:
QuantityPrice
1+$16.50
10+$15.60
BRKG15F-R-N
DB15 Female Breakout Board, R/A Connector, Screwless Push-In Spring Clamp Connection Terminal Block
RoHS: Yes
Buy Now:
QuantityPrice
1+$15.00
10+$14.10
DB15 Female Straight Connector:
BRKG15F-S-DIN
DB15 Female Breakout Board, Straight Connector, Screwless Push-In Spring Clamp Connection Terminal Block, DIN Rail Mount
RoHS: Yes
Buy Now:
QuantityPrice
1+$17.00
10+$16.10
BRKG15F-S-N
DB15 Female Breakout Board, Straight Connector, Screwless Push-In Spring Clamp Connection Terminal Block
RoHS: Yes
Buy Now:
QuantityPrice
1+$15.50
10+$14.60
DB15 Male Right Angle Connector:
BRKG15M-R-DIN
DB15 Male Breakout Board, R/A Connector, Screwless Push-In Spring Clamp Connection Terminal Block, DIN Rail Mount
RoHS: Yes
Buy Now:
QuantityPrice
1+$16.50
10+$15.60
BRKG15M-R-N
DB15 Male Breakout Board, R/A Connector, Screwless Push-In Spring Clamp Connection Terminal Block
RoHS: Yes
Buy Now:
QuantityPrice
1+$15.00
10+$14.10
DB15 Male Straight Connector:
BRKG15M-S-DIN
DB15 Male Breakout Board, Straight Connector, Screwless Push-In Spring Clamp Connection Terminal Block, DIN Rail Mount
RoHS: Yes
Buy Now:
QuantityPrice
1+$17.00
10+$16.10
BRKG15M-S-N
DB15 Male Breakout Board, Straight Connector, Screwless Push-In Spring Clamp Connection Terminal Block
RoHS: Yes
Buy Now:
QuantityPrice
1+$15.50
10+$14.60

All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
