DB50 Dual Breakout Board


BRKDD50MF-S-DIN
(click image to enlarge)
  • Both DB50 Male and Female connectors included
  • Connector pins arranged in 3 rows of pins
  • Easily insert inline, for tapping into I/O signals
  • Screw terminal for each of the 50 lines, plus shield
  • Solder pad connection space for all 50 lines, plus shield
  • Supports addition of 0.1" pin headers
  • Rubber feet or DIN rail mount

Scroll to Buy

Custom Products

See Also: Single Connector DB50 Breakout Board,   More Breakout Boards,   DB50 Cables


General Description

These breakout boards feature two DB50 connectors; this connector style has 3 rows of pins per connector. The two connectors (one male, one female) are wired 1:1 (pin 1 to pin 1), and all pins are brought out to screw terminals for easy connection. In addition, the shield (connector shell) is brought to a screw terminal as well. The two connectors allow the board to be easily inserted "in-line" with an existing connection, allowing signals to pass through while being monitored. It is also very convenient for "daisy-chaining" equipment.

In addition to the screw terminal connection, each pin is also brought to solder pads (3 per pin) spaced on 0.1" centers, allowing easy addition of standard pin headers. Please note that the breakout boards are manufactured with a connection between each connector pin and the corresponding terminal block position; no soldering of any type is necessary. The solder pads simply provide an area for making optional connections to additional headers or other components.

These break out boards are perfect for experimentation and prototype work, permanent installations, or for use in the educational laboratory. They are well-suited for work with I/O cards, CNC equipment, and any other device that uses a DB-50 connector. A breakout board is sometimes referred to as a "transition module", "terminal board", "terminal block", "breakout box", "breakout adapter", or "interface module".

Product Documents

Part # DescriptionPDF DrawingDWG Drawing
BRKDD50MF-S-DINDB50 Male-Female, DIN Mount
BRKDD50MF-S-FTDB50 Male-Female, Rubber Feet
BRKDD50MF-S-DIN
DB50 Male-Female, DIN Mount
BRKDD50MF-S-FT
DB50 Male-Female, Rubber Feet

Mounting Options

These products are available in two different mounting variants. Product numbers ending with -DIN come with DIN clips already installed and ready to snap onto 35mm or 32mm DIN rail. Product numbers ending with -FT have stick-on rubber feet installed on the bottom side, allowing for benchtop use or panel mounting. For panel mounting, we suggest 1/4" nylon standoffs under the mounting holes, and #6 screws.

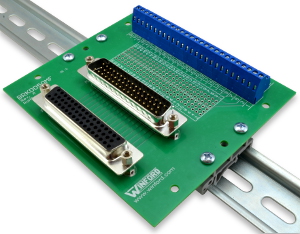

BRKDD50MF-S-DIN
DIN Rail Mount
BRKDD50MF-S-DIN
Click image to enlarge.
Rail not included

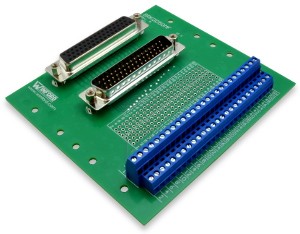

BRKDD50MF-S-FT
Rubber Feet
BRKDD50MF-S-FT
Click image to enlarge.

Product Details

  • Male and Female connected in parallel with each other and screw terminals
  • Screw terminal for each of the 50 lines, plus shield
  • Solder pad connection holes, three (3) per line
  • Supports addition of 0.1" pin headers
  • Screw terminals accomodate wire sizes from 16AWG to 26AWG
  • Approximate dimensions: 4.2" x 4.6"
  • Rubber feet or DIN rail mount

Need a quality screwdriver for your breakout boards? Winford sells Wiha screwdrivers!

Pricing and Ordering

Product # Description 1+ 10+ RoHS Buy Now
BRKDD50MF-S-DIN DB50 Dual Breakout Board, Male-Female, Straight Connectors, DIN Rail Mount $90.50 $86.50 Yes
BRKDD50MF-S-FT DB50 Dual Breakout Board, Male-Female, Straight Connectors, Feet $89.00 $85.00 Yes
BRKDD50MF-S-DIN
DB50 Dual Breakout Board, Male-Female, Straight Connectors, DIN Rail Mount
RoHS: Yes
Buy Now:
QuantityPrice
1+$90.50
10+$86.50
BRKDD50MF-S-FT
DB50 Dual Breakout Board, Male-Female, Straight Connectors, Feet
RoHS: Yes
Buy Now:
QuantityPrice
1+$89.00
10+$85.00

All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
