DB44 Breakout Board

BRKDD44HDFV2-R-DIN

BRKDD44HDFV2-R-DIN
(click image to enlarge)
BRKDD44HDFV2-R-DIN
BRKDD44HDFV2-R-FT
BRKDD44HDFV2-R-FT (Overhead View)
BRKDD44HDMV2-R-DIN
BRKDD44HDMV2-R-FT
BRKDD44HDMV2-R-FT (Overhead View)
  • DB44HD 3-row connector

    (Female connector shown)
  • Perfect for prototyping DAQ and I/O board connections
  • Screw terminal for each of the 44 lines, plus shield
  • Solder pad connection space for all 44 lines, plus shield
  • Fast and easy connections
  • Double deck screw terminals provide compact wiring
  • Rubber feet or DIN rail mount
See Also: DB44HD Slim Footprint Breakout Boards,   More Breakout Boards,   DB44HD Cables


General Description

Make connections quickly and reliably with this breakout board, which brings every pin of its DB44HD connector out to screw terminals. This product is available with both male and female connectors. Double-deck screw terminals efficiently utilize board area to provide a compact footprint.

Each pin, including shield, is also brought to solder pads (3 per pin) at 0.1" spacing, allowing easy addition of pin headers or other components. Please note that the breakout boards are manufactured with a connection between each connector pin and the corresponding terminal block position; no soldering of any type is necessary. The solder pads simply provide an area for making optional connections to additional headers or other components.

This breakout board is perfect for production applications as well as experimentation and prototype work. It is helpful for working with I/O cards, Data Aquisition (DAQ) devices, CNC equipment, and other devices that use a DB-44HD connector.

Need something different? We stock a variety of DB44HD breakout board styles and form factors. Please have a look!

A breakout board is sometimes referred to as a "transition module", "terminal board", "terminal block", "breakout box", "breakout adapter", "terminator", or "interface module".

Product Documents

Part #DescriptionData SheetPDF DrawingDWG DrawingIGES ModelSTEP Model
BRKDD44HDFV2-R-DINDB44HD Female Right Angle Connector, DIN MountPDF PDF DWG IGES CAD
BRKDD44HDFV2-R-FTDB44HD Female Right Angle Connector, Rubber FeetPDF PDF DWG IGES CAD
BRKDD44HDMV2-R-DINDB44HD Male Right Angle Connector, DIN MountPDF PDF DWG IGES CAD
BRKDD44HDMV2-R-FTDB44HD Male Right Angle Connector, Rubber FeetPDF PDF DWG IGES CAD
-D-Sub Panel Cutout DrawingPDF DWG
BRKDD44HDFV2-R-DIN

DB44HD Female Right Angle Connector, DIN Mount

PDF PDF DWG IGES CAD
BRKDD44HDFV2-R-FT

DB44HD Female Right Angle Connector, Rubber Feet

PDF PDF DWG IGES CAD
BRKDD44HDMV2-R-DIN

DB44HD Male Right Angle Connector, DIN Mount

PDF PDF DWG IGES CAD
BRKDD44HDMV2-R-FT

DB44HD Male Right Angle Connector, Rubber Feet

PDF PDF DWG IGES CAD
-

D-Sub Panel Cutout Drawing

PDF DWG

Mounting Options

These products are available in two different mounting variants. Product numbers ending with -DIN come with DIN clips already installed and ready to snap onto 35mm or 32mm DIN rail. Product numbers ending with -FT have stick-on rubber feet installed on the bottom side, allowing for benchtop use or panel mounting. For panel mounting, we suggest 1/4" nylon standoffs under the mounting holes, and #6 screws.

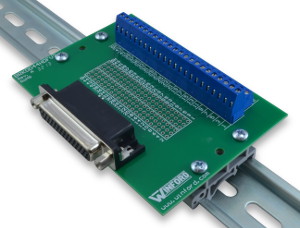

BRKDD44HDFV2-R-DIN
DIN Rail Mount
BRKDD44HDFV2-R-DIN
EnlargeClick image to enlarge.
Rail not included

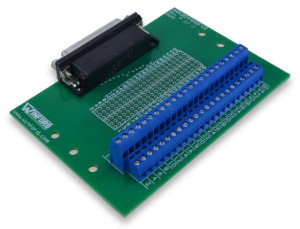

BRKDD44HDFV2-R-FT
Rubber Feet
BRKDD44HDFV2-R-FT
EnlargeClick image to enlarge.

Product Details

  • DB44HD (high density, three row) connector
  • Screw terminal for each of the 44 lines, plus shield
  • Solder pad connection holes, three (3) per line
  • Screw terminals accomodate wire sizes from 16AWG to 26AWG
  • Approximate dimensions: 3.0" x 4.2"
  • Rubber feet or DIN rail mount

Pricing and Ordering

Product # Description 1+ 10+ RoHS Buy Now
DB44HD Female Right Angle Connector:
BRKDD44HDFV2-R-DIN DB44HD Female Breakout Board, R/A Connector, DIN Rail Mount $56.50 $51.50  Yes
BRKDD44HDFV2-R-FT DB44HD Female Breakout Board, R/A Connector, Feet $55.00 $50.00  Yes
DB44HD Male Right Angle Connector:
BRKDD44HDMV2-R-DIN DB44HD Male Breakout Board, R/A Connector, DIN Rail Mount $56.50 $51.50  Yes
BRKDD44HDMV2-R-FT DB44HD Male Breakout Board, R/A Connector, Feet $55.00 $50.00  Yes

DB44HD Female Right Angle Connector:
BRKDD44HDFV2-R-DIN
RoHS   Yes
DB44HD Female Breakout Board, R/A Connector, DIN Rail Mount
QuantityPrice
1+$56.50
10+$51.50
BRKDD44HDFV2-R-FT
RoHS   Yes
DB44HD Female Breakout Board, R/A Connector, Feet
QuantityPrice
1+$55.00
10+$50.00
DB44HD Male Right Angle Connector:
BRKDD44HDMV2-R-DIN
RoHS   Yes
DB44HD Male Breakout Board, R/A Connector, DIN Rail Mount
QuantityPrice
1+$56.50
10+$51.50
BRKDD44HDMV2-R-FT
RoHS   Yes
DB44HD Male Breakout Board, R/A Connector, Feet
QuantityPrice
1+$55.00
10+$50.00

All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
