DB25 Compact Breakout Board, Double Deck Terminals

BRKDD25F-R-DIN

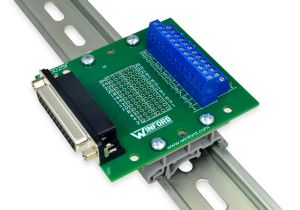

BRKDD25F-R-DIN
(click image to enlarge)
BRKDD25F-R-DIN
BRKDD25F-R-FT
BRKDD25F-R-FT (Overhead View)
BRKDD25M-R-DIN

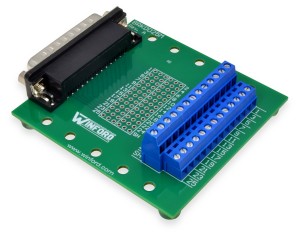

BRKDD25M-R-FT
BRKDD25M-R-FT (Overhead View)
  • Available with DB25 Male or Female connector
  • Perfect for parallel port and serial port circuits
  • Double decker screw terminals provide compact footprint
  • Screw terminal for each of the 25 lines, plus shield
  • Solder pad connection space for all 25 lines, plus shield
  • Supports addition of 0.1" pin headers
  • Rubber feet or DIN rail mount
See Also: More DB25 Breakout Boards,   DB25 Cables,   DB25 Breadboard Adapters


General Description

These breakout boards bring all 25 pins of a DB25 connector out to screw terminal blocks for easy connection and prototyping work. They are available with either male or female connectors. Double-deck screw terminals efficiently utilize board area to provide a compact footprint.

Each pin is also brought to solder pads (3 per pin) at 0.1" spacing, allowing easy addition of standard pin headers. Please note that the breakout boards are manufactured with a connection between each connector pin and the corresponding terminal block position; no soldering of any type is necessary. The solder pads simply provide an area for making optional connections to additional headers or other components.

This breakout board is perfect for production applications as well as experimentation and prototype work. These boards are useful in working with National Instruments data aquisition cards, CNC equipment, and any other device that utilizes a DB25 connector. A breakout board is sometimes referred to as a "transition module", "terminal board", "terminal block", "breakout box", "breakout adapter", "terminator", or "interface module".

Product Documents

Part #DescriptionPDF DrawingDWG DrawingIGES ModelSTEP Model
BRKDD25F-R-DINDB25 Female, Right Angle, DIN MountPDF DWG IGES CAD
BRKDD25F-R-FTDB25 Female, Right Angle, Rubber FeetPDF DWG IGES CAD
BRKDD25M-R-DINDB25 Male, Right Angle, DIN MountPDF DWG IGES CAD
BRKDD25M-R-FTDB25 Male, Right Angle, Rubber FeetPDF DWG IGES CAD
BRKDD25F-R-DIN

DB25 Female, Right Angle, DIN Mount

PDF DWG IGES CAD
BRKDD25F-R-FT

DB25 Female, Right Angle, Rubber Feet

PDF DWG IGES CAD
BRKDD25M-R-DIN

DB25 Male, Right Angle, DIN Mount

PDF DWG IGES CAD
BRKDD25M-R-FT

DB25 Male, Right Angle, Rubber Feet

PDF DWG IGES CAD

Mounting Options

These products are available in two different mounting variants. Product numbers ending with -DIN come with DIN clips already installed and ready to snap onto 35mm or 32mm DIN rail. Product numbers ending with -FT have stick-on rubber feet installed on the bottom side, allowing for benchtop use or panel mounting. For panel mounting, we suggest 1/4" nylon standoffs under the mounting holes, and #6 screws.

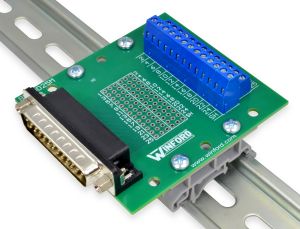

BRKDD25M-R-DIN
DIN Rail Mount
BRKDD25M-R-DIN
EnlargeClick image to enlarge.
Rail not included
BRKDD25M-R-FT
Rubber Feet
BRKDD25M-R-FT
EnlargeClick image to enlarge.

Product Details

  • DB25 connector
  • Double decker screw terminals provide compact footprint
  • Screw terminal for each of the 25 lines, plus shield
  • Solder pad connection holes, three (3) per line
  • Supports addition of 0.1" pin headers
  • Screw terminals accomodate wire sizes from 16AWG to 26AWG
  • Approximate dimensions: 3.00" x 2.8"
  • Rubber feet or DIN rail mount

Screwdrivers Need a quality screwdriver for your breakout boards? Winford sells Wiha screwdrivers!

Pricing and Ordering

Product # Description 1+ 10+ RoHS Buy Now
DB25 Female Right Angle Connector:
BRKDD25F-R-DIN DB25 Female Breakout Board, R/A Connector, Double-Decker Screw Terminals, DIN Rail Mount $21.50 $20.50  Yes
BRKDD25F-R-FT DB25 Female Breakout Board, R/A Connector, Double-Decker Screw Terminals, Feet $19.99 $19.00  Yes
DB25 Male Right Angle Connector:
BRKDD25M-R-DIN DB25 Male Breakout Board, R/A Connector, Double-Decker Screw Terminals, DIN Rail Mount $21.50 $20.50  Yes
BRKDD25M-R-FT DB25 Male Breakout Board, R/A Connector, Double-Decker Screw Terminals, Feet $19.99 $19.00  Yes

DB25 Female Right Angle Connector:
BRKDD25F-R-DIN
RoHS   Yes
DB25 Female Breakout Board, R/A Connector, Double-Decker Screw Terminals, DIN Rail Mount
QuantityPrice
1+$21.50
10+$20.50
BRKDD25F-R-FT
RoHS   Yes
DB25 Female Breakout Board, R/A Connector, Double-Decker Screw Terminals, Feet
QuantityPrice
1+$19.99
10+$19.00
DB25 Male Right Angle Connector:
BRKDD25M-R-DIN
RoHS   Yes
DB25 Male Breakout Board, R/A Connector, Double-Decker Screw Terminals, DIN Rail Mount
QuantityPrice
1+$21.50
10+$20.50
BRKDD25M-R-FT
RoHS   Yes
DB25 Male Breakout Board, R/A Connector, Double-Decker Screw Terminals, Feet
QuantityPrice
1+$19.99
10+$19.00

All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
