14-Pin Centronics Breakout Board


BRKDC14F-R-DIN
(click image to enlarge)
  • 14-Pin Centronics ('Amphenol' / 'CHAMP') connector
  • Perfect for prototyping and permanent installations
  • Screw terminal for each of the 14 lines, plus shield
  • Solder pad connection space for all 14 lines plus shield
  • Supports addition of 0.1" pin headers
  • Double deck screw terminals provide compact wiring
  • Fast and easy connections
  • Rubber feet or DIN rail mount

Scroll to Buy

Custom Products

See Also: More Centronics Breakout Boards


General Description

Centronics, MDR, VHDCI, HPDSUB  Connector Guide

These breakout boards bring all 14 pins and shield of a 14-pin Centronics connector out to double deck screw terminal blocks, providing quick and secure connections. Each pin is also brought to solder pads (3 per pin) at 0.1" (2.54mm) spacing, allowing the user to easily add pin headers. Please note that the breakout boards are manufactured with a connection between each connector pin and the corresponding terminal block position; no soldering of any type is necessary. The solder pads simply provide an area for making optional connections to additional headers or other components.

This breakout board is perfect for production applications as well as experimentation and prototype work. It is well-suited for interfacing with data acquisition equipment, computer systems, or any other devices that use the 14-pin Centronics connector.

This 14-pin Centronics connector is also referred to as a CHAMP or Amphenol connector. A breakout board is sometimes referred to as a "transition module", "terminal board", "terminal block", "breakout box", "breakout adapter", "terminator", or "interface module".

Product Documents

Part #DescriptionIGES ModelSTEP ModelDocument
BRKDC14F-R-DIN14-pin Centronics, Right Angle, DIN Mount
BRKDC14F-R-FT14-pin Centronics, Right Angle, Rubber Feet
Connector GuideWhich connector do I have? Consult this helpful identification guide.
BRKDC14F-R-DIN
14-pin Centronics, Right Angle, DIN Mount
BRKDC14F-R-FT
14-pin Centronics, Right Angle, Rubber Feet
Connector Guide
Which connector do I have? Consult this helpful identification guide.

Mounting Options

These products are available in two different mounting variants. Product numbers ending with -DIN come with DIN clips already installed and ready to snap onto 35mm or 32mm DIN rail. Product numbers ending with -FT have stick-on rubber feet installed on the bottom side, allowing for benchtop use or panel mounting. For panel mounting, we suggest 1/4" nylon standoffs under the mounting holes, and #6 screws.

BRKDC14F-R-DIN

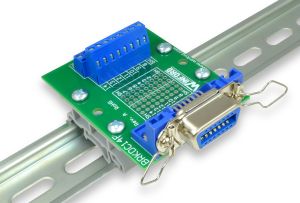

DIN Rail Mount
BRKDC14F-R-DIN
Click image to enlarge.
Rail not included
BRKDC14F-R-FT

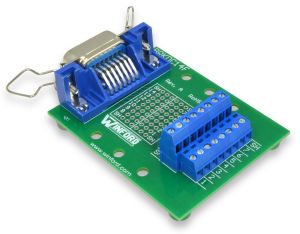

Rubber Feet
BRKDC14F-R-FT
Click image to enlarge.

Product Details

  • Screw terminal for each of the 14 lines, plus shield
  • Solder pad connection holes, three (3) per line
  • Supports addition of 0.1" pin headers
  • Screw terminals accomodate wire sizes from 16AWG to 26AWG
  • Approximate dimensions: 2.8" x 2.2"
  • Rubber feet or DIN rail mount

Need a quality screwdriver for your breakout boards? Winford sells Wiha screwdrivers!

Pricing and Ordering

Product # Description 1+ 10+ RoHS Buy Now
Centronics 14-Pin Female Right Angle Connector:
BRKDC14F-R-DIN Centronics 14-Pin Female Breakout Board, R/A Connector, DIN Rail Mount $19.00 $18.10 Yes
BRKDC14F-R-FT Centronics 14-Pin Female Breakout Board, R/A Connector, Feet $17.50 $16.60 Yes
Centronics 14-Pin Female Right Angle Connector:
BRKDC14F-R-DIN
Centronics 14-Pin Female Breakout Board, R/A Connector, DIN Rail Mount
RoHS: Yes
Buy Now:
QuantityPrice
1+$19.00
10+$18.10
BRKDC14F-R-FT
Centronics 14-Pin Female Breakout Board, R/A Connector, Feet
RoHS: Yes
Buy Now:
QuantityPrice
1+$17.50
10+$16.60

All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
