0.156" Header/Socket Breakout Board: BRKCH308

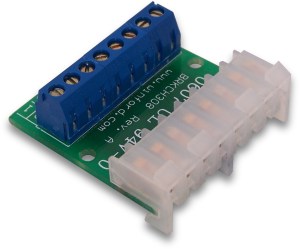

BRKCH308-FR

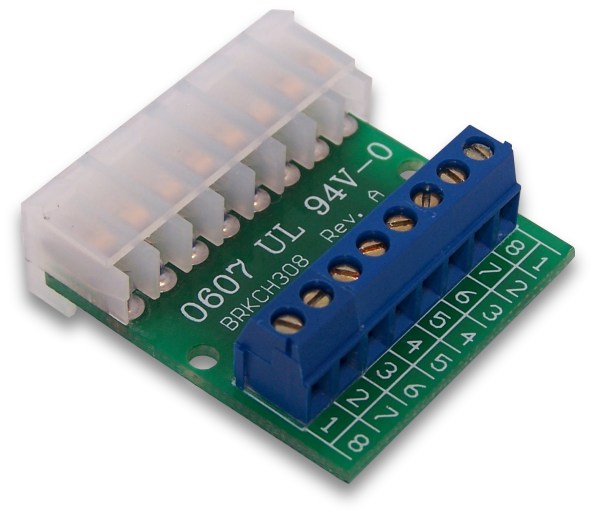

(click image to enlarge)
  • 0.156" Socket
  • Compact size
  • Easy wire termination
  • 8 Position
  • Side Stackable
  • Rubber feet or DIN rail mount

Scroll to Buy

Custom Products

See Also: More Breakout Boards


General Description

This breakout board brings all 8 pins of its female 0.156" socket connector out to screw terminal blocks for easy connection and prototyping work. These boards are side stackable, which means multiple boards can be inserted onto larger headers side-by-side in order to access all pins of a header larger than 8 pins.

General Purpose Applications

This break out board is perfect for experimentation and prototype work, as well as for use in the educational laboratory. It is well-suited for interfacing with I/O ports, DAQ equipment, and any other device that uses a 0.156" header connector, sometimes generically referred to as a "molex connector". A breakout board is sometimes referred to as a "transition module", "terminal board", "terminal block", "breakout box", "breakout adapter", or "interface module".

Model Railroading Applications

  • C/MRI Boards: This board can be used with the I/O boards in the C/MRI (Computer Model Railroad Interface) system in order to provide convenient screw terminal wire termination. This can save a great deal of time and hassle over crimping and inserting into 0.156" socket housings. This has been verified to fit on the DIN32, DOUT32, and SMINI boards. For example, four of these breakout boards can be inserted directly onto the right angle molex 0.156" male headers of the DIN32 and DOUT32 boards to provide screw terminal termination of all 32 lines.
  • Tortoise switch machine wiring: The Tortoise switch machine comes with card edge pads spaced on 0.156" centers. If you solder a 0.156" header to the Tortoise (such as Molex P/N 26-48-1082), this board will mate with the header and provide convenient screw terminal wire termination at the Tortoise.

Product Documents

Part # DescriptionData Sheet
BRKCH3080.156" Header Breakout Board
BRKCH308
0.156" Header Breakout Board

Product Details

  • 0.156" Socket
  • 8 Position
  • Side Stackable
  • Screw terminals accomodate wire sizes from 16AWG to 26AWG
  • Approximate dimensions: 1.24" x 1.35"
  • Rubber feet or DIN rail mount

Need a quality screwdriver for your breakout boards? Winford sells Wiha screwdrivers!

Pricing and Ordering

Product # Description 1+ 10+ 50+ 100+ RoHS Buy Now
BRKCH308-FR 8-Position 0.156" Female Socket Breakout Board, R/A $7.50 $7.10 $6.75 $6.40 Yes
BRKCH308-FR
8-Position 0.156" Female Socket Breakout Board, R/A
RoHS: Yes
Buy Now:
QuantityPrice
1+$7.50
10+$7.10
50+$6.75
100+$6.40

All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
