DB78HD Dual Breakout Board

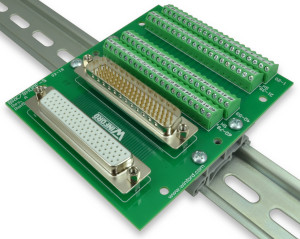

BRK78HDMF-S-DIN

BRK78HDMF-S-DIN
(click image to enlarge)
BRK78HDMF-S-DIN
BRK78HDMF-S-FT
BRK78HDMF-S-FT (Overhead View)
  • Both DB78HD Male and Female connectors included
  • DB78HD has connector pins arranged in 4 rows of pins
  • Easily insert inline, for tapping into I/O signals
  • Perfect for DAQ and I/O board connections
  • Screw terminal for each of the 78 lines, plus shield
  • Rubber feet or DIN rail mount
See Also: More DB78HD Breakout Boards,   More Breakout Boards


General Description

Make connections quickly and reliably with this breakout board, which brings every pin of its DB78HD connectors out to screw terminals.

These breakout boards feature two DB78HD connectors (one male, one female) wired 1:1, with all pins connected to screw terminals for easy wiring connections. Having two connectors allows the board to be easily inserted "in-line" with an existing connection, allowing signals to pass through while being monitored, or to work with "daisy-chained" equipment.

This breakout board is perfect for production applications as well as experimentation and prototype work. It is helpful for working with I/O cards, Data Aquisition (DAQ) devices, and other devices that use a DB-78HD connector.

Technically, the correct term for a DB78HD connector is DD78, but that term is not commonly used.

We stock a variety of DB78HD breakout board styles and form factors. Please have a look here.

A breakout board is sometimes referred to as a "transition module", "terminal board", "terminal block", "breakout box", "breakout adapter", "terminator", or "interface module".

Product Documents

Part #DescriptionPDF DrawingDWG DrawingIGES ModelSTEP Model
BRK78HDMF-S-DINDB78HD Dual, Straight, DIN MountPDF DWG IGES CAD
BRK78HDMF-S-FTDB78HD Dual, Straight, Rubber FeetPDF DWG IGES CAD
BRK78HDMF-S-DIN

DB78HD Dual, Straight, DIN Mount

PDF DWG IGES CAD
BRK78HDMF-S-FT

DB78HD Dual, Straight, Rubber Feet

PDF DWG IGES CAD

Mounting Options

These products are available in two different mounting variants. Product numbers ending with -DIN come with DIN clips already installed and ready to snap onto 35mm or 32mm DIN rail. Product numbers ending with -FT have stick-on rubber feet installed on the bottom side, allowing for benchtop use or panel mounting. For panel mounting, we suggest 1/4" nylon standoffs under the mounting holes, and #6 screws.
DIN Rail Mounting Option
DIN Rail Mount
EnlargeClick image to enlarge.
Rubber Feet Mounting Option
Rubber Feet
EnlargeClick image to enlarge.

Cables

Winford Engineering offers 78-pin DSUB cables (shown below) which are compatible with these breakout boards. Several lengths/connector configurations are available.
EXT78HDMV1-5
DB78 Cable
(EXT78HDMV1-5 pictured)
EnlargeClick image to enlarge.

Product Details

  • Both DB78HD Male and Female connectors included
  • Male and Female connected in parallel with each other and screw terminals
  • Screw terminal for each of the 78 lines, plus shield
  • Screw terminals accomodate wire sizes from 16AWG to 26AWG
  • Approximate dimensions: 4.2" x 3.6"
  • Rubber feet or DIN rail mount

Screwdrivers Need a quality screwdriver for your breakout boards? Winford sells Wiha screwdrivers!

Pricing and Ordering

Product # Description 1+ 10+ RoHS Buy Now
BRK78HDMF-S-DIN DB78HD Dual Breakout Board, Male-Female, Straight Connectors, DIN Rail Mount $95.50 $91.50  Yes
BRK78HDMF-S-FT DB78HD Dual Breakout Board, Male-Female, Straight Connectors, Feet $94.00 $90.00  Yes

BRK78HDMF-S-DIN
RoHS   Yes
DB78HD Dual Breakout Board, Male-Female, Straight Connectors, DIN Rail Mount
QuantityPrice
1+$95.50
10+$91.50
BRK78HDMF-S-FT
RoHS   Yes
DB78HD Dual Breakout Board, Male-Female, Straight Connectors, Feet
QuantityPrice
1+$94.00
10+$90.00

All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
