DB78HD Breakout Board

BRK78HDF-R-DIN

BRK78HDF-R-DIN
(click image to enlarge)
BRK78HDF-R-DIN
BRK78HDF-R-FT
BRK78HDF-R-FT (Overhead View)
BRK78HDM-R-DIN
BRK78HDM-R-FT
BRK78HDM-R-FT (Overhead View)
  • Available with DB78HD Male or Female connector
  • Perfect for prototyping DAQ and I/O board connections
  • Screw terminal for each of the 78 lines, plus shield
  • Rubber feet or DIN rail mount
See Also: More Breakout Boards,   78-Pin DSUB Cables,   DB78HD Breakout with Spring Terminals


General Description

Make connections quickly and reliably with this breakout board, which brings every pin of its DB78HD connector out to screw terminals. This product is available with both male and female connectors.

This breakout board is perfect for production applications as well as experimentation and prototype work. It is helpful for working with I/O cards, Data Aquisition (DAQ) devices, and other devices that use a DB-78HD connector.

Technically, the correct term for a DB78HD connector is DD78, but that term is not commonly used.

Need something different? We stock a variety of DB78HD breakout board styles and form factors. Please have a look!

A breakout board is sometimes referred to as a "transition module", "terminal board", "terminal block", "breakout box", "breakout adapter", "terminator", or "interface module".

Product Documents

Part #DescriptionData SheetPDF DrawingDWG DrawingIGES ModelSTEP Model
BRK78HDF-R-DINDB78HD Female, Right Angle, DIN MountPDF PDF DWG IGES CAD
BRK78HDF-R-FTDB78HD Female, Right Angle, Rubber FeetPDF PDF DWG IGES CAD
BRK78HDM-R-DINDB78HD Male, Right Angle, DIN MountPDF DWG IGES CAD
BRK78HDM-R-FTDB78HD Male, Right Angle, Rubber FeetPDF DWG IGES CAD
BRK78HDF-R-DIN

DB78HD Female, Right Angle, DIN Mount

PDF PDF DWG IGES CAD
BRK78HDF-R-FT

DB78HD Female, Right Angle, Rubber Feet

PDF PDF DWG IGES CAD
BRK78HDM-R-DIN

DB78HD Male, Right Angle, DIN Mount

PDF DWG IGES CAD
BRK78HDM-R-FT

DB78HD Male, Right Angle, Rubber Feet

PDF DWG IGES CAD

Mounting Options

These products are available in two different mounting variants. Product numbers ending with -DIN come with DIN clips already installed and ready to snap onto 35mm or 32mm DIN rail. Product numbers ending with -FT have stick-on rubber feet installed on the bottom side, allowing for benchtop use or panel mounting. For panel mounting, we suggest 1/4" nylon standoffs under the mounting holes, and #6 screws.

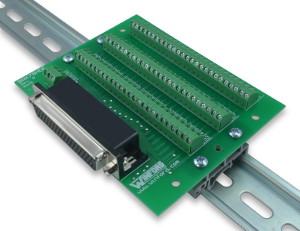

BRK78HDF-R-DIN
DIN Rail Mount
BRK78HDF-R-DIN
EnlargeClick image to enlarge.
Rail not included

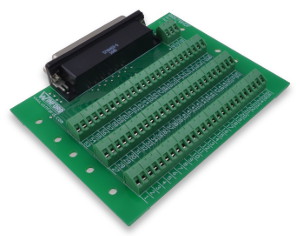

BRK78HDF-R-FT
Rubber Feet
BRK78HDF-R-FT
EnlargeClick image to enlarge.

Cables

Winford Engineering offers 78-pin DSUB cables (shown below) which are compatible with these breakout boards. Several lengths/connector configurations are available.
EXT78HDMV1-5
DB78 Cable
(EXT78HDMV1-5 pictured)
EnlargeClick image to enlarge.

Product Details

  • DB78HD (high density, four row) connector
  • Screw terminal for each of the 78 lines, plus shield
  • Screw terminals accomodate wire sizes from 16AWG to 26AWG
  • Approximate dimensions: 3.6" x 4.6"
  • Rubber feet or DIN rail mount

Screwdrivers Need a quality screwdriver for your breakout boards? Winford sells Wiha screwdrivers!

Pricing and Ordering

Product # Description 1+ 10+ RoHS Buy Now
DB78HD Female Right Angle Connector:
BRK78HDF-R-DIN DB78HD Female Breakout Board, R/A Connector, DIN Rail Mount $84.50 $79.50  Yes
BRK78HDF-R-FT DB78HD Female Breakout Board, R/A Connector, Feet $83.00 $78.00  Yes
DB78HD Male Right Angle Connector:
BRK78HDM-R-DIN DB78HD Male Breakout Board, R/A Connector, DIN Rail Mount $84.50 $79.50  Yes
BRK78HDM-R-FT DB78HD Male Breakout Board, R/A Connector, Feet $83.00 $78.00  Yes

DB78HD Female Right Angle Connector:
BRK78HDF-R-DIN
RoHS   Yes
DB78HD Female Breakout Board, R/A Connector, DIN Rail Mount
QuantityPrice
1+$84.50
10+$79.50
BRK78HDF-R-FT
RoHS   Yes
DB78HD Female Breakout Board, R/A Connector, Feet
QuantityPrice
1+$83.00
10+$78.00
DB78HD Male Right Angle Connector:
BRK78HDM-R-DIN
RoHS   Yes
DB78HD Male Breakout Board, R/A Connector, DIN Rail Mount
QuantityPrice
1+$84.50
10+$79.50
BRK78HDM-R-FT
RoHS   Yes
DB78HD Male Breakout Board, R/A Connector, Feet
QuantityPrice
1+$83.00
10+$78.00

All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
