2x17 2mm Header Breakout Board: BRK2H2X17

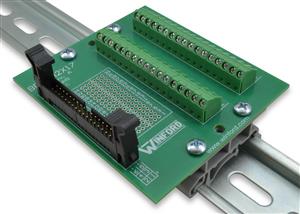

BRK2H2X17-L-DIN

BRK2H2X17-L-DIN
(click image to enlarge)
BRK2H2X17-L-DIN
BRK2H2X17-L-FT
BRK2H2X17-L-FT (Overhead View)
  • Dual row 2mm spaced male pin header
  • 34 Pins (2 x 17) 2mm pitch
  • Screw terminal for each of the 34 lines
  • Solder pad connection space for all 34 lines
  • Supports addition of 2mm spaced pin headers
  • Rubber feet or DIN rail mount
See Also: More Breakout Boards,   2X17 0.1" Header Breakout Board


General Description

Make connections quickly and reliably with this breakout board, which brings every pin of its male dual row header connector out to screw terminals. The header connector has pins spaced at 2mm pitch.

Each pin is also brought to solder pads (3 per pin) at 2mm spacing, allowing easy addition of pin headers or other components. Please note that the breakout boards are manufactured with a connection between each connector pin and the corresponding terminal block position; no soldering of any type is necessary. The solder pads simply provide an area for making optional connections to additional headers or other components.

The header connector on this breakout board comes standard with long ejector latches. "Long ejectors" indicates that the ejectors are the correct length to accomodate IDC connectors with strain reliefs installed.

This breakout board is perfect for production applications as well as experimentation and prototype work. It is well-suited for interfacing with microcontroller programming circuits, I/O ports, DAQ equipment, and any other device that uses a 2x17 34-position, 2mm pitch header.

A dual row header is sometimes referred to as an "IDC Header", "IDC connector", or "ribbon cable connector". A breakout board is sometimes referred to as a "transition module", "terminal board", "terminal block", "breakout box", "breakout adapter", "terminator", or "interface module".

Product Documents

Part #DescriptionPDF DrawingDWG DrawingIGES ModelSTEP Model
BRK2H2X17-L-DIN2x17 2mm Dual Row Header, DIN MountPDF DWG IGES CAD
BRK2H2X17-L-FT2x17 2mm Dual Row Header, Rubber FeetPDF DWG IGES CAD
BRK2H2X17-L-DIN

2x17 2mm Dual Row Header, DIN Mount

PDF DWG IGES CAD
BRK2H2X17-L-FT

2x17 2mm Dual Row Header, Rubber Feet

PDF DWG IGES CAD

Mounting Options

These products are available in two different mounting variants. Product numbers ending with -DIN come with DIN clips already installed and ready to snap onto 35mm or 32mm DIN rail. Product numbers ending with -FT have stick-on rubber feet installed on the bottom side, allowing for benchtop use or panel mounting. For panel mounting, we suggest 1/4" nylon standoffs under the mounting holes, and #6 screws.

Product Details

  • Dual row 2mm spaced male pin header
  • 34 Pins (2 x 17) 2mm pitch
  • Screw terminal for each of the 34 lines
  • Solder pad connection holes, three (3) per pin
  • Supports addition of 2mm spaced pin headers
  • Screw terminals accommodate wire sizes from 16AWG to 26AWG
  • Approximate dimensions: 2.875" x 3.2"
  • Rubber feet or DIN rail mount

Screwdrivers Need a quality screwdriver for your breakout boards? Winford sells Wiha screwdrivers!

Pricing and Ordering

Product # Description 1+ 10+ RoHS Buy Now
BRK2H2X17-L-DIN 2x17 (34 pins) 2mm Dual Row Header Breakout Board, Long Ejectors, DIN Rail Mount $29.50 $27.50  Yes
BRK2H2X17-L-FT 2x17 (34 pins) 2mm Dual Row Header Breakout Board, Long Ejectors, Feet $28.00 $26.00  Yes

BRK2H2X17-L-DIN
RoHS   Yes
2x17 (34 pins) 2mm Dual Row Header Breakout Board, Long Ejectors, DIN Rail Mount
QuantityPrice
1+$29.50
10+$27.50
BRK2H2X17-L-FT
RoHS   Yes
2x17 (34 pins) 2mm Dual Row Header Breakout Board, Long Ejectors, Feet
QuantityPrice
1+$28.00
10+$26.00

All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
