This breakout board contains a 20-pin dual row male header with 2mm pin spacing. Each of the 20 connector pins is brought out to screw terminal blocks, allowing connections to be made easily. Each pin is also brought to solder pads (3 per pin) at 2mm spacing, allowing easy addition of 2mm pin headers or other components. Please note that the breakout boards are manufactured with a connection between each connector pin and the corresponding terminal block position; no soldering of any type is necessary. The solder pads simply provide an area for making optional connections to additional headers or other components.
This break out board is perfect for production applications as well as experimentation and prototype work. It is well-suited for interfacing with microcontroller programming circuits, I/O ports, DAQ equipment, and any other device that uses a 2x10 20-position header with 2mm pitch pin spacing. The header on this breakout board comes with long ejector latches installed. "Long ejectors" indicates that the ejectors are the correct length to accomodate typical IDC connectors with strain reliefs installed.
A dual row header is sometimes referred to as an "IDC Header", "IDC connector", or "ribbon cable connector". A breakout board is sometimes referred to as a "transition module", "terminal board", "terminal block", "breakout box", "breakout adapter", "terminator", or "interface module".
|Part #||Description||PDF Drawing||DWG Drawing||IGES Model||STEP Model|

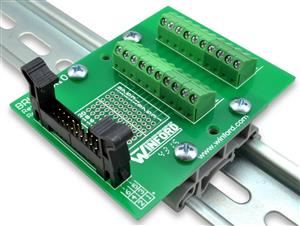

|BRK2H2X10-L-DIN||2x10 2mm Dual Row Header, DIN Mount|
|BRK2H2X10-L-FT||2x10 2mm Dual Row Header, Rubber Feet|
|Need a quality screwdriver for your breakout boards? Winford sells Wiha screwdrivers!|
Pricing and Ordering
|Product #||Description||1+||10+||25+||RoHS||Buy Now|
|BRK2H2X10-L-DIN||2x10 (20 pins) 2mm Dual Row Header Breakout Board, Long Ejectors, DIN Rail Mount||$18.50||$17.60||$17.60||Yes|
|BRK2H2X10-L-FT||2x10 (20 pins) 2mm Dual Row Header Breakout Board, Long Ejectors, Feet||$17.00||$16.10||$15.60||Yes|
All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
