DB25 Dual Breakout Boards


BRK25MF-S-DIN
(click image to enlarge)
  • Both DB25 Male and Female connectors
  • Easily insert inline, for tapping into I/O signals
  • Screw terminal for each of the 25 lines, plus shield
  • Solder pad connection space for all 25 lines, plus shield
  • Supports addition of .1" pin headers
  • Rubber feet or DIN rail mount

Scroll to Buy

Custom Products

See Also: DB25 Slim Breakout Board,   Single DB25 Breakout Board,   More Breakout Boards,   DB25 Breadboard Adapters,   DB25 Cables


General Description

These breakout boards feature two DB25 connectors (one male, one female) wired 1:1 and all pins brought out to screw terminals for easy connection. Having two connectors allows the board to be easily inserted "in-line" with an existing connection, allowing signals to pass through while being monitored, or to work with "daisy-chained" equipment. Each pin is also brought to solder pads (4 per pin) at 0.1" spacing, allowing easy addition of standard pin headers. Please note that the breakout boards are manufactured with a connection between each connector pin and the corresponding terminal block position; no soldering of any type is necessary. The solder pads simply provide an area for making optional connections to additional headers or other components.

These break out boards are perfect for experimentation and prototype work, as well as for use in the educational laboratory. These boards are useful in working with National Instruments data aquisition cards, CNC equipment, and any other device that utilizes a DB25 connector. A breakout board is sometimes referred to as a "transition module", "terminal board", "terminal block", "breakout box", "breakout adapter", "terminator", or "interface module".

Product Documents

Part # DescriptionData SheetIGES ModelSTEP Model
BRK25MF-S-DINDB25 Dual, Straight, DIN Mount
BRK25MF-S-FTDB25 Dual, Straight, Rubber Feet
BRK25MF-S-DIN
DB25 Dual, Straight, DIN Mount
BRK25MF-S-FT
DB25 Dual, Straight, Rubber Feet

Mounting Options

These products are available in two different mounting variants. Product numbers ending with -DIN come with DIN clips already installed and ready to snap onto 35mm or 32mm DIN rail. Product numbers ending with -FT have stick-on rubber feet installed on the bottom side, allowing for benchtop use or panel mounting. For panel mounting, we suggest 1/4" nylon standoffs under the mounting holes, and #6 screws.

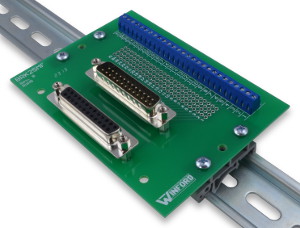

BRK25MF-S-DIN
DIN Rail Mount
BRK25MF-S-DIN
Click image to enlarge.
Rail not included

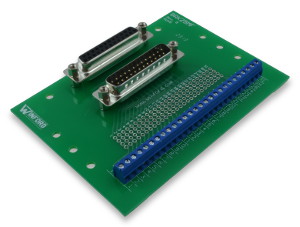

BRK25MF-S-FT
Rubber Feet
BRK25MF-S-FT
Click image to enlarge.

Product Details

  • Male and Female connected in parallel with each other and screw terminals
  • Screw terminal for each of the 25 lines, plus shield
  • Solder pad connection holes, four (4) per line
  • Supports addition of .1" pin headers
  • Screw terminals accomodate wire sizes from 16AWG to 26AWG
  • Approximate dimensions: 3.28" x 4.5"
  • Rubber feet or DIN rail mount

Need a quality screwdriver for your breakout boards? Winford sells Wiha screwdrivers!

Pricing and Ordering

Product # Description 1+ 10+ RoHS Buy Now
BRK25MF-S-DIN DB25 Dual Breakout Board, Male-Female, Straight Connectors, DIN Rail Mount $29.00 $27.50 Yes
BRK25MF-S-FT DB25 Dual Breakout Board, Male-Female, Straight Connectors, Feet $27.50 $26.00 Yes
BRK25MF-S-DIN
DB25 Dual Breakout Board, Male-Female, Straight Connectors, DIN Rail Mount
RoHS: Yes
Buy Now:
QuantityPrice
1+$29.00
10+$27.50
BRK25MF-S-FT
DB25 Dual Breakout Board, Male-Female, Straight Connectors, Feet
RoHS: Yes
Buy Now:
QuantityPrice
1+$27.50
10+$26.00

All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
